Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Brakes and Traction Control >> Parking Brake System >> Adjustments >> AP42.20-P-4262R Adjusting Cable Slack Adjuster

AP42.20-P-4262R Adjusting Cable Slack Adjuster

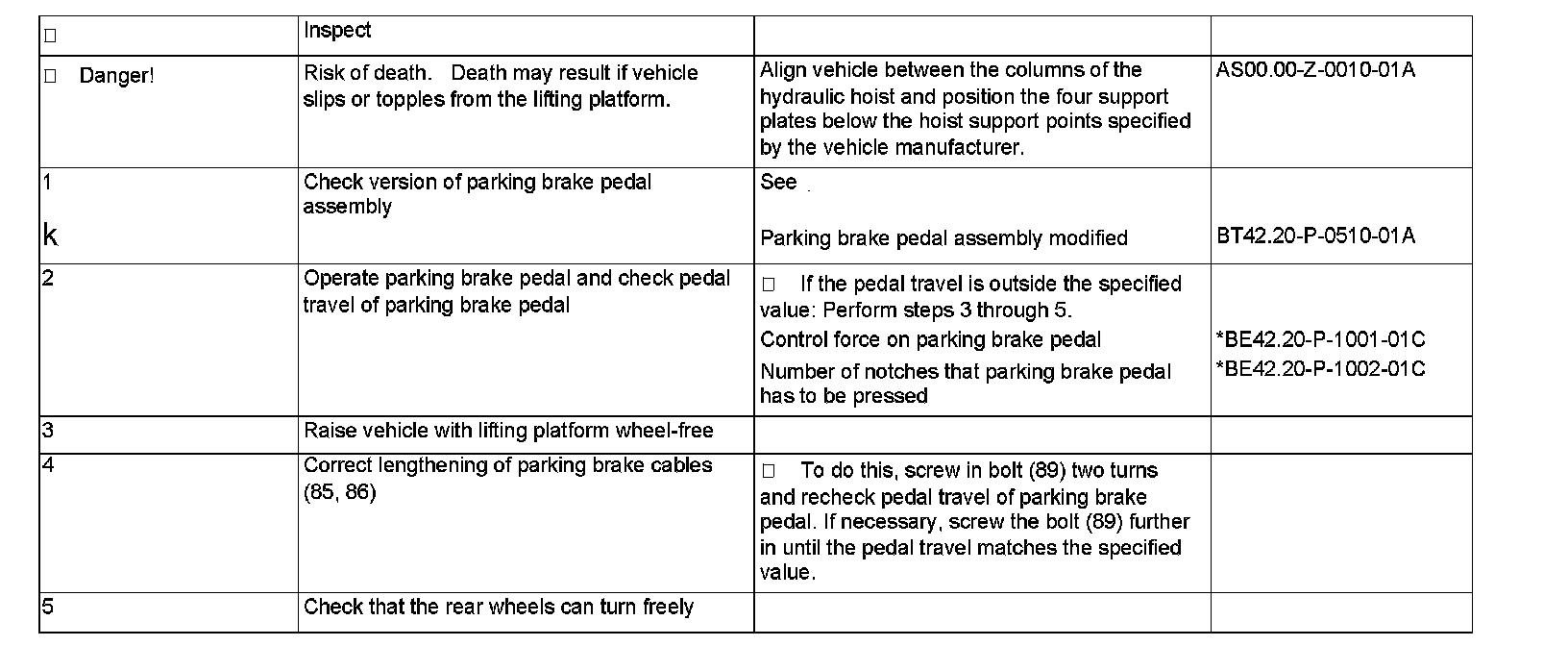

Parking brake - adjusting cable slack adjuster
