AR42.10-P-0300RBS Remove/Install Master Brake Cylinder



AR42.10-P-0300RBS Remove/install master brake cylinder
- with CODE (P99) Special model "AMG Black Series"

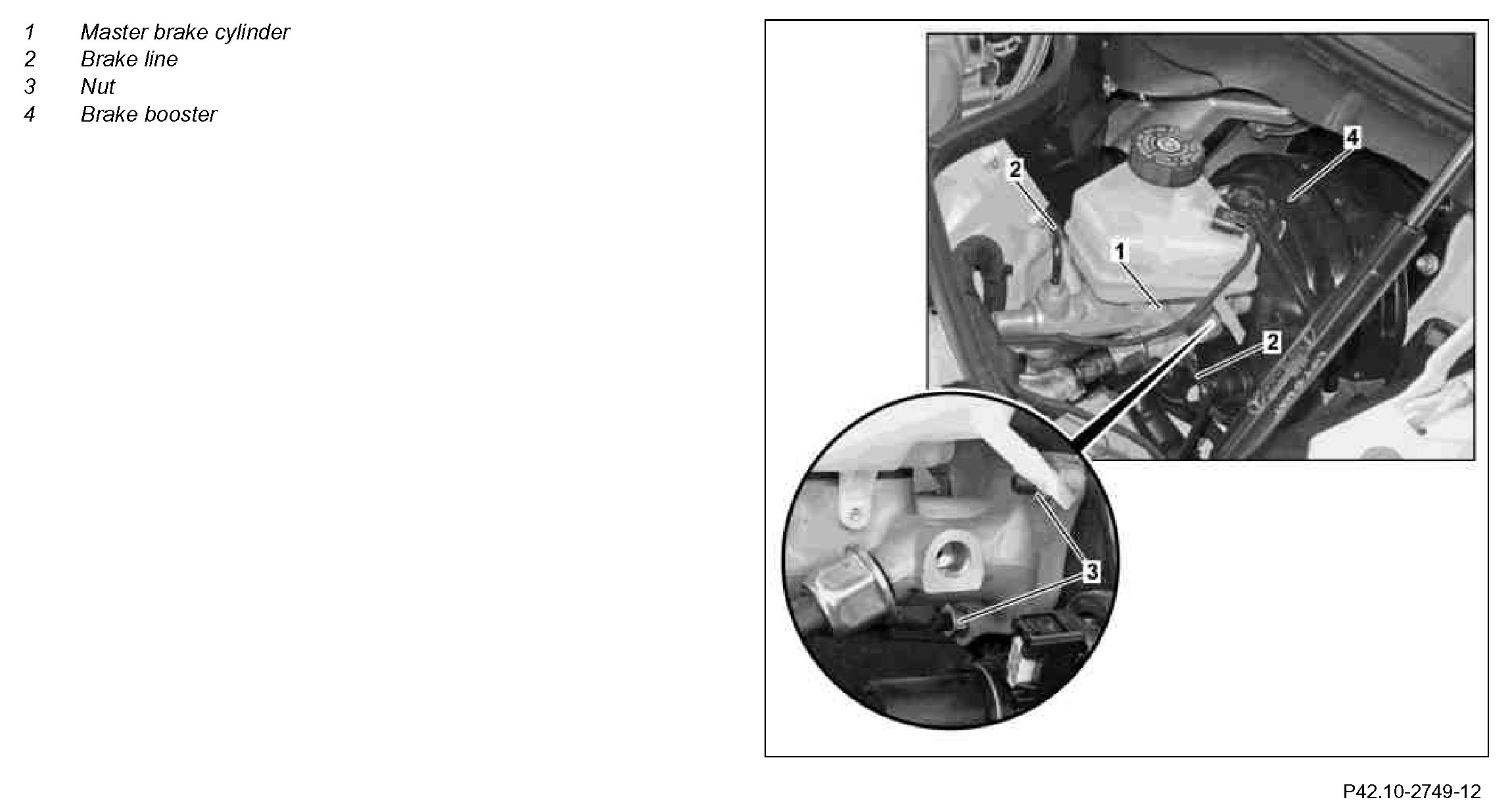

Component Identification:

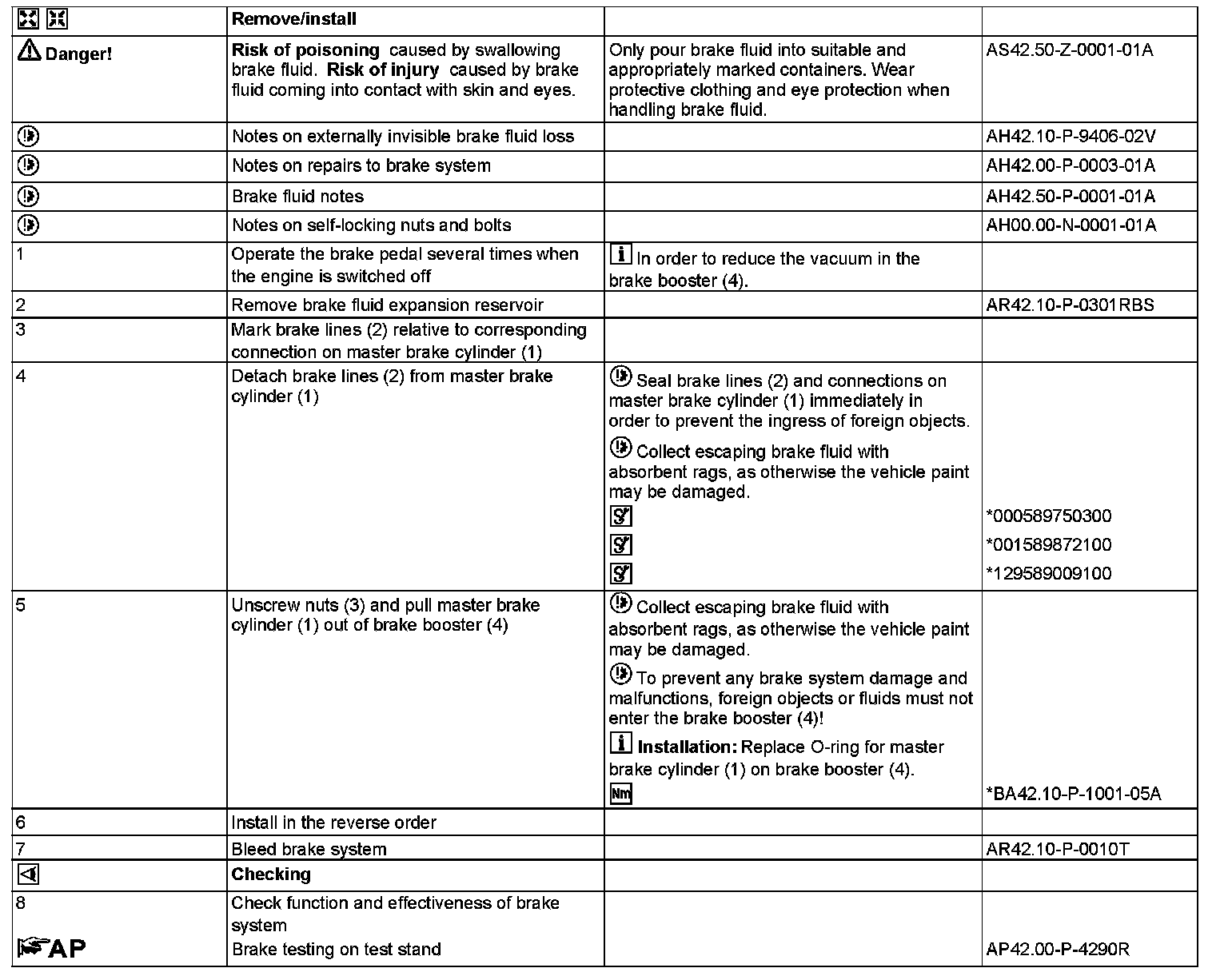

Steps 1-8:

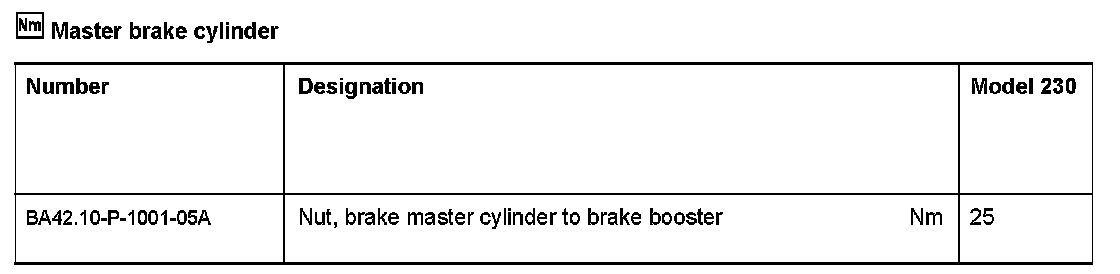

Master Brake Cylinder:

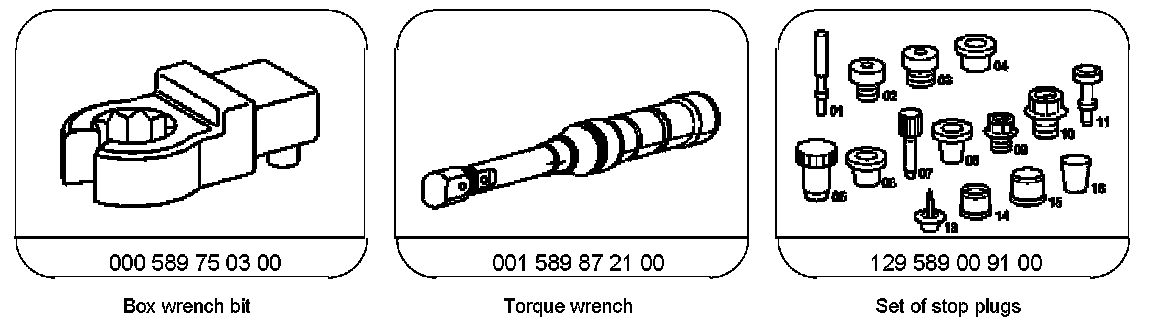

Special Tools:
