AR42.10-P-0013R Replace Brake Hoses
AR42.10-P-0013R Replace Brake Hoses

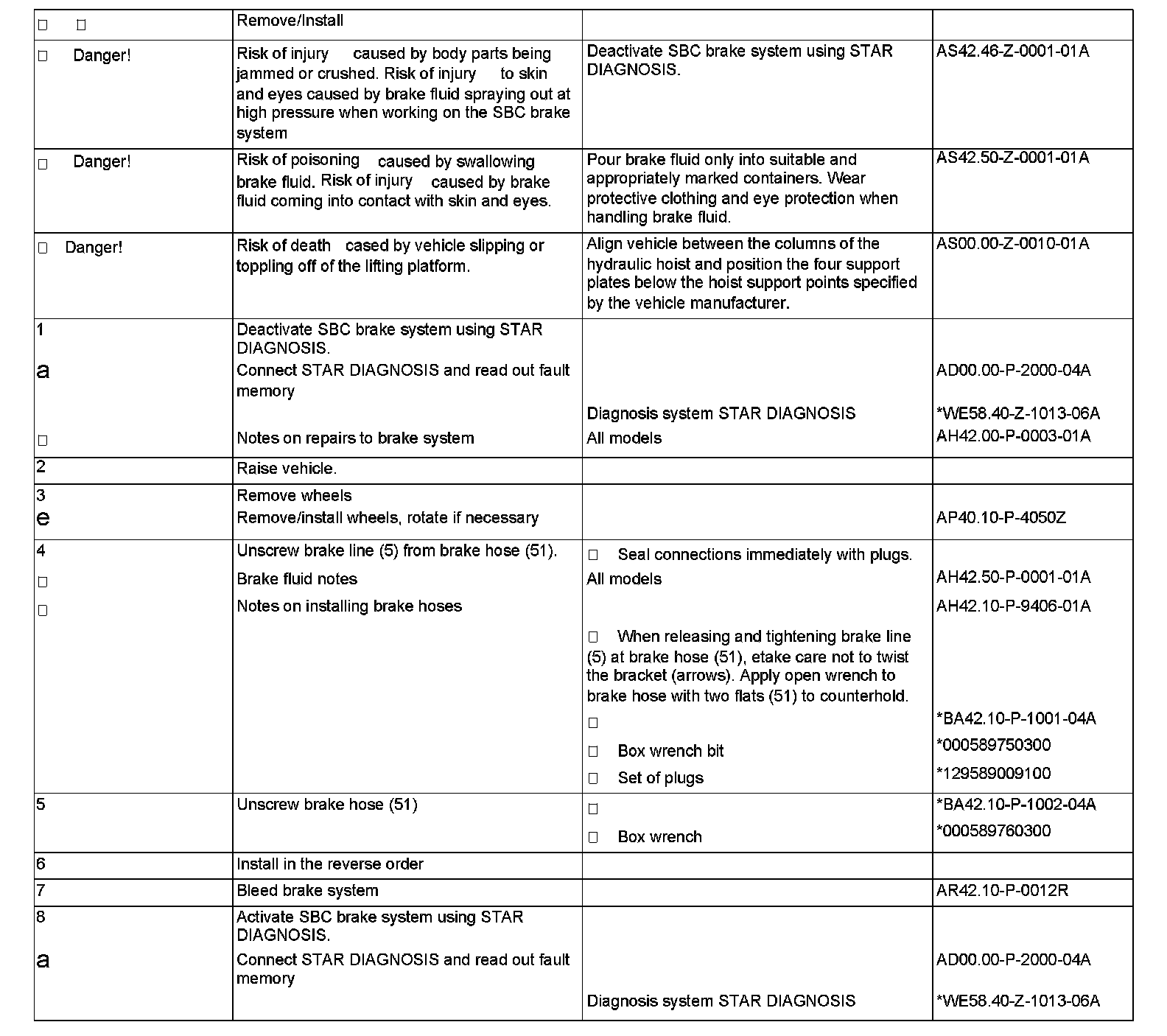

Replace brake hoses

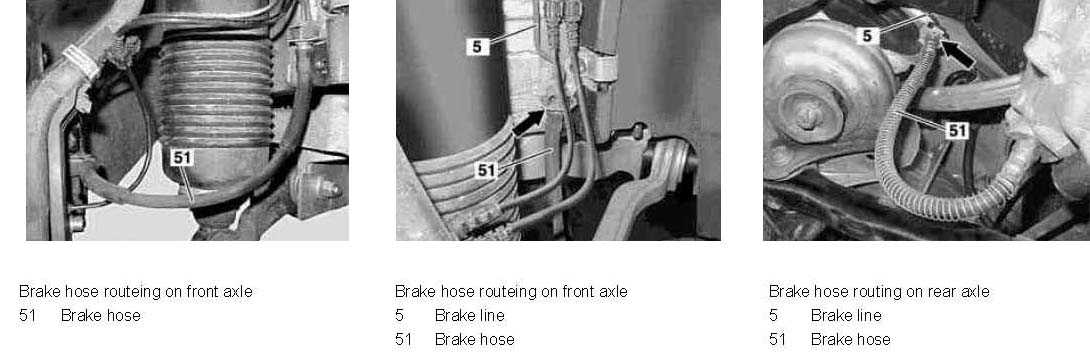

Brake hose routing on front axle:
