FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2009
>>
SL 65 AMG (230.479) V12-6.0L Turbo (275.981)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Disc Brake System
>>
Brake Rotor/Disc
>>
Testing and Inspection
Brake Rotor/Disc: Testing and Inspection
AP42.10-P-4258R Inspect condition of brake disks

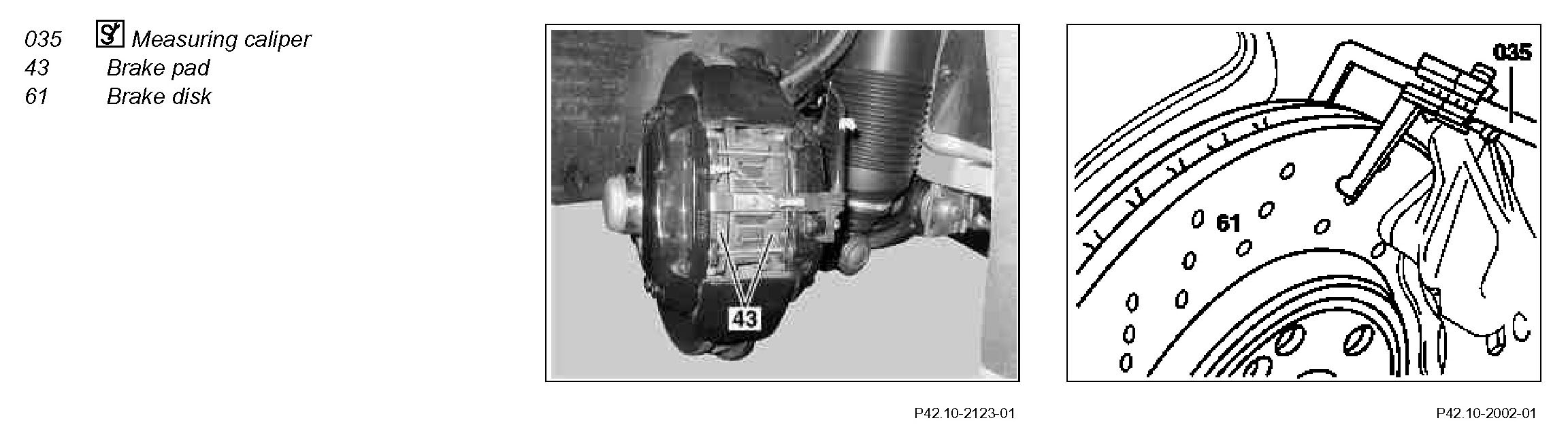

Component Identification:
Component Identification:

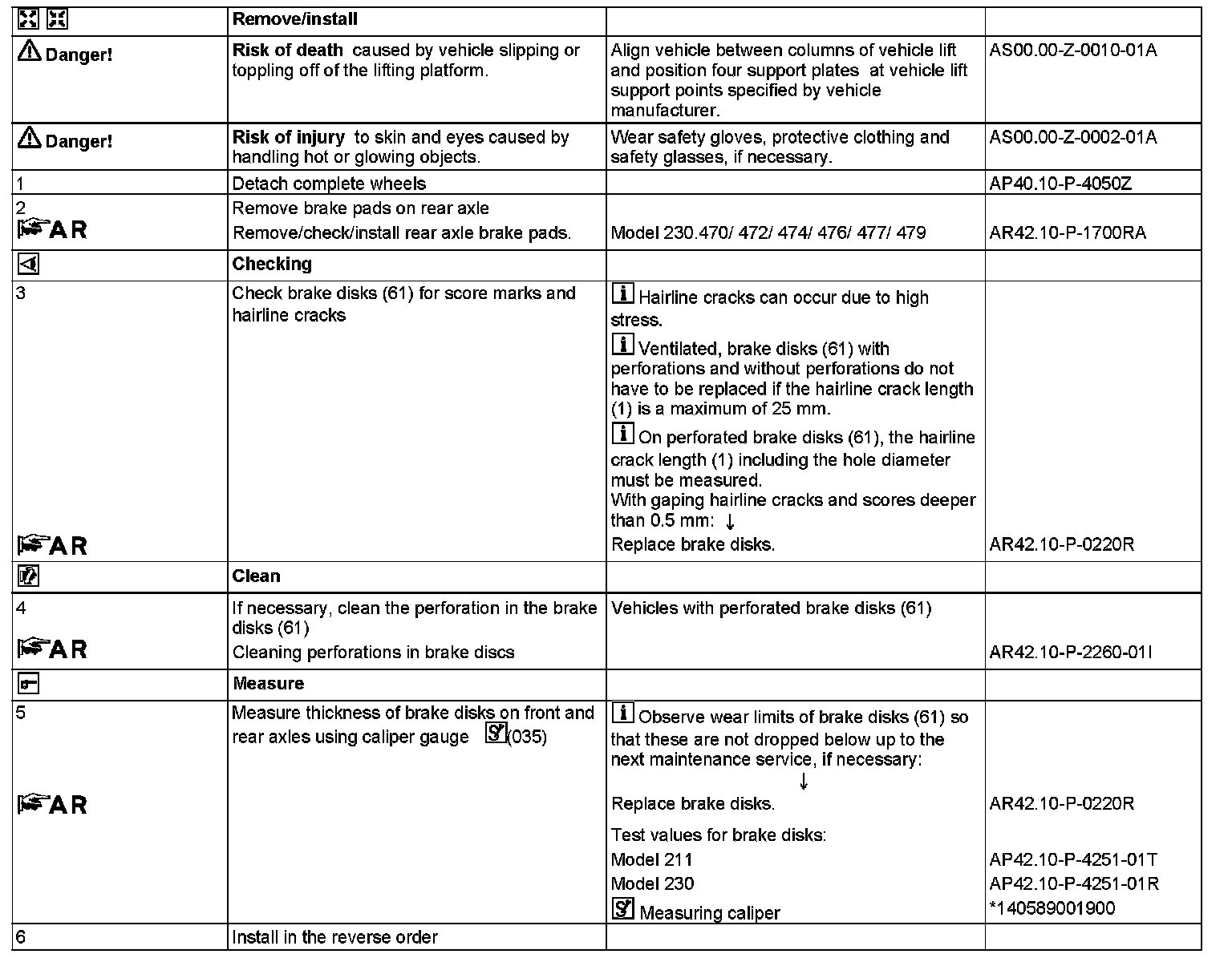

Steps 1-6:

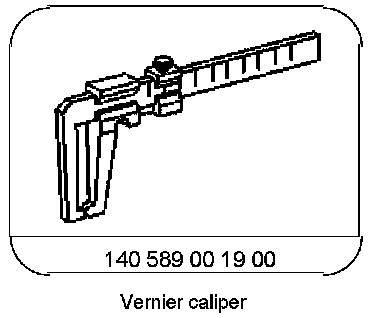

Special Tools:
