Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Body and Frame >> Spoilers, Flaps, and Air Dams >> Spoiler >> Description and Operation >> GF88.50-P-0008-01RIT Rear Wing, Location of Components

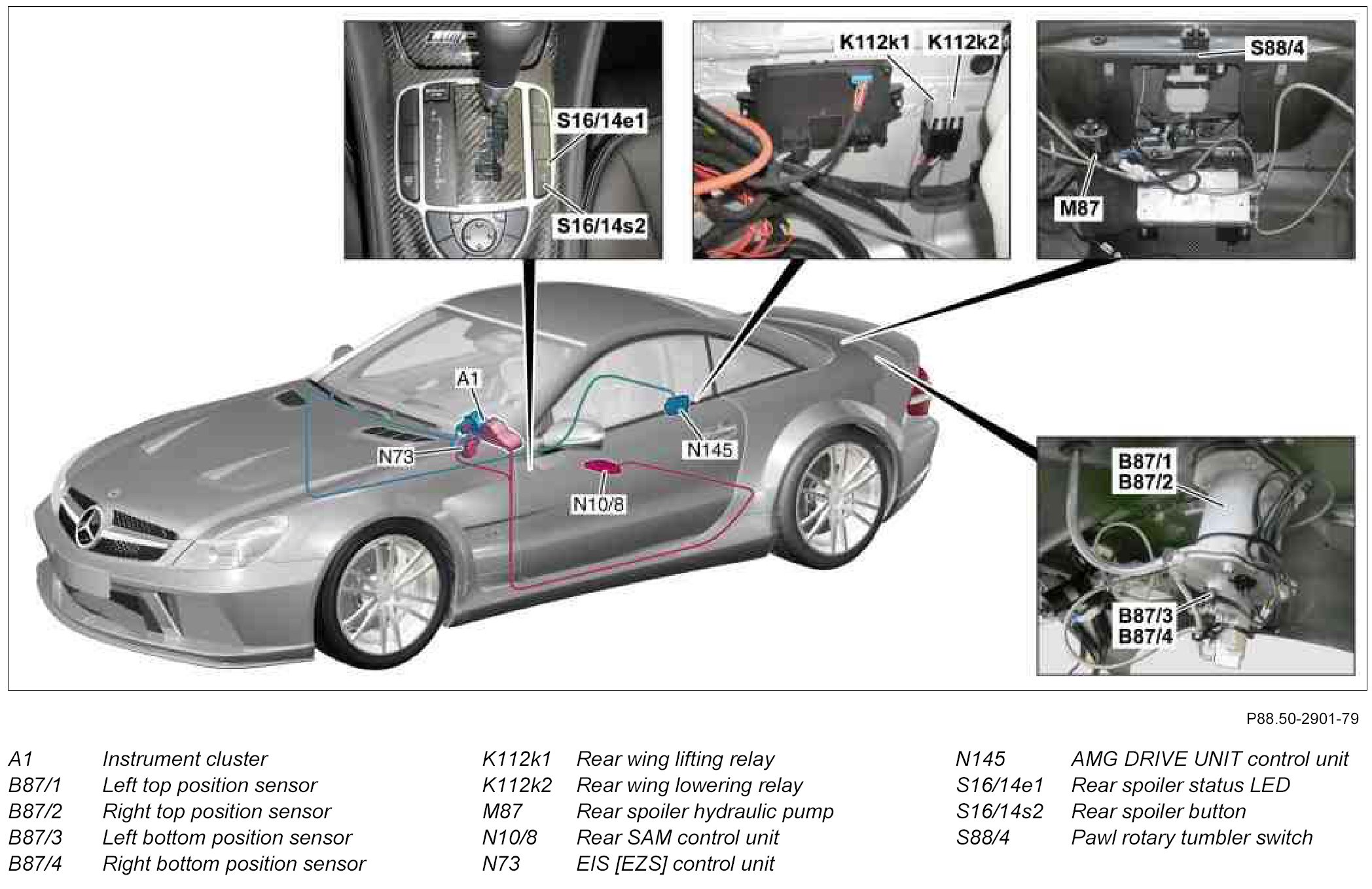

GF88.50-P-0008-01RIT Rear Wing, Location of Components



GF88.50-P-0008-01RIT Rear Wing, Location Of Components
- with CODE (P99) Special model "AMG Black Series"


Component Identification:
