Seat Back Frame: Service and Repair

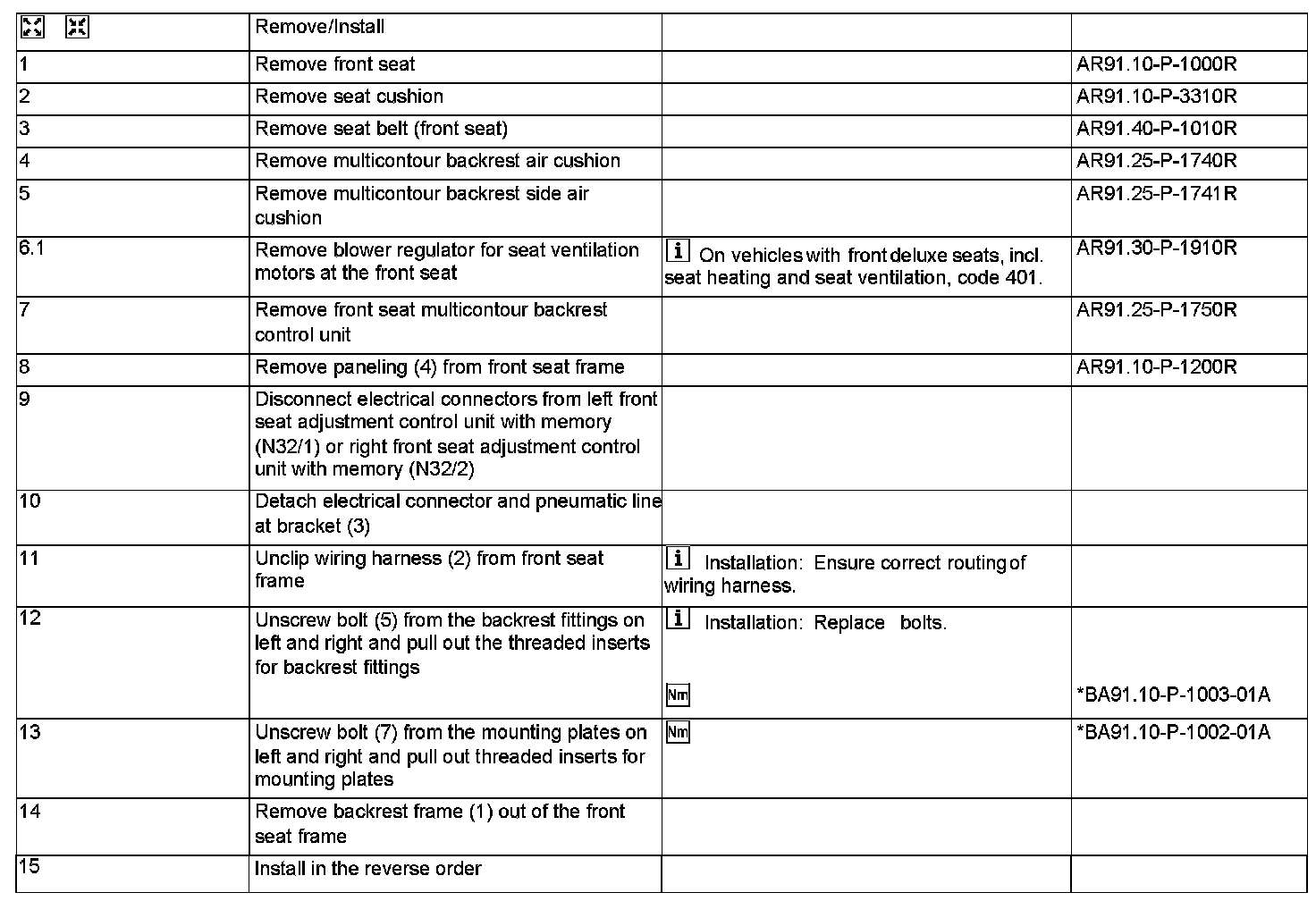

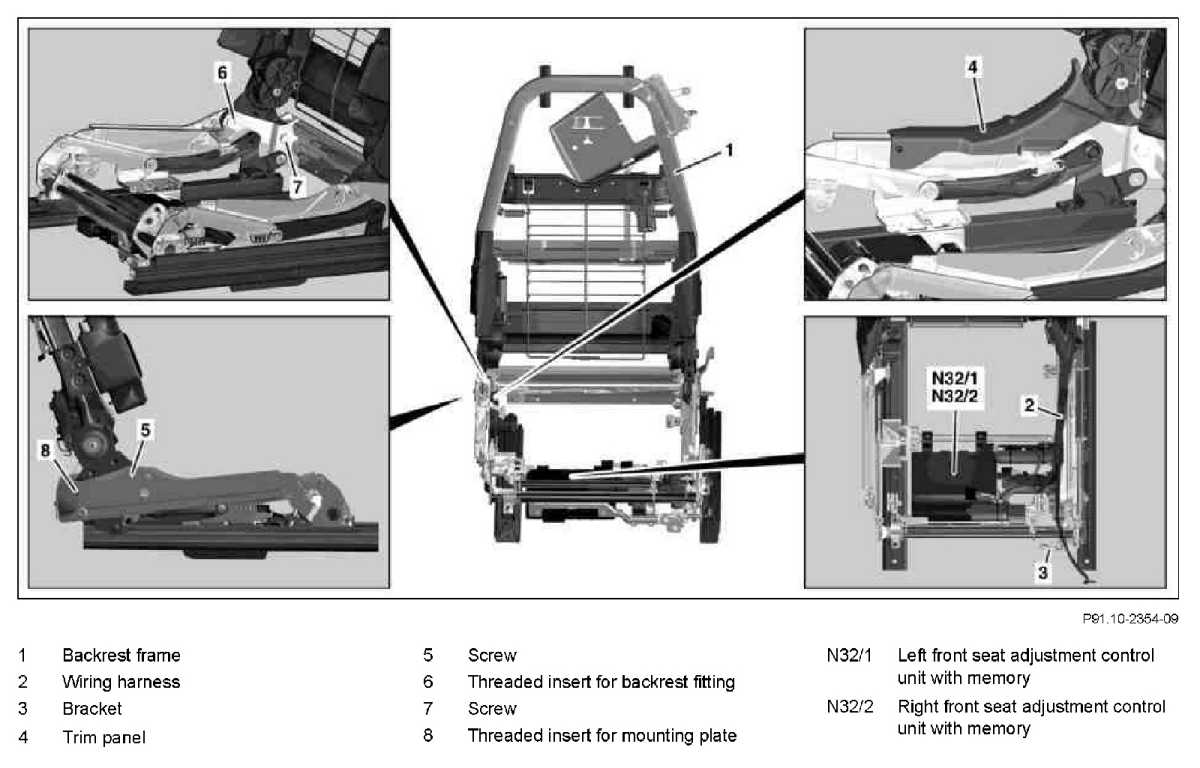

AR91.10-P-3331R Remove/Install Front Seat Backrest Frame
- with CODE (404) Left multi-contour seat
- with CODE (405) Right multi-contour seat

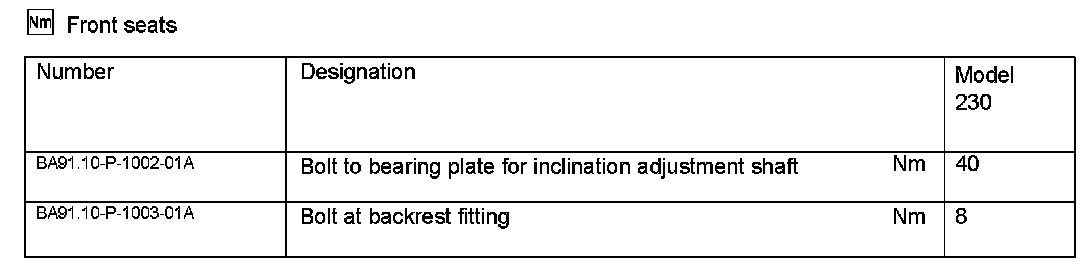

Front Seats:
