Mercedes Benz
>>
2009
>>
SL 65 AMG (230.479) V12-6.0L Turbo (275.981)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Seat Air Line
>>
Diagrams
Seat Air Line: Diagrams
AR91.25-P-1750-01R Multi-contour Backrest Control Unit Pinout Diagrams
- with CODE (404) Left multi-contour seat
- with CODE (405) Right multi-contour seat

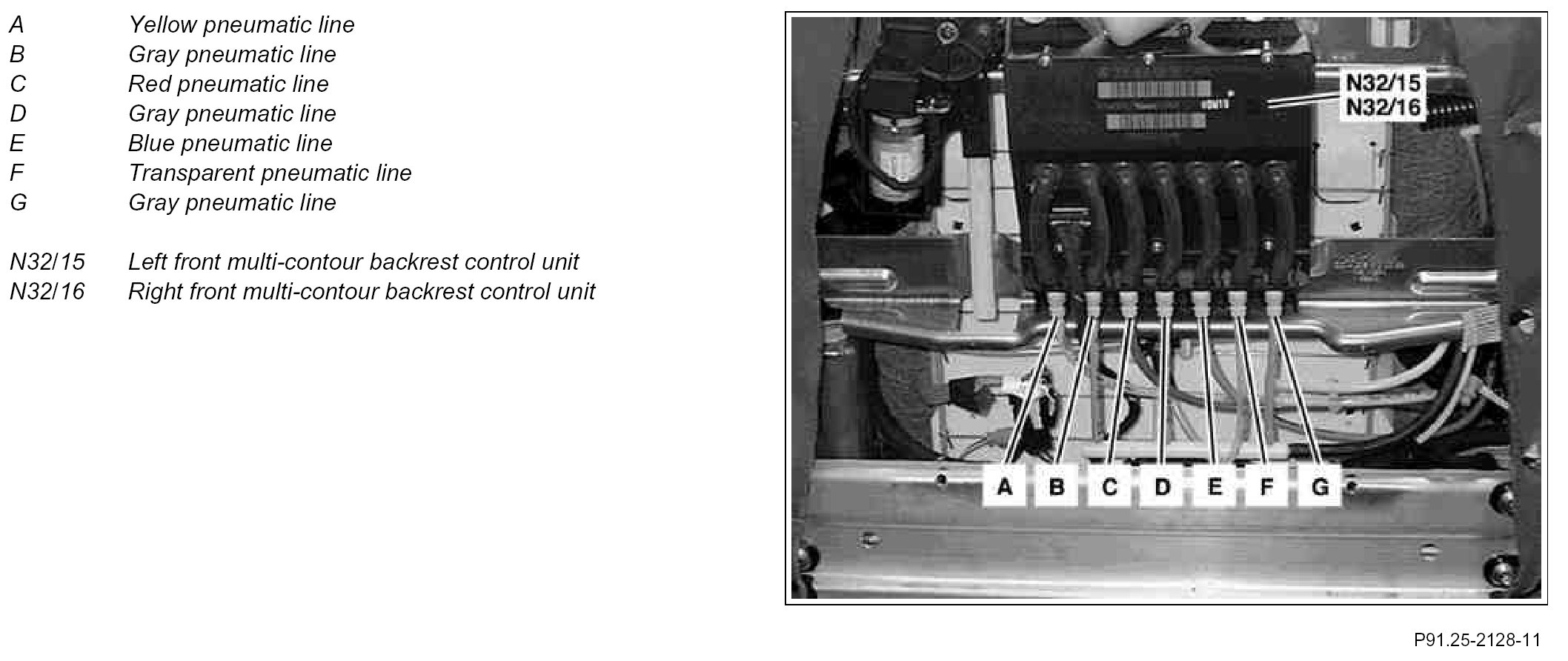

Component Identification:
