AR91.16-P-0040RA Remove/Install Head Restraint on Front Seat



AR91.16-P-0040RA Remove/Install Head Restraint On Front Seat
- with CODE (403) Airscarf system

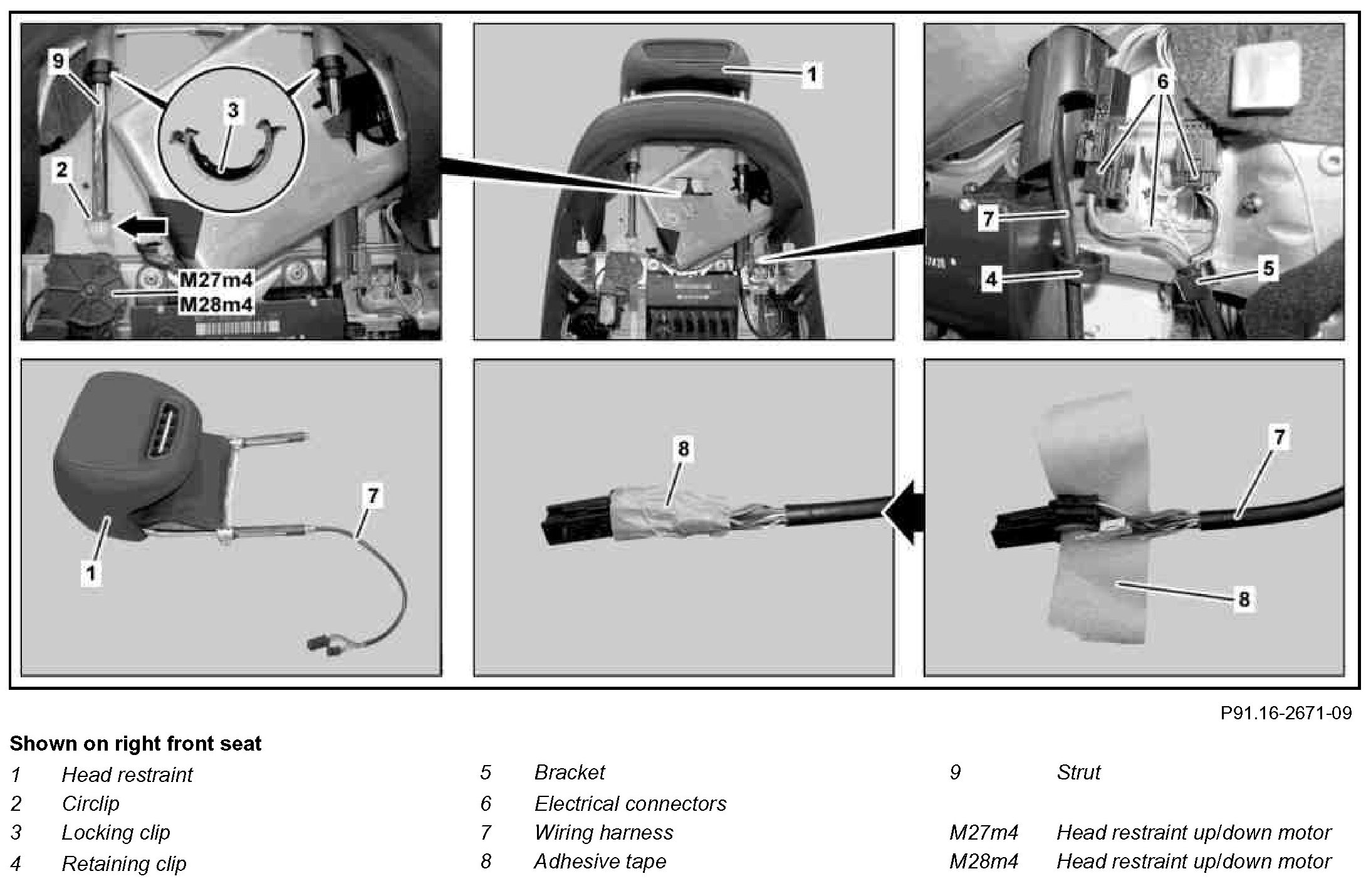

Component Identification:

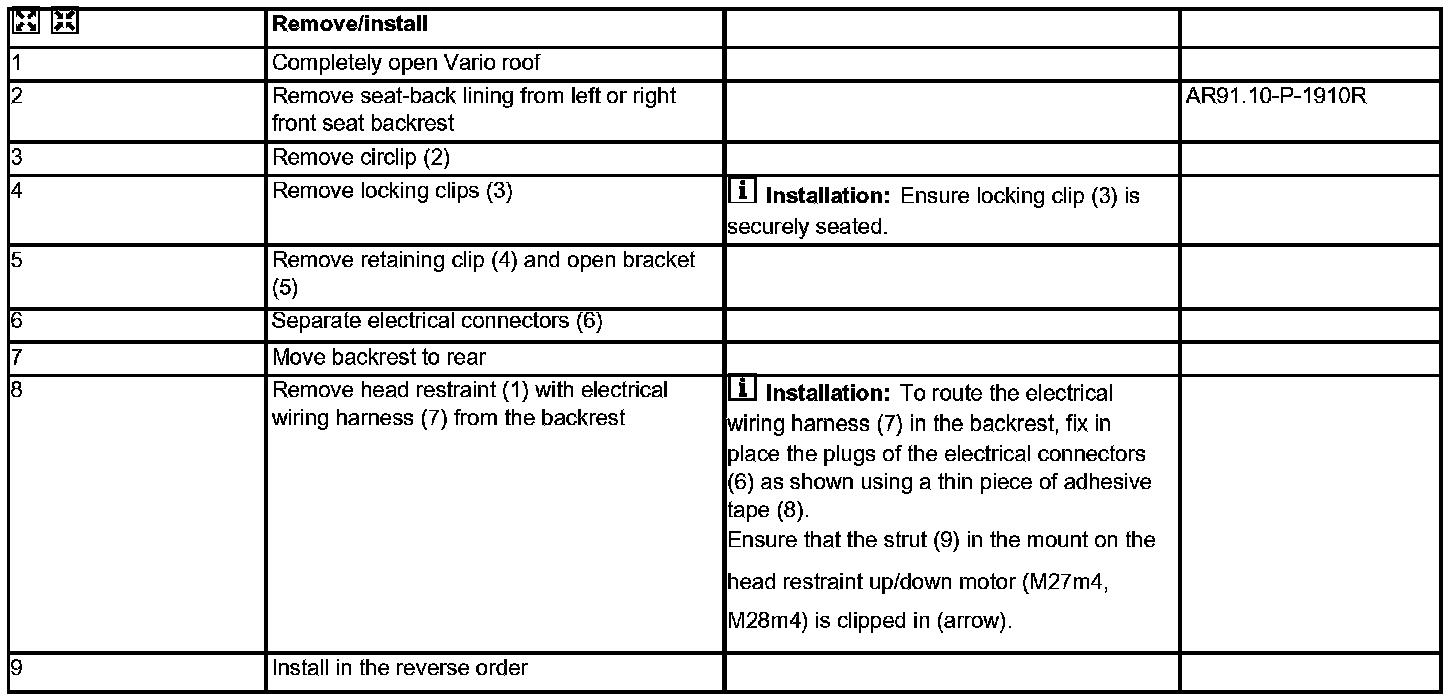

Steps 1 - 9:
