PE91.30-P-2053KA Seat Ventilation Electrical Function Schematic

Seat Ventilation Electrical Function Schematic PE91.30-P-2053KA
- with CODE (401) Front comfort seats, incl. seat heating and seat ventilation
- refinement package
- as of model year 2009

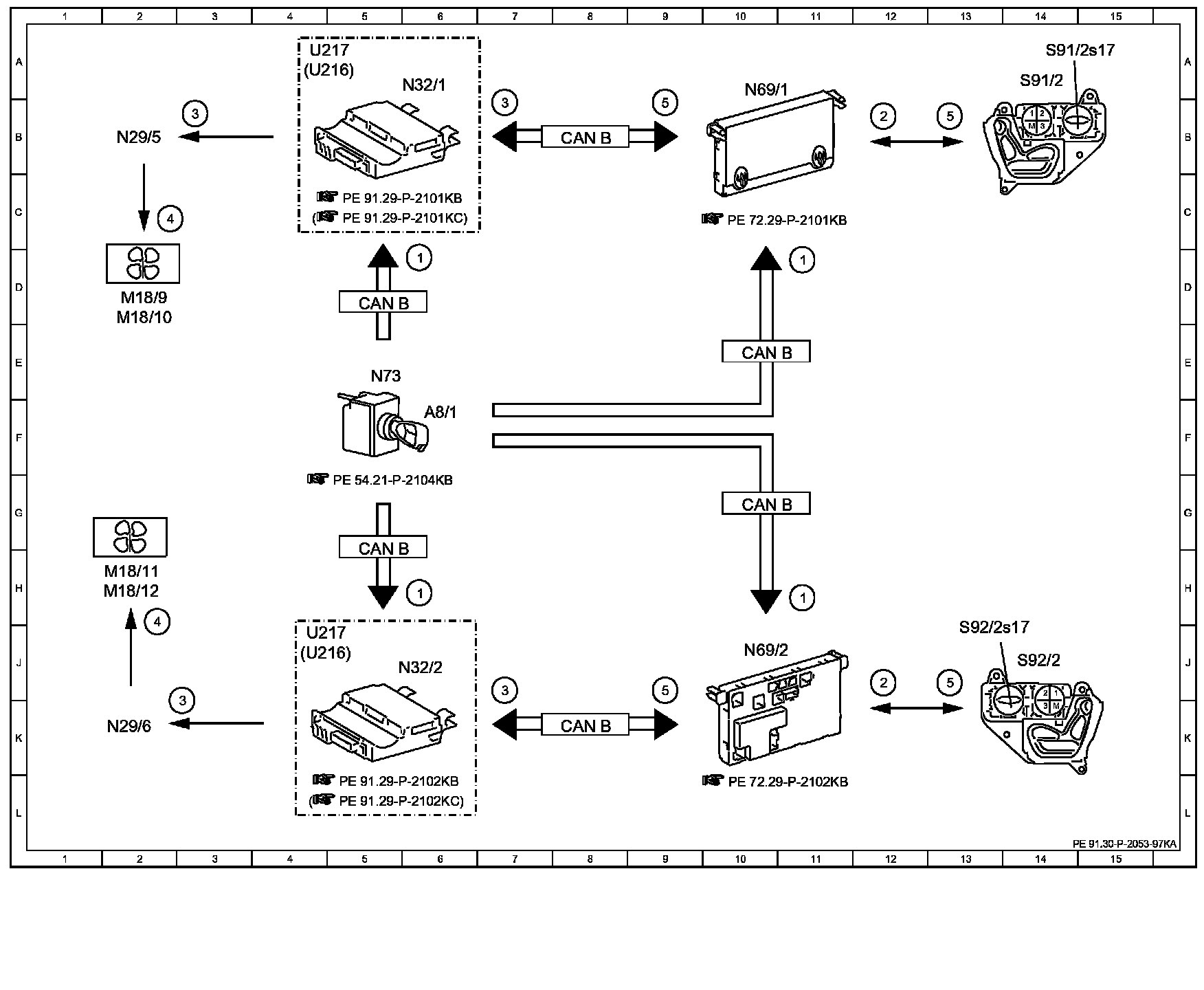

Function Diagram:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
