PE91.29-P-2101KB Wiring Diagram Left Front Seat Control Unit

Wiring Diagram Left Front Seat Control Unit PE91.29-P-2101KB
- except CODE (P99) Special model "AMG Black Series"
- control unit N32/1
- refinement package
- as of model year 2009

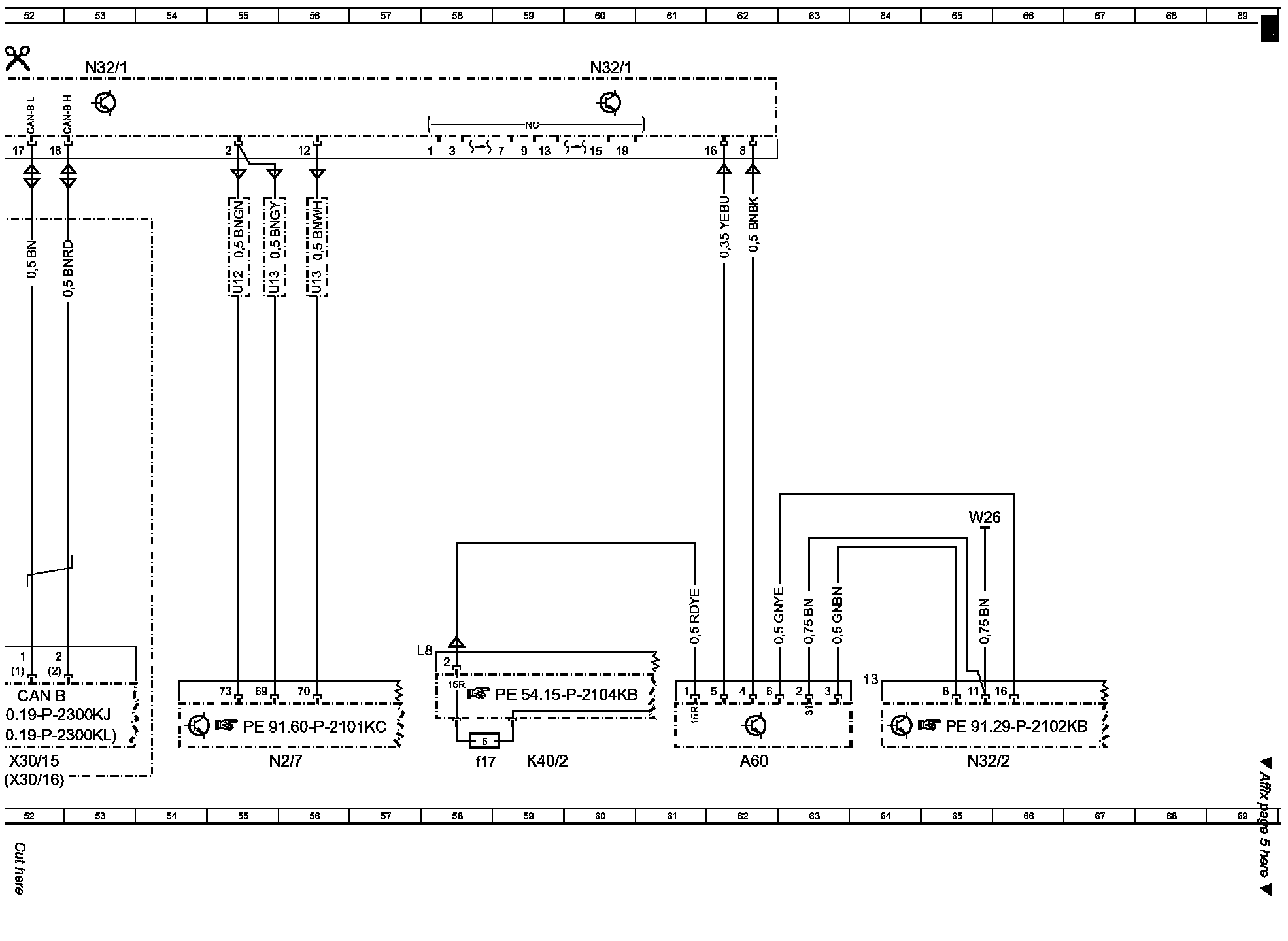

Wiring Diagram (Part 1):

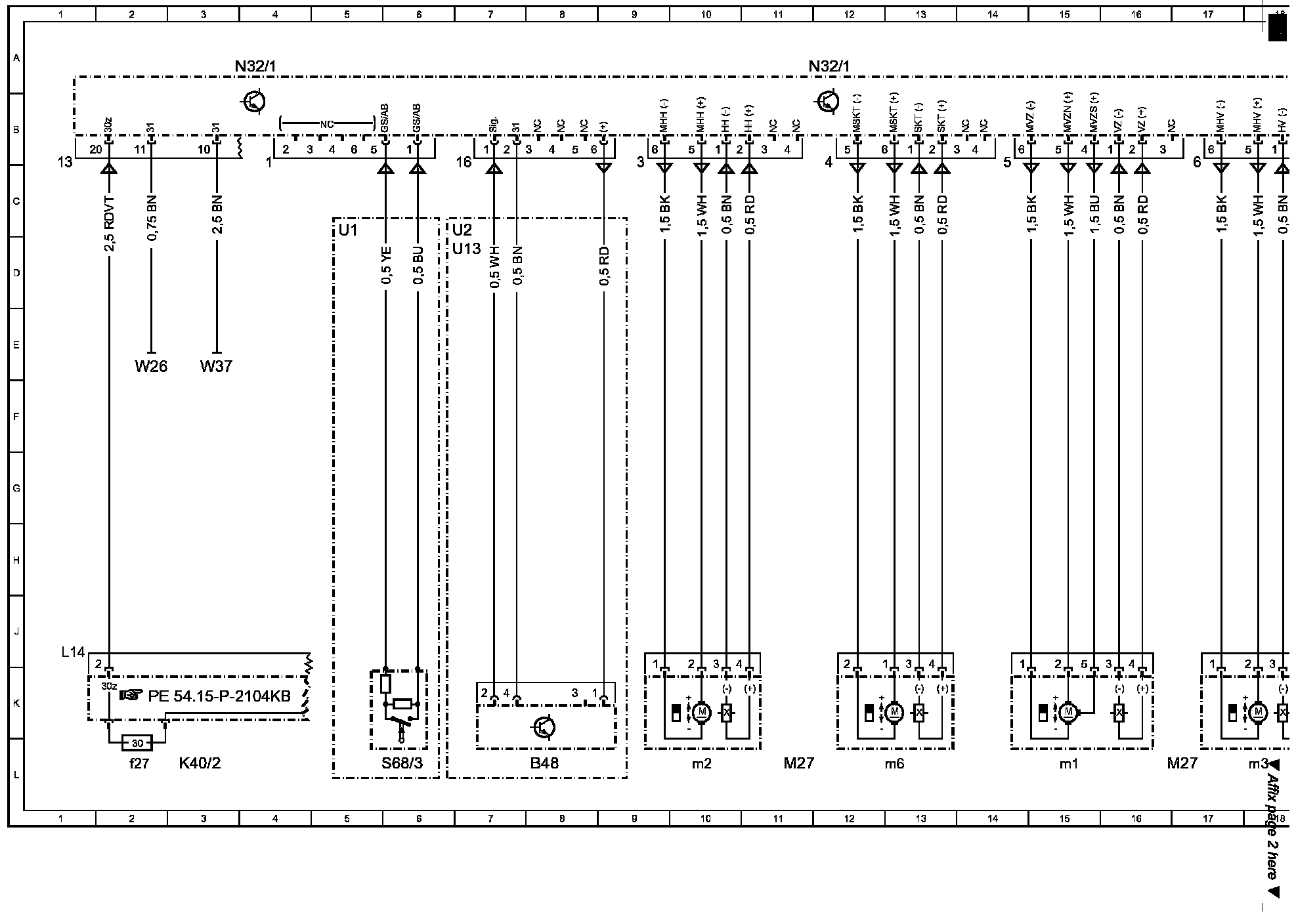

Wiring Diagram (Part 2):

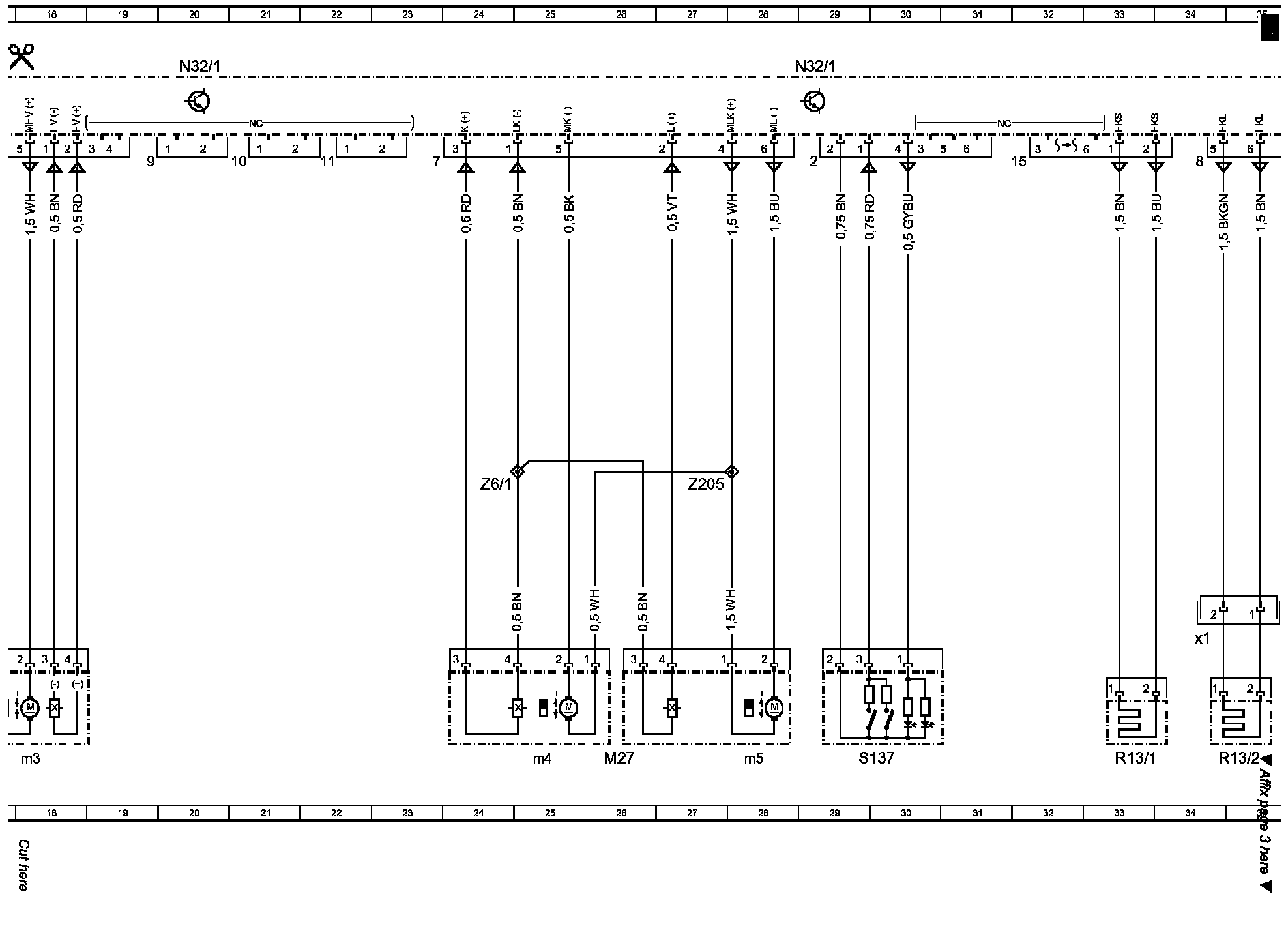

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

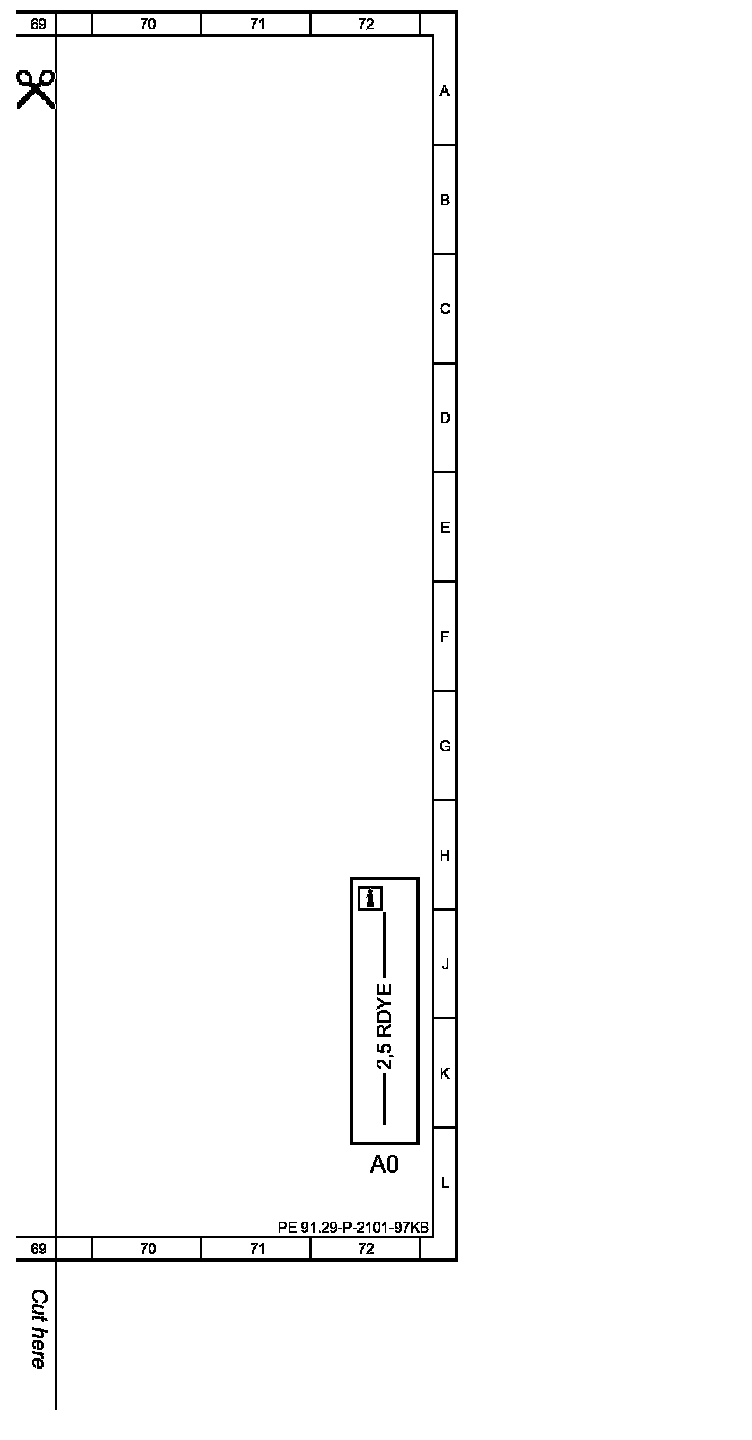

Wiring Diagram (Part 5):

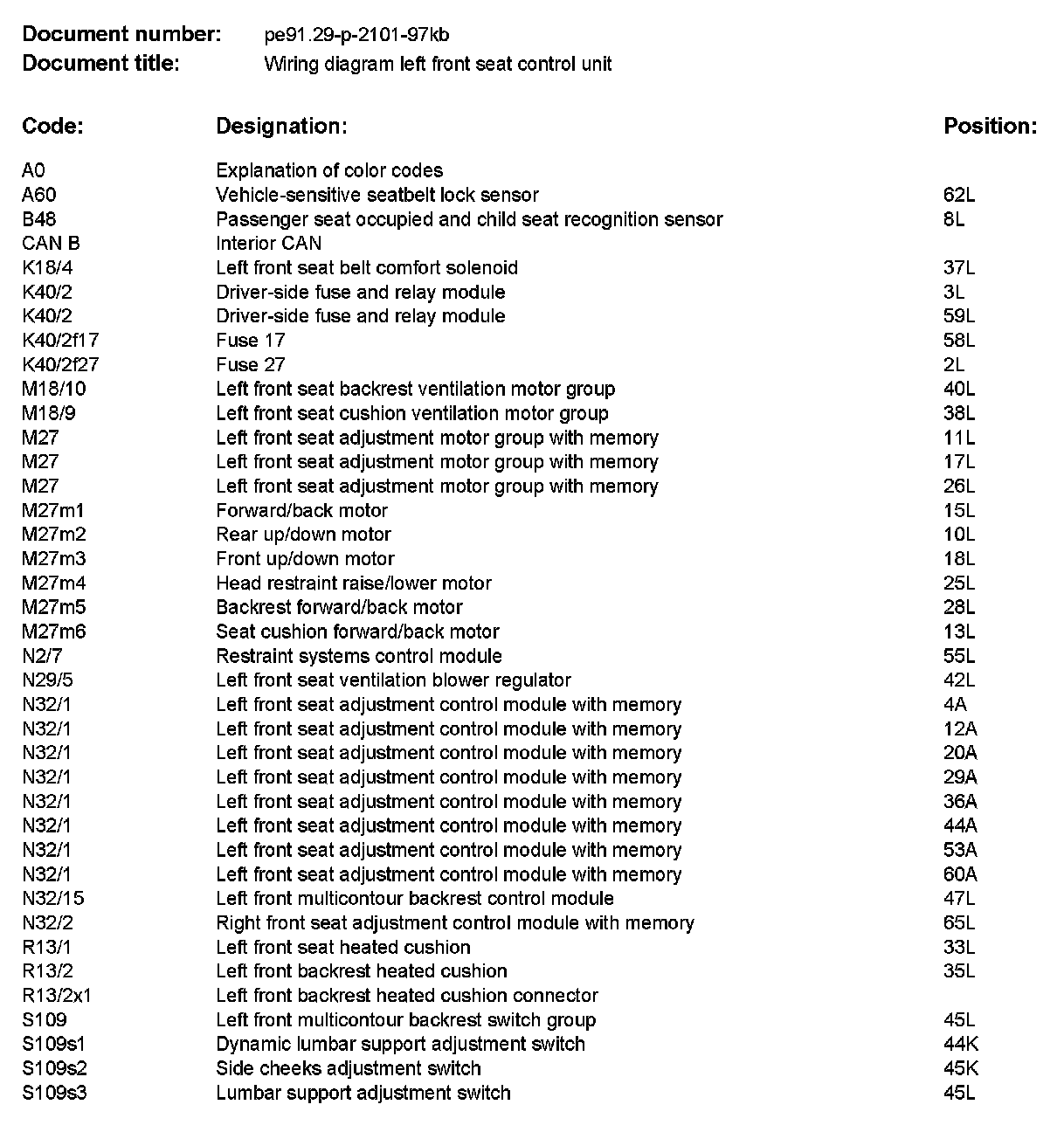

Component Description/Coordinates, A0 To S109s3:

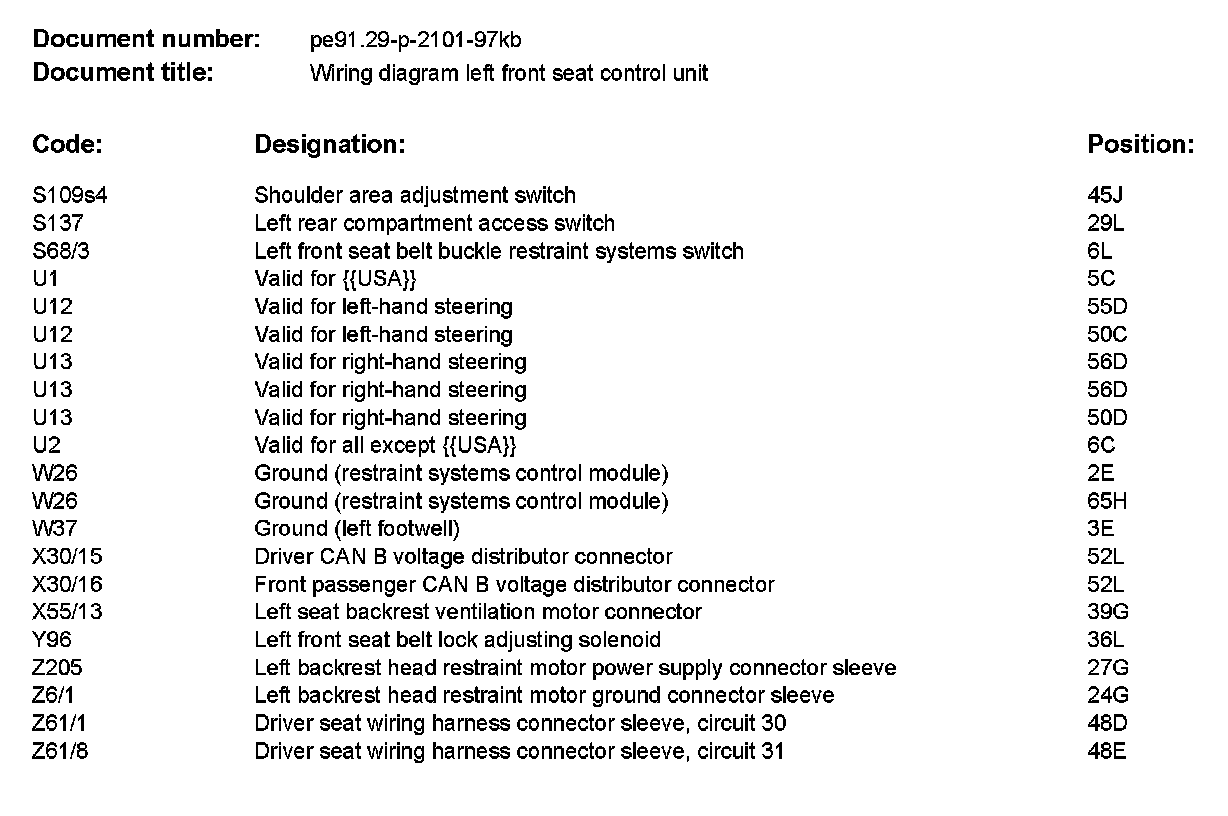

Component Description/Coordinates, S109s4 To Z61/8:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
