PE77.39-P-2053KA Electrical Function Diagram For Opening/Closing Vario Roof Via Switch

Electrical Function Diagram For Opening/closing Vario Roof Via Switch PE77.39-P-2053KA
- except CODE (P99) Special model "AMG Black Series"
- refinement package
- as of model year 2009

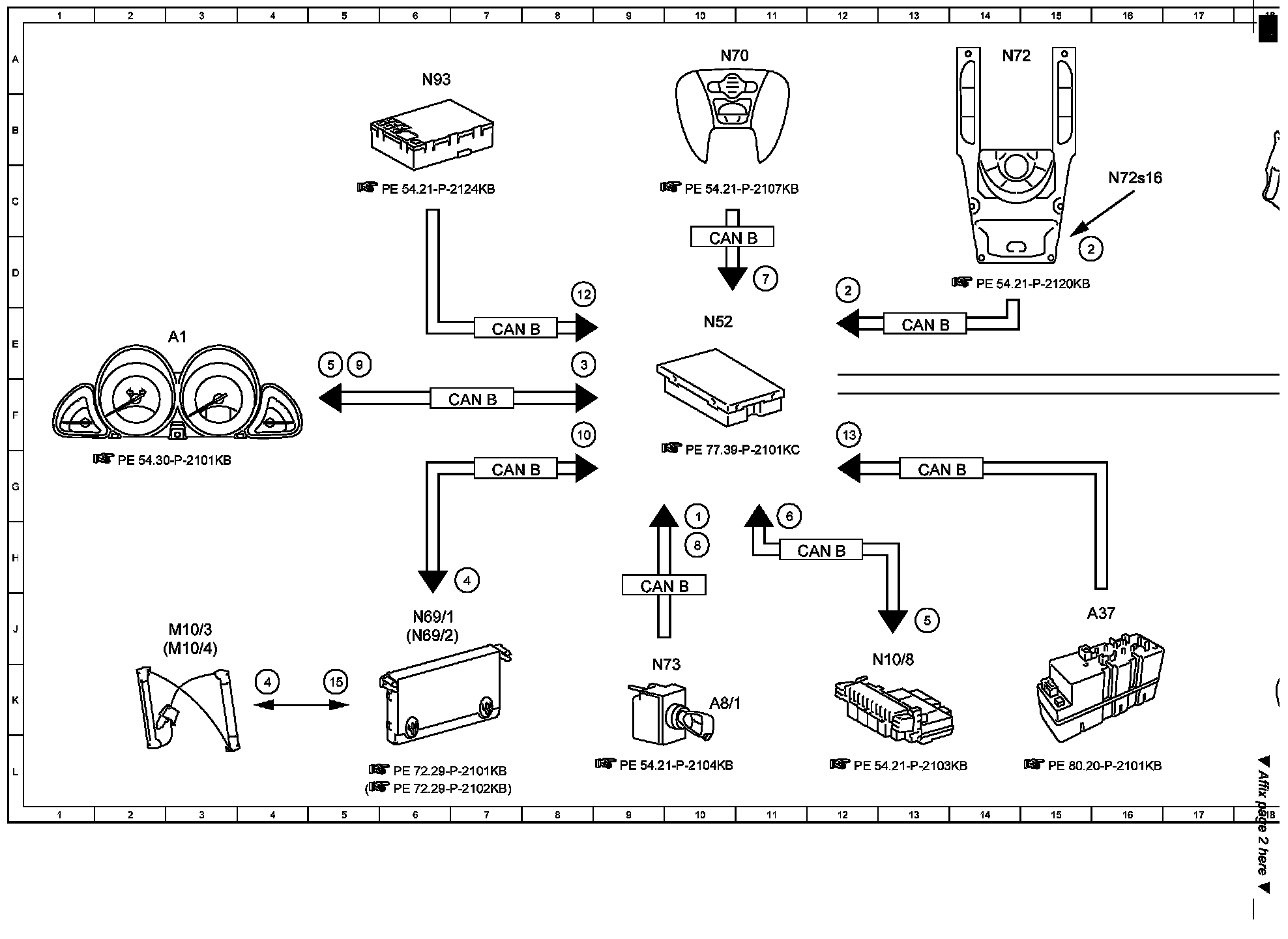

Function Diagram (Part 1):

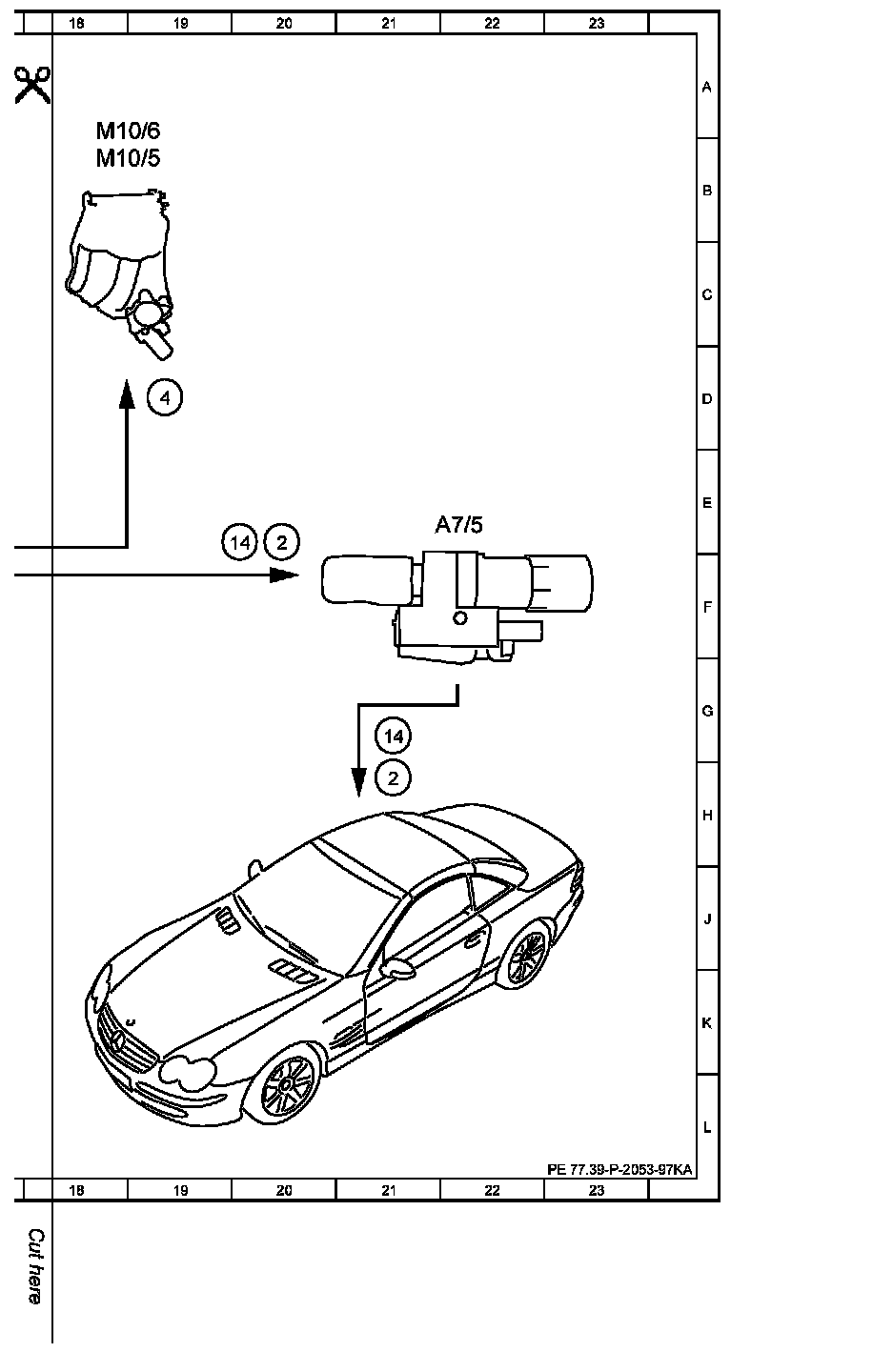

Function Diagram (Part 2):

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
