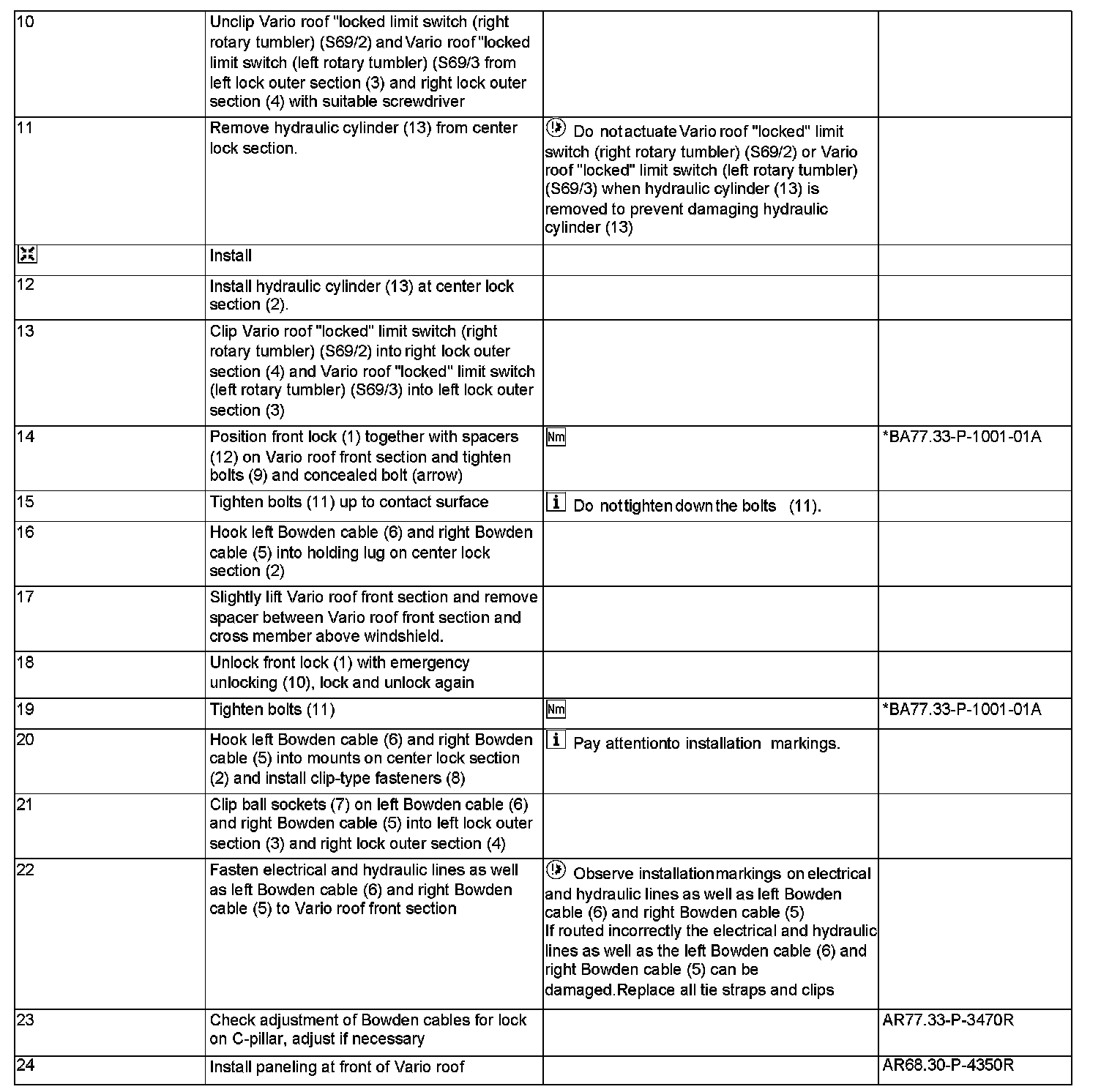

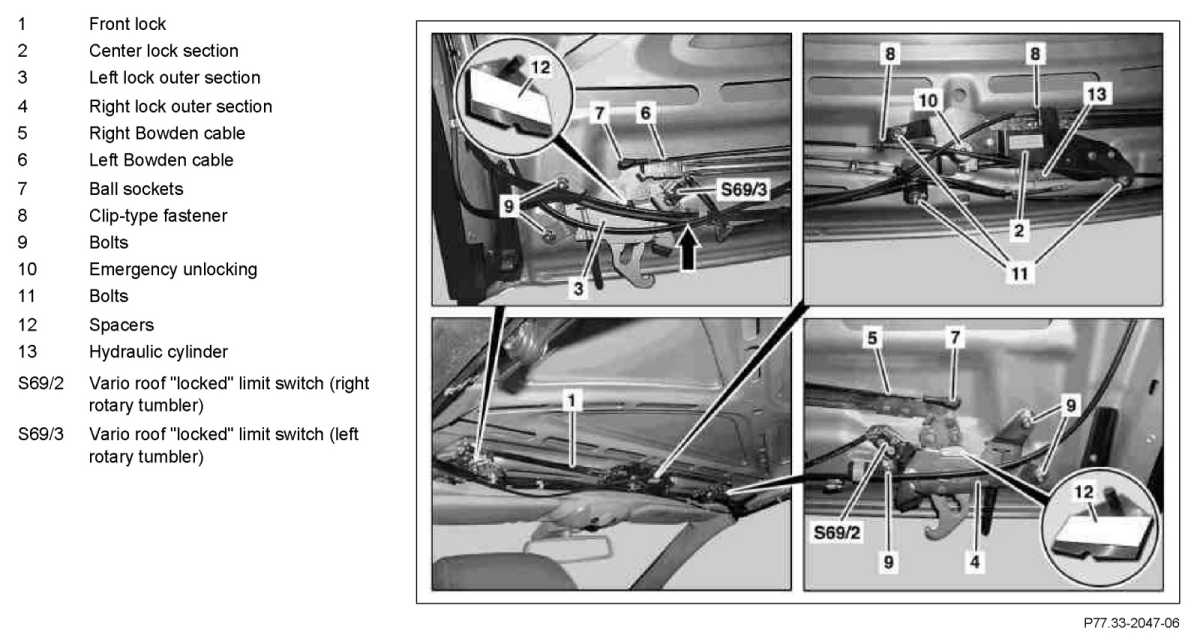

AR77.33-P-3400R Remove/Install Catch At Front of Vario Roof
AR77.33-P-3400R Remove/Install Catch At Front of Vario Roof
AR77.33-P-3400R Remove/Install Catch At Front of Vario Roof

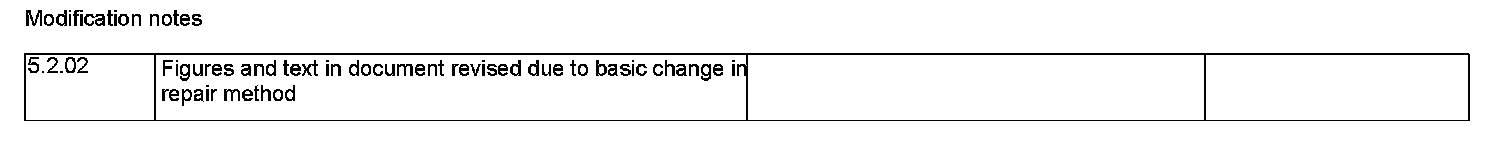

Modification Notes:
Part 1:
Part 2:

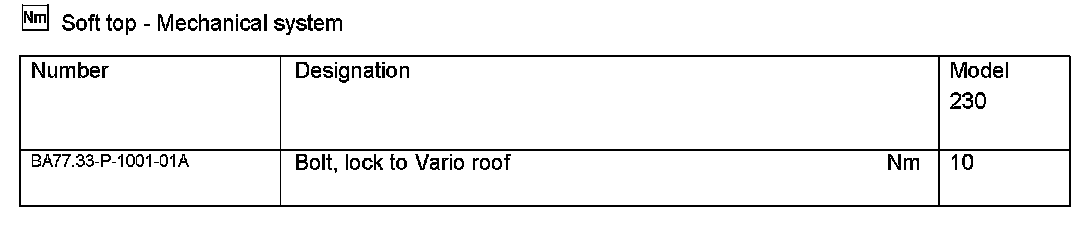

Soft Top - Mechanical System:
