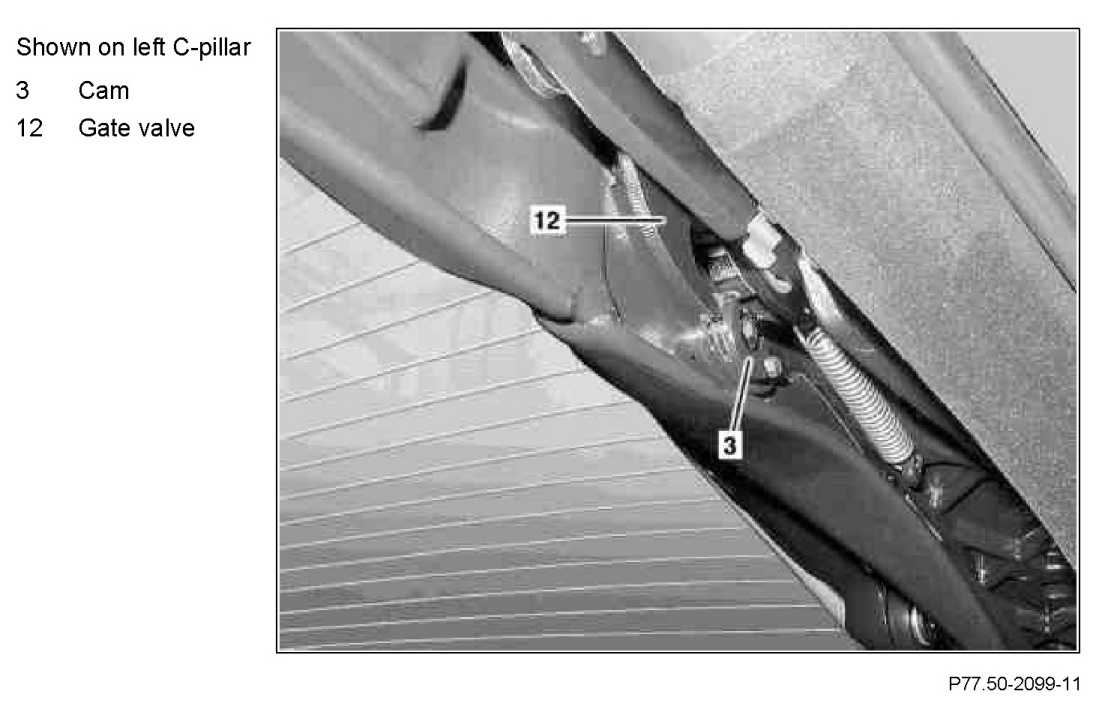

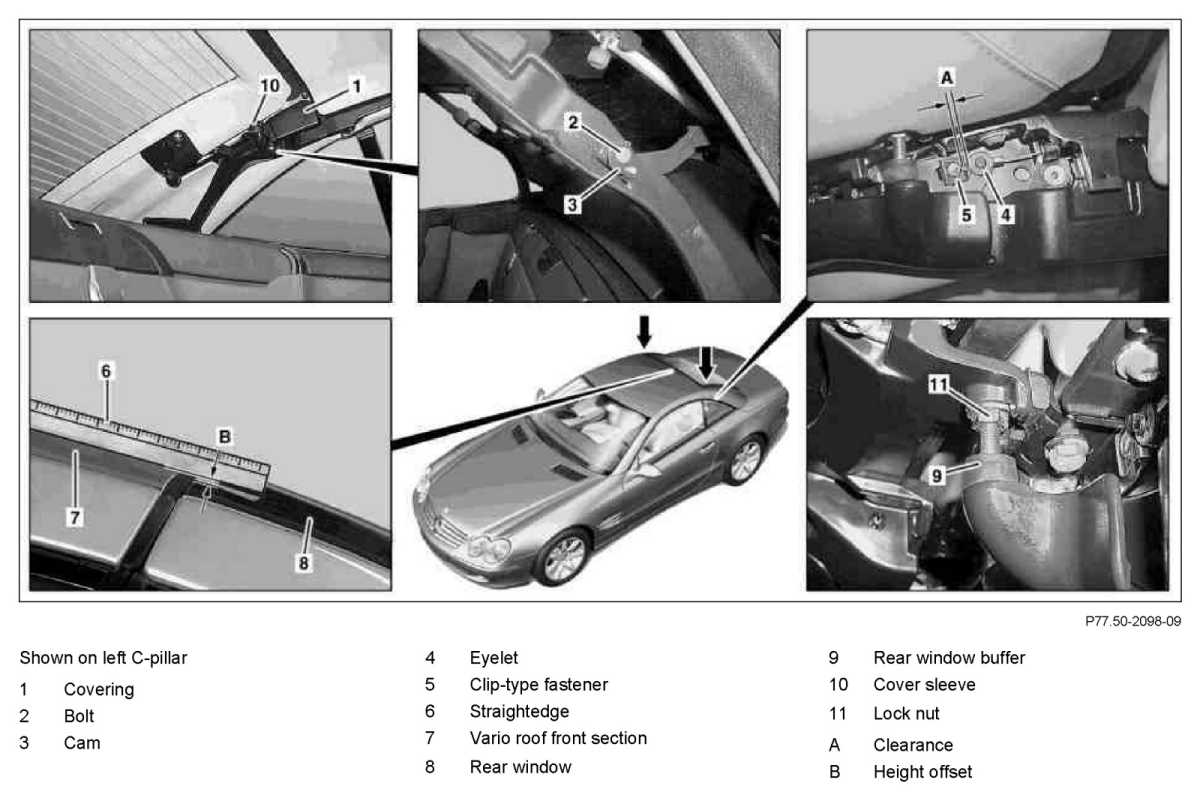

AR77.50-P-3045R Adjust Lock on C-Pillar
AR77.50-P-3045R Adjust Lock on C-Pillar
AR77.50-P-3045R Adjust Lock on C-Pillar

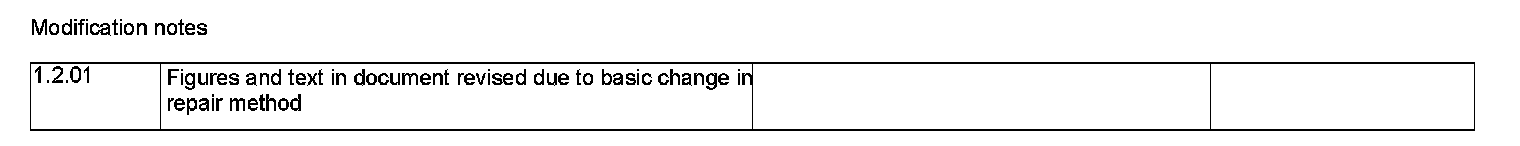

Modification Notes:

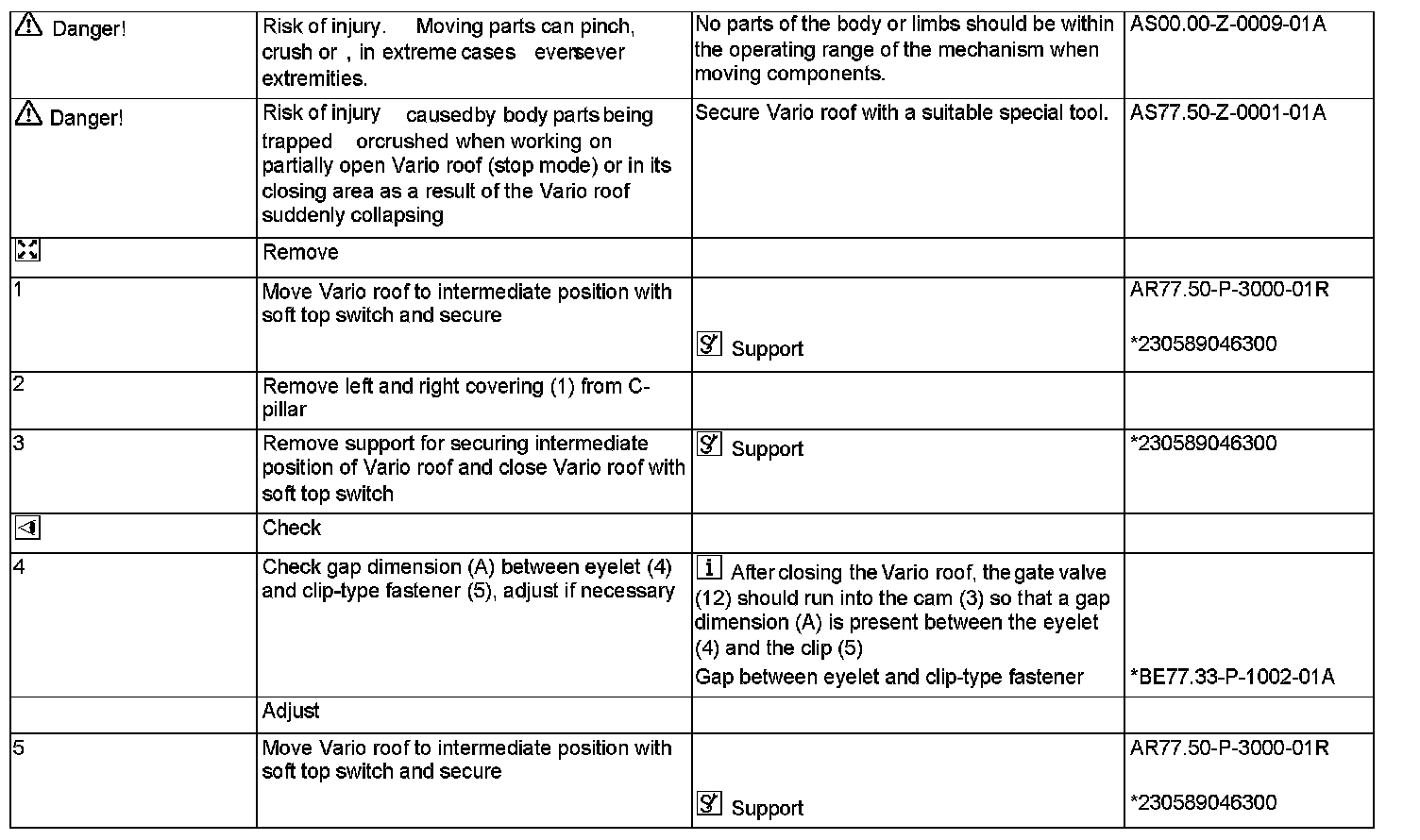

Part 1:

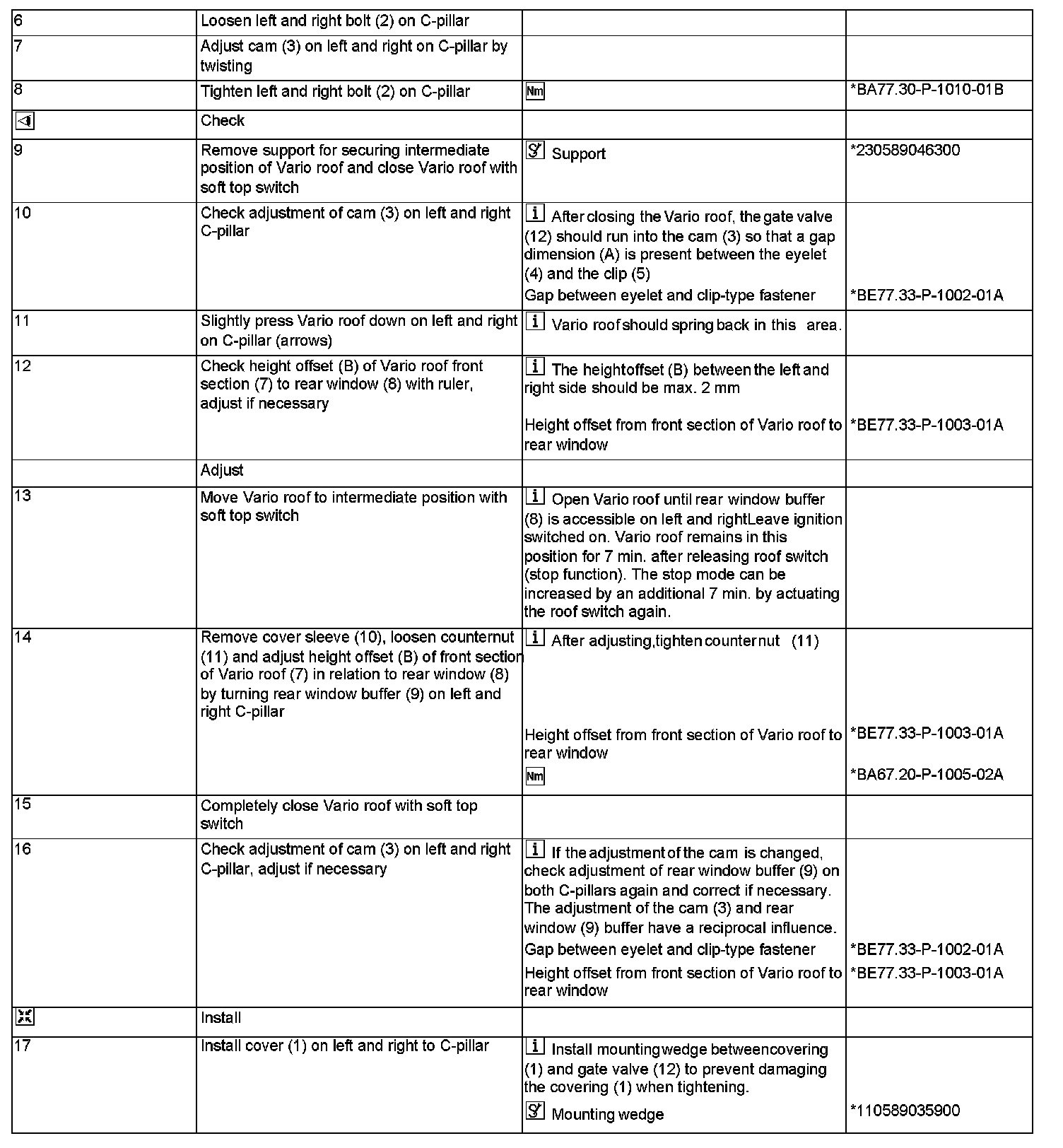

Part 2:

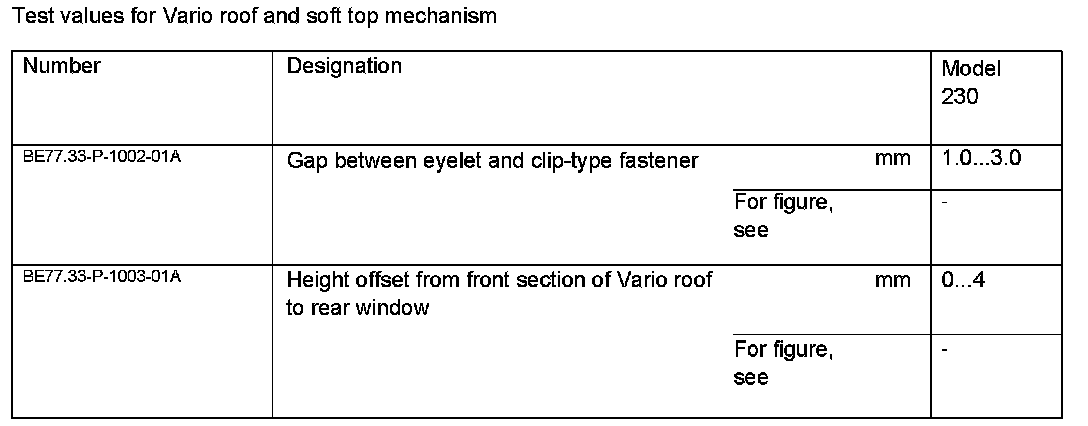

Test Values For Vario Roof And Soft Top Mechanism:

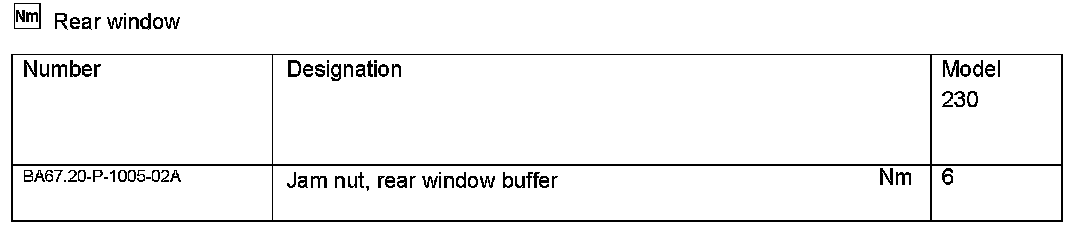

Rear Window:

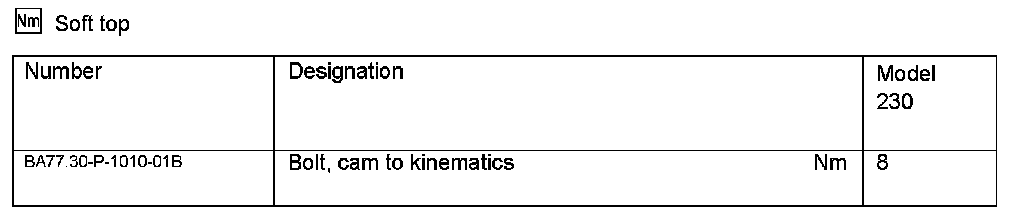

Soft Top:
