GF77.39-P-3223RI Side Flap "Closed/Open" Limit Switch, Component Description

GF77.39-P-3223RI Side Flap "Closed/Open" Limit Switch, Component Description
- except CODE (P99) Special model "AMG Black Series"
- refinement package
- as of model year 09

Component Identification:

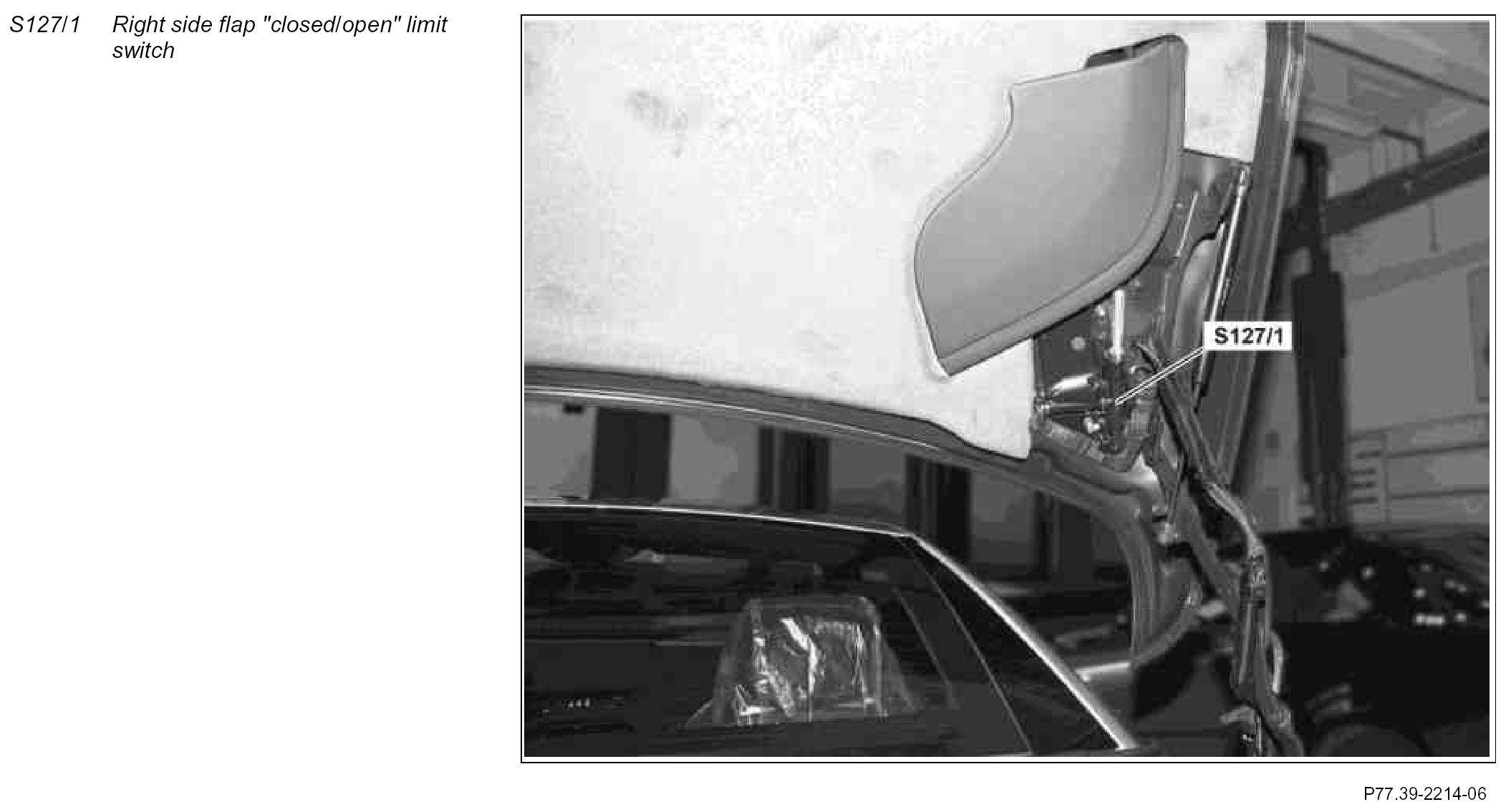

Location
Next to the joint for the right side flap on the inside of the trunk lid


Task
One 1-pin normally open contact and one 1-pin normally closed contact (for the positions "folded in and out") transmits a ground signal to the RVC [UVS] control unit (N52), as soon as the side flaps are folded out or in.

If the side flap is not in an end position, a ground signal (open input) is not sent to the RVC [UVS] control unit.
