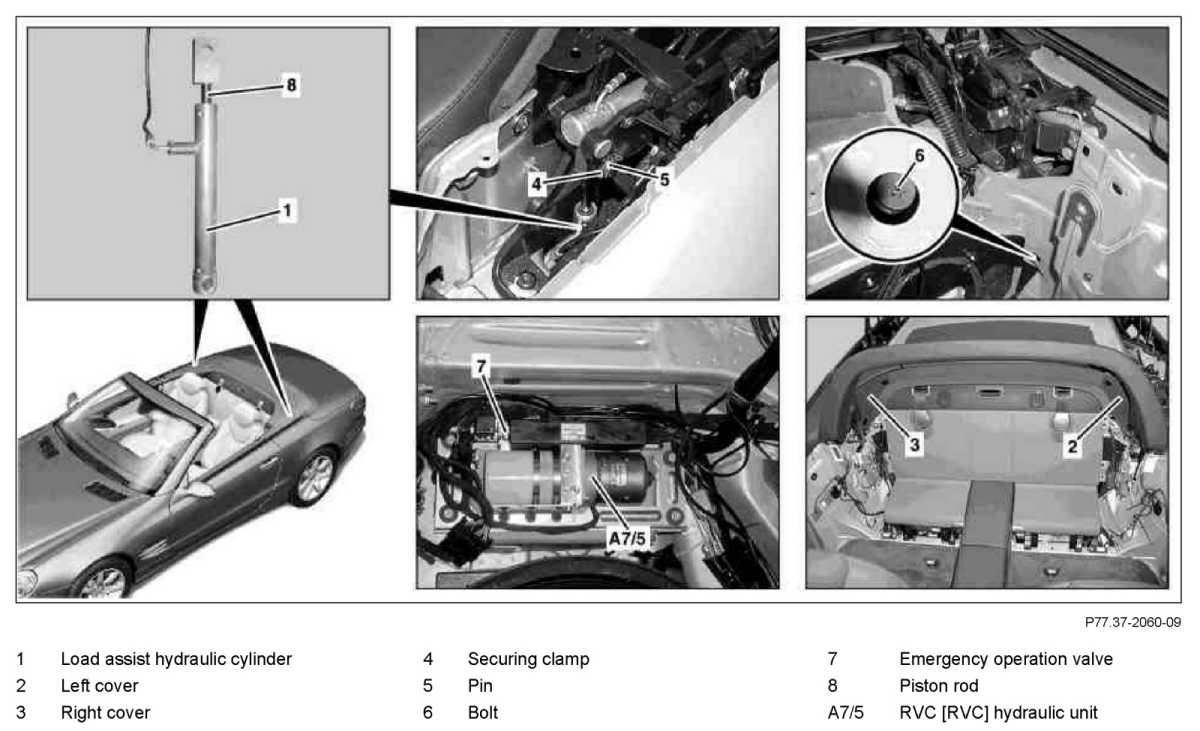

AR77.37-P-3600R Remove/Install Hydraulic Cylinder of Vario Roof Load Assist Position



AR77.37-P-3600R Remove/Install Hydraulic Cylinder of Vario Roof Load Assist Position

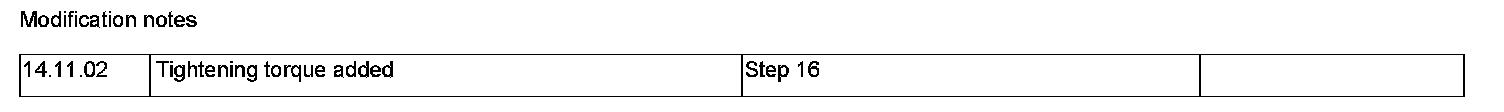

Modification Notes:

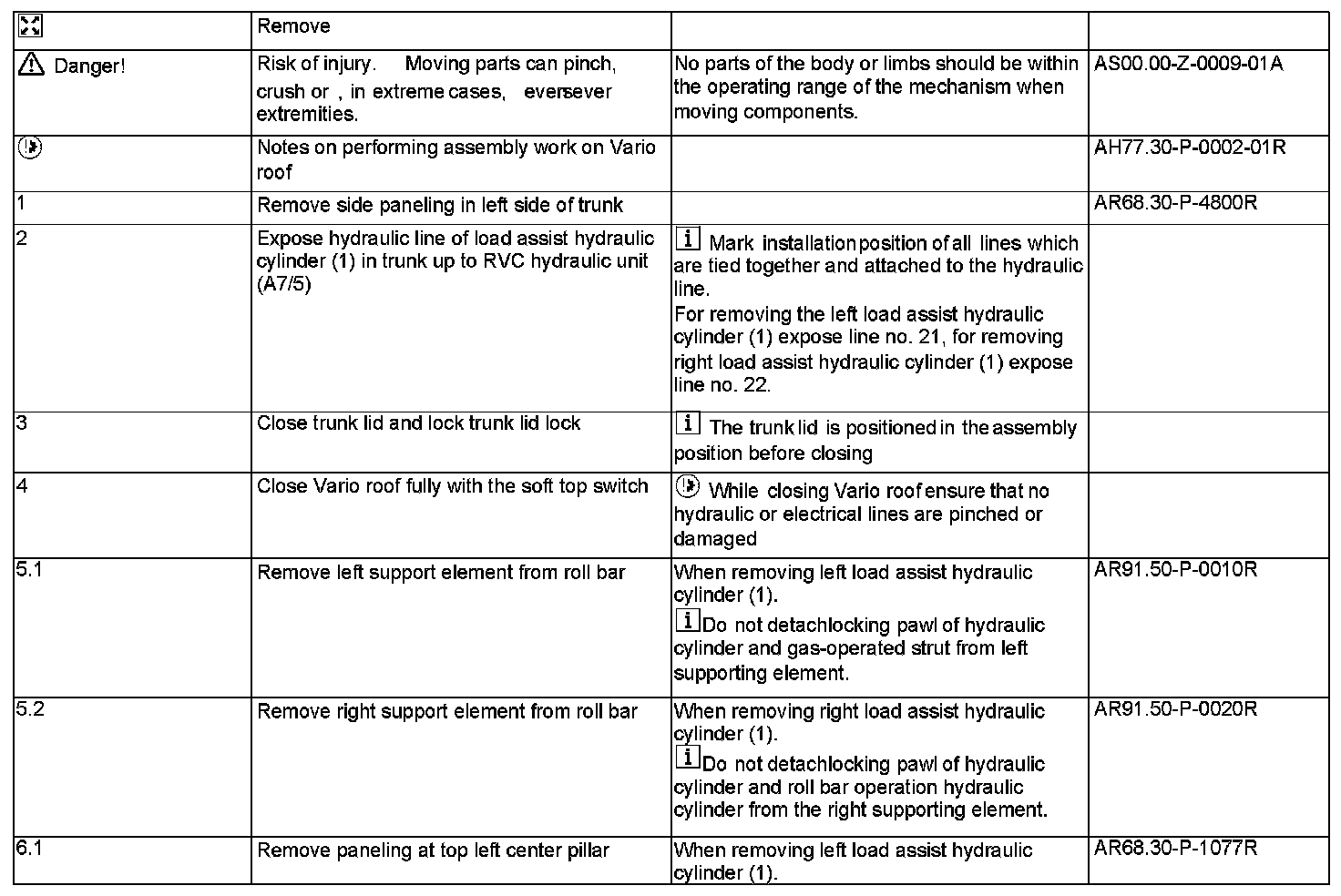

Part 1:

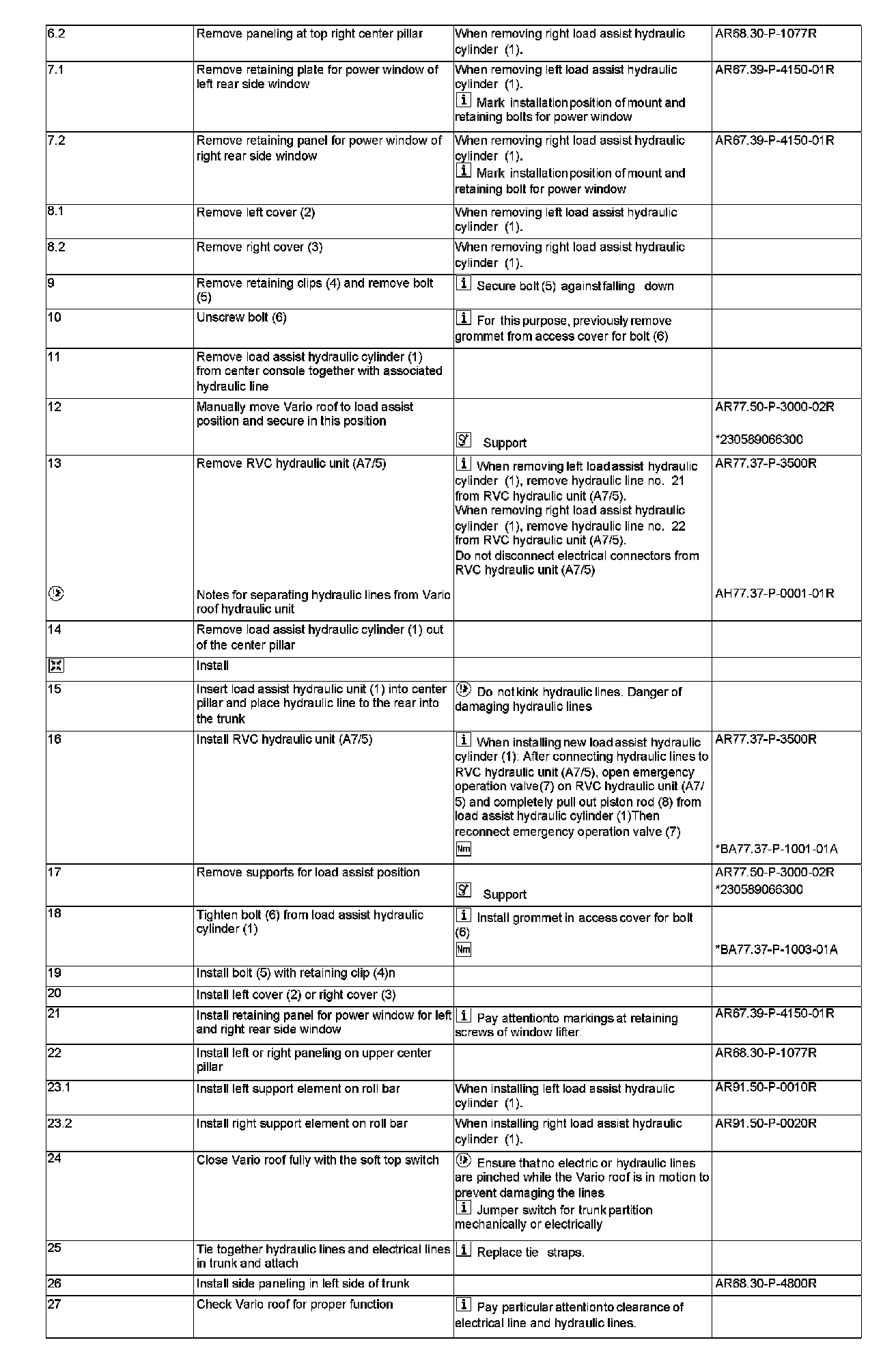

Part 2:

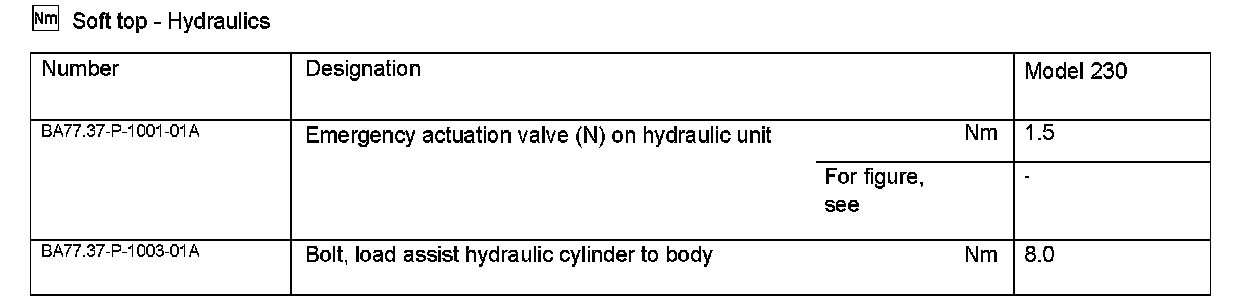

Soft Top - Hydraulics:
