Roll Bar Triggering Solenoid: Description and Operation

GF91.59-P-2105RI Roll Bar Trigger Solenoid, Component Description

- as of model year 2009
- except CODE (P99) Special model "AMG Black Series"
- /YoM 08 model refinement package

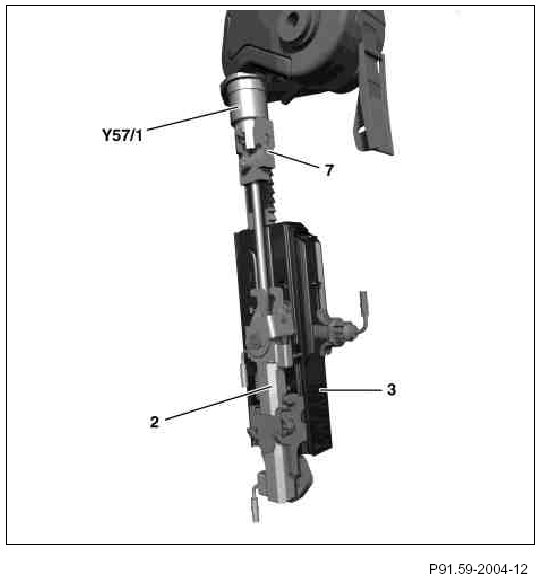

2 Roll bar hydraulic cylinder
3 Supporting element, left
7 Lock (coupling)
Y57/1 RB [�RB] deployment solenoid

Location
The roll bar (RB [�RB]) trigger solenoid (Y57/1) is located on the right side in the vicinity of the B-pillar.

Task
Release of the piston rod of the roll bar hydraulic cylinder.

Function
If an accident occurs or in the event of a critical traffic situation, the roll bar Vario roof control unit (N52) energizes the roll bar trigger solenoid. As a result, the lock that connects the hydraulic cylinder to the roll bar opens up. The roll bar is now extended through the precompressed spring within split seconds.
