Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Body and Frame >> Roll Bar >> Roll Bar Hydraulic Actuator >> Service and Repair

Roll Bar Hydraulic Actuator: Service and Repair

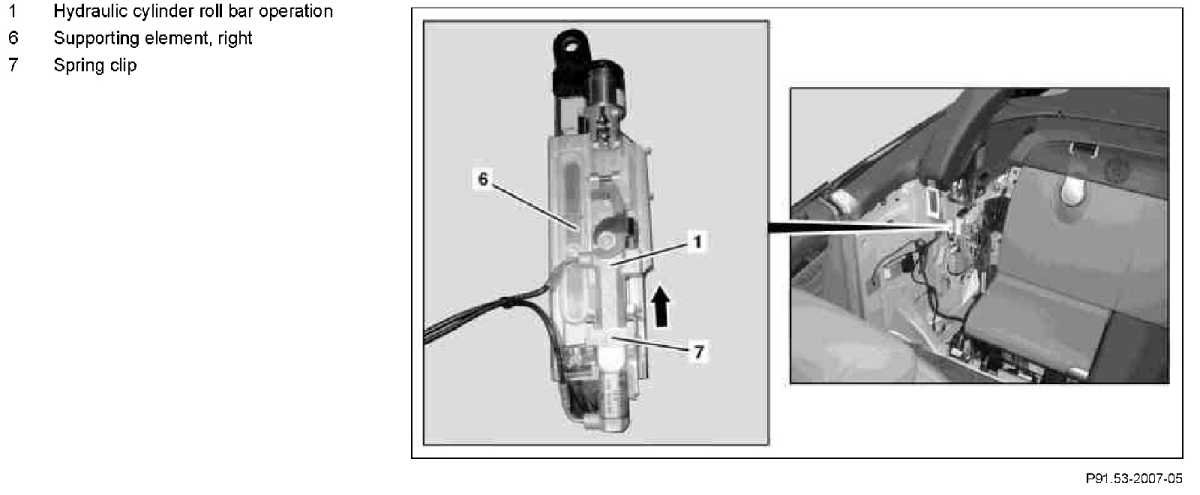

AR91.53-P-0010R Remove/Install Hydraulic Cylinder Roll Bar Operation
- Except CODE (P99) "AMG Black Series" special model

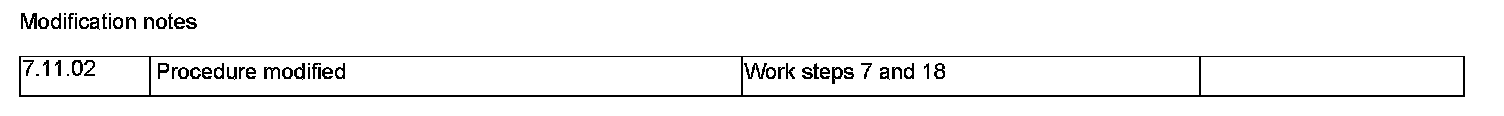

Modification Notes:

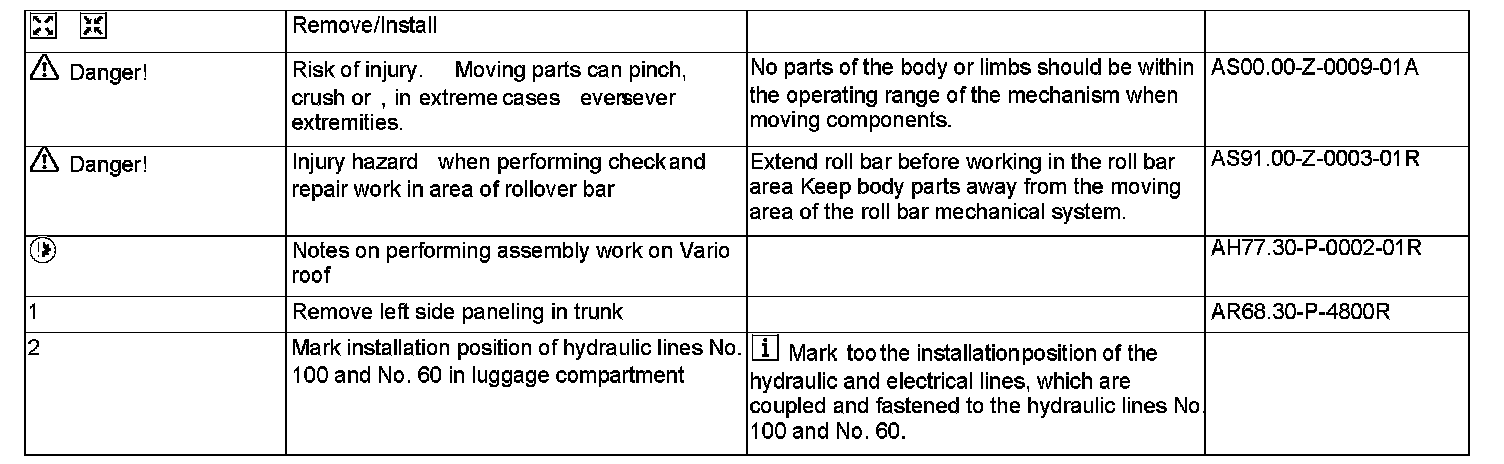

Part 1:

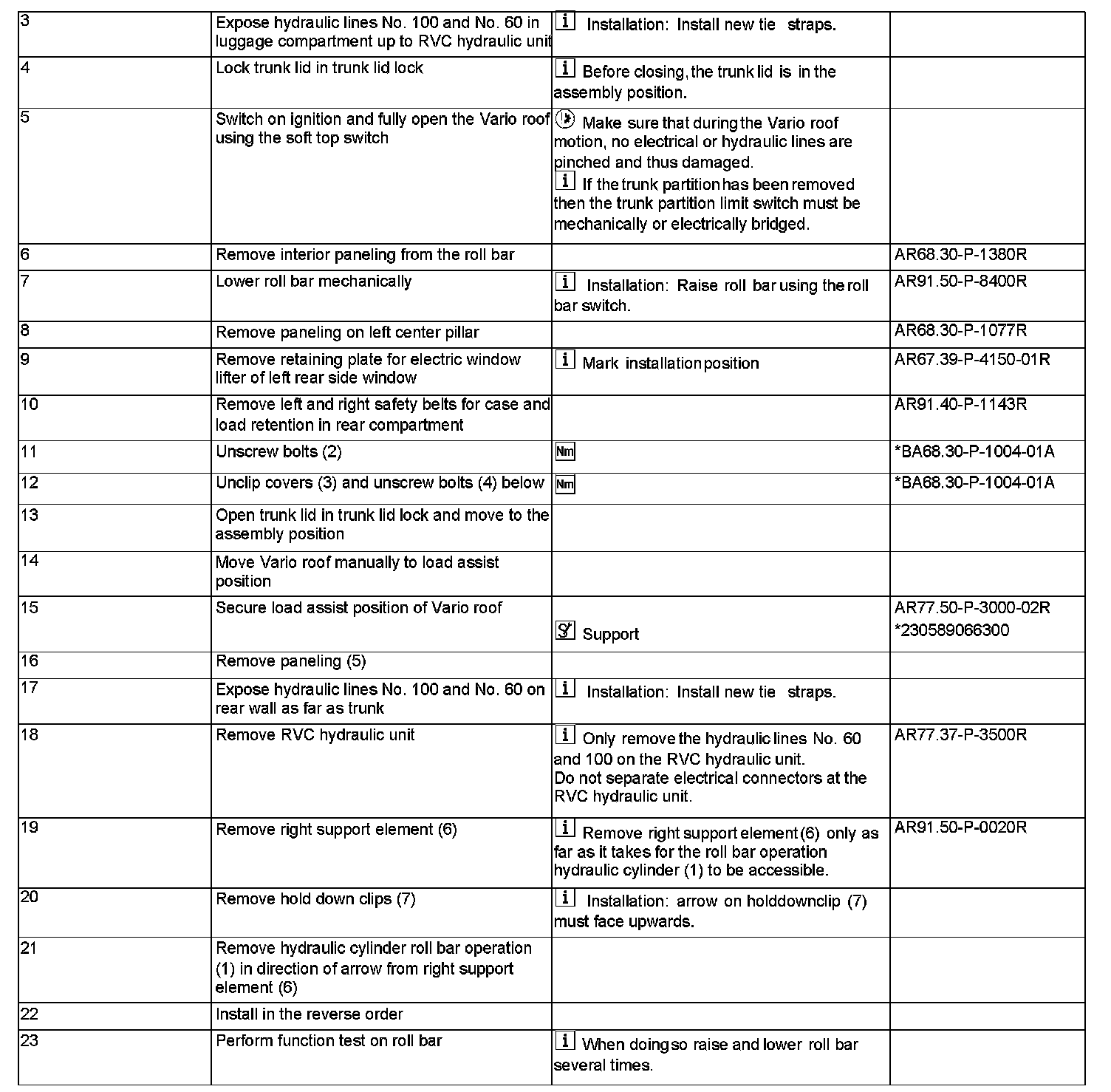

Part 2:

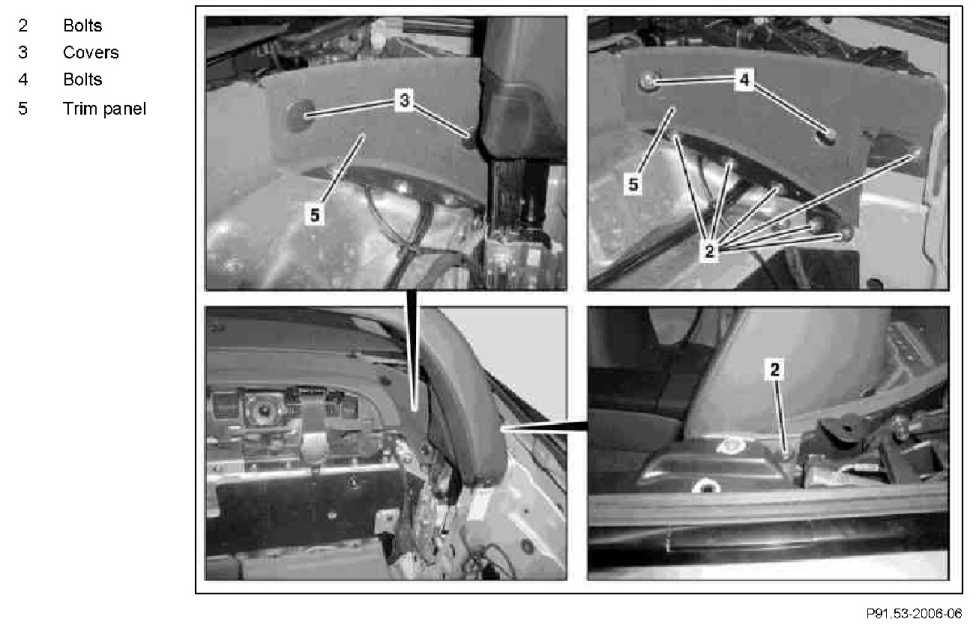

Trims And Trim Frames:
