AR77.37-P-3501RA Check Oil Level of Hydraulic Unit, Correct



AR77.37-P-3501RA Check Oil Level Of Hydraulic Unit, Correct
- as of #112117

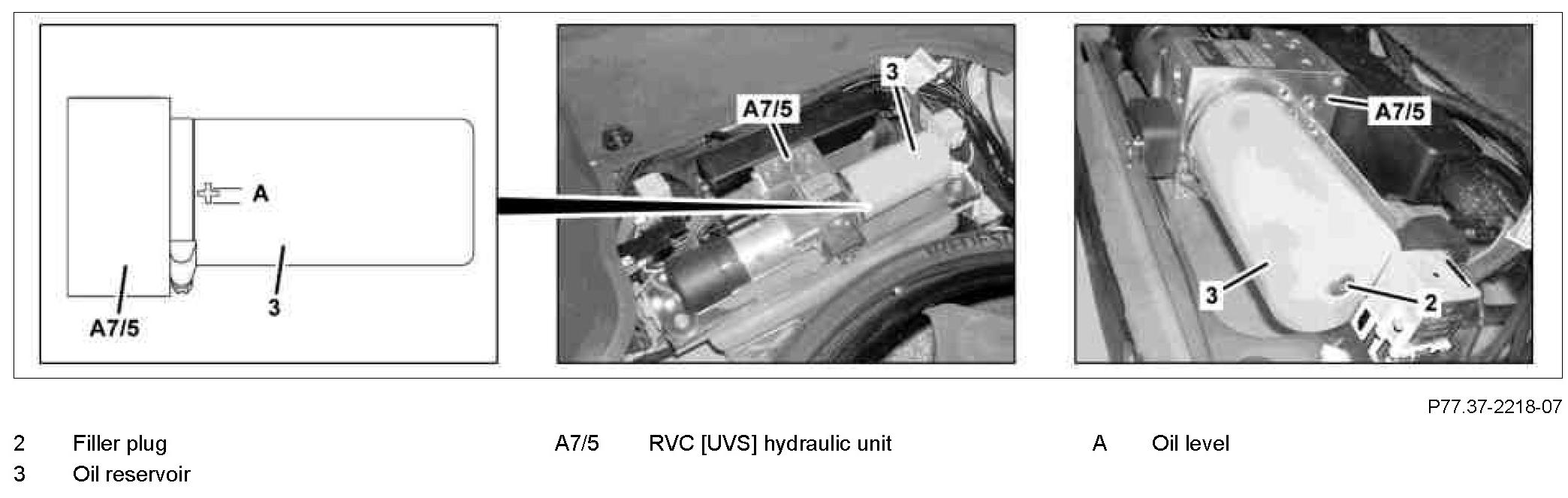

Component Identification:

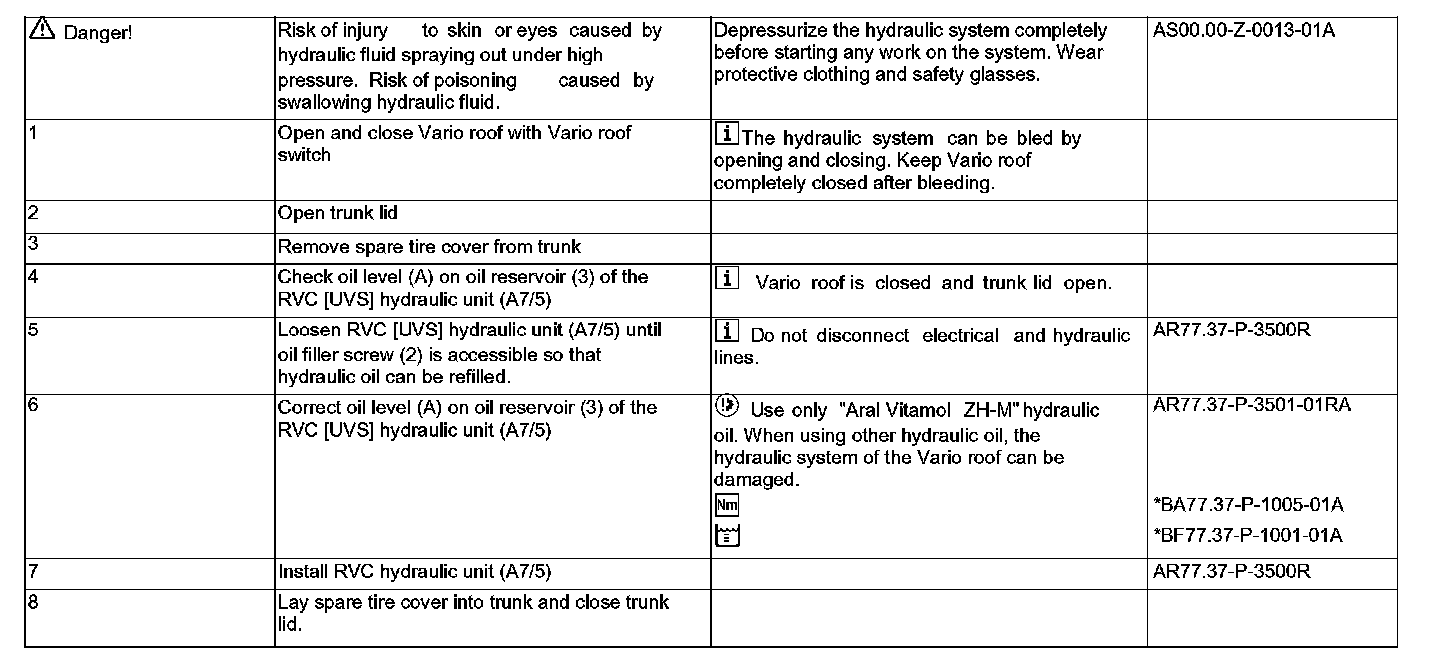

Steps 1 - 8:

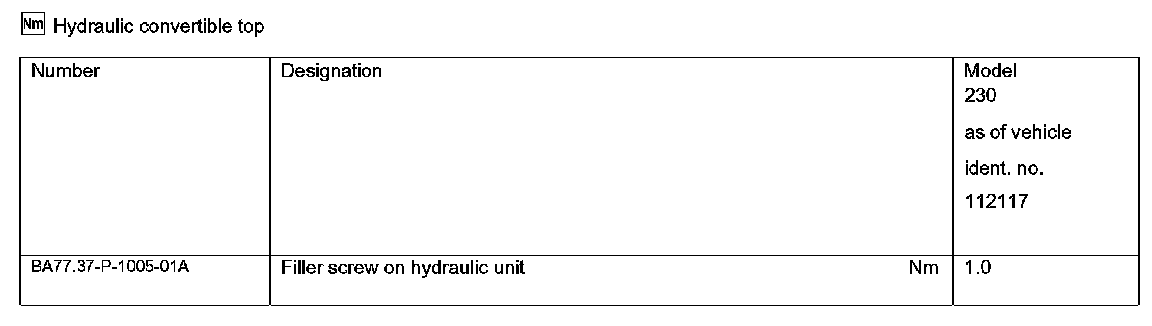

Hydraulic Convertible Top:

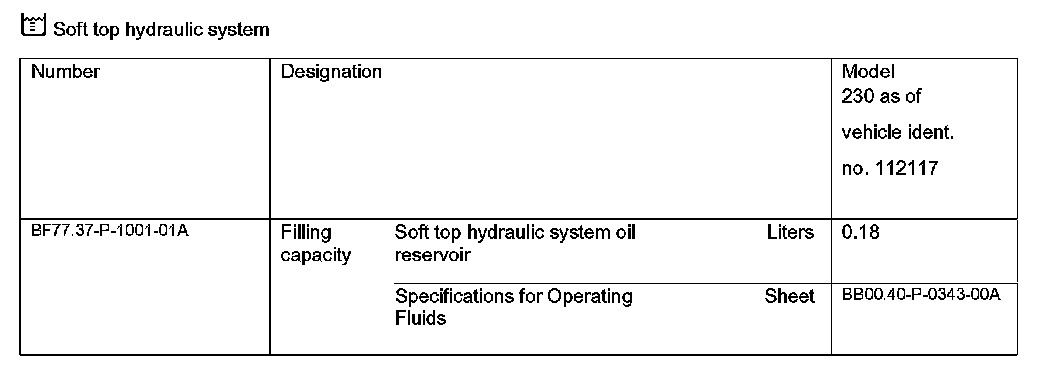

Soft Top Hydraulic System:
