GF80.20-P-4202RI Trunk Lid Position Sensor, Component Description

GF80.20-P-4202RI Trunk Lid Position Sensor, Component Description
- with CODE (881) Remote trunk closing (RTC [HDFS])

Component Identification:

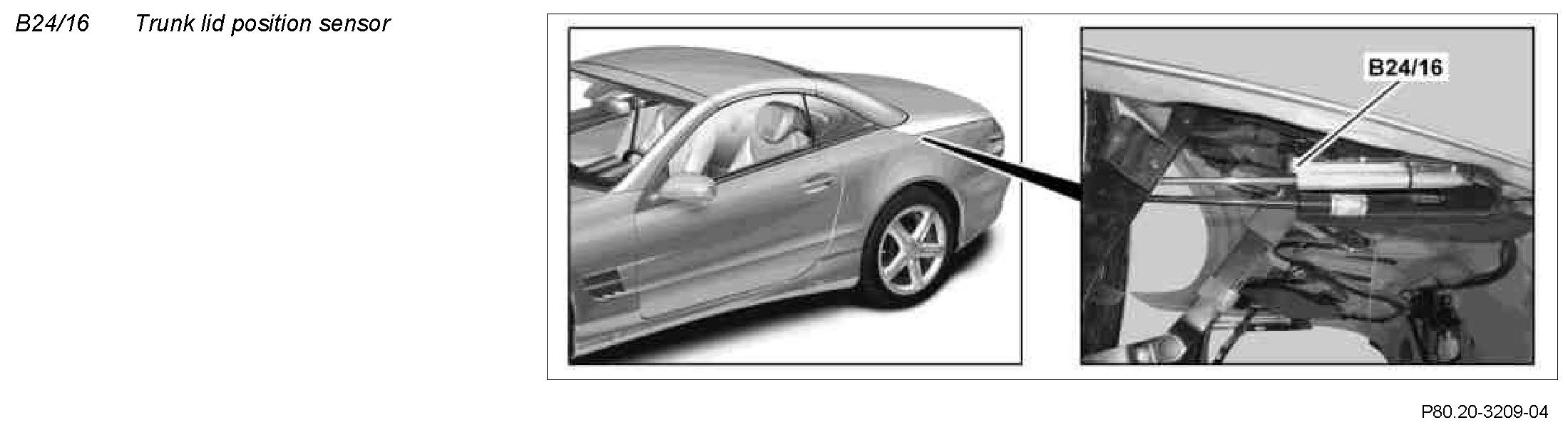

Location
The trunk lid position sensor is located on the left hydraulic cylinder on the trunk lid.


Task
The trunk lid position sensor senses the momentarily position and speed of the trunk lid.
These values are read in by the RVC control unit (N52).
