AZ82.20-P-0001RR Retrofit Illuminated Door Sill Molding

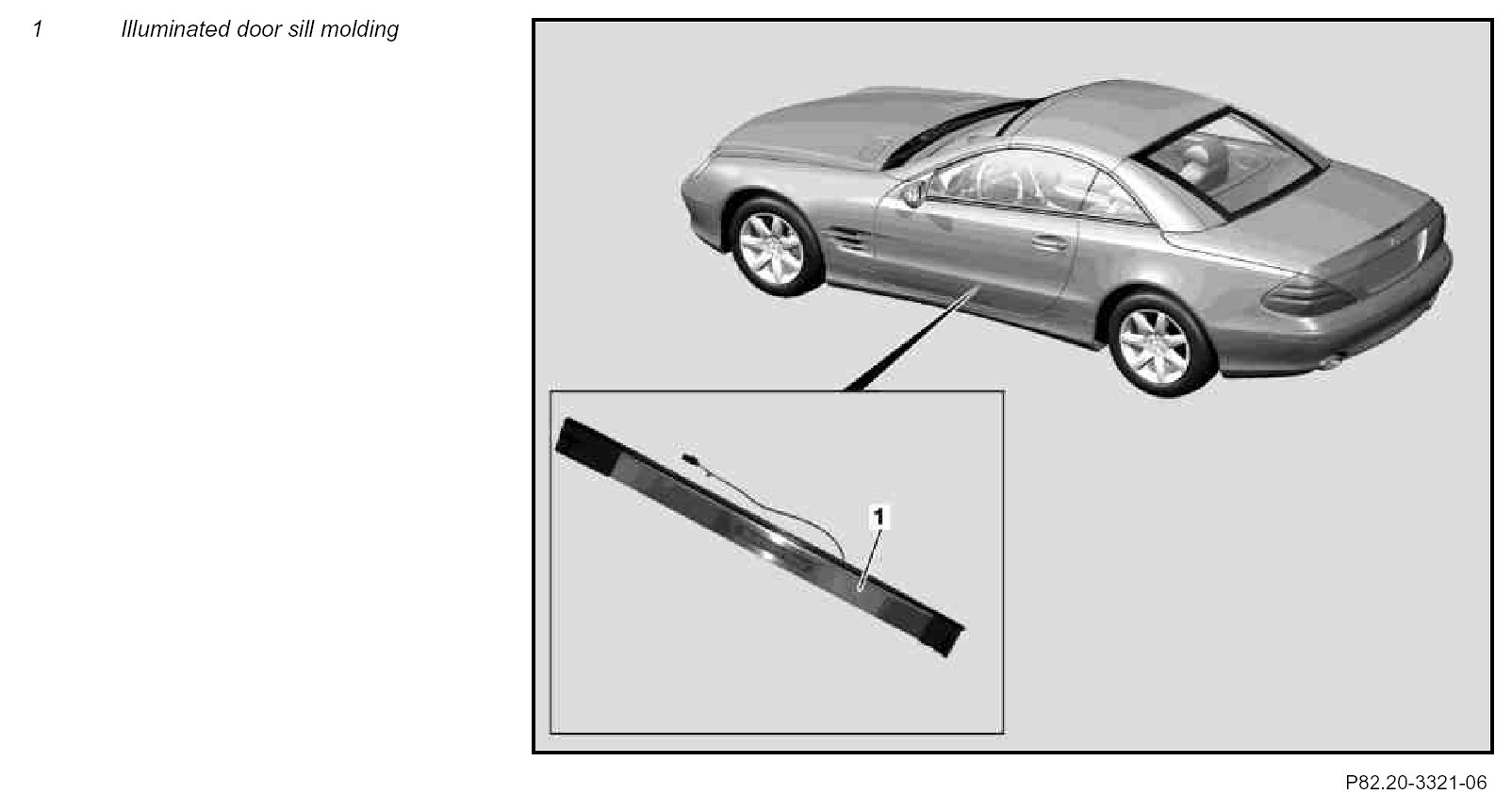

Component Identification:

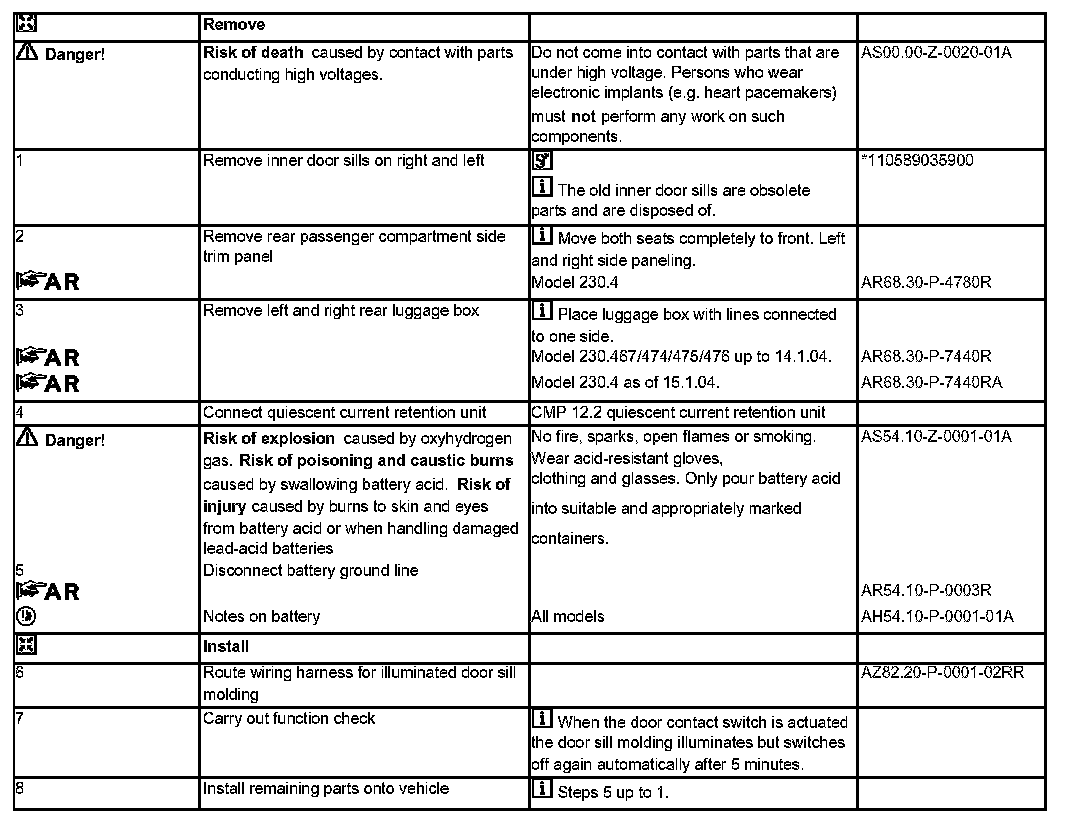

Steps 1 - 8:
Special Tools:

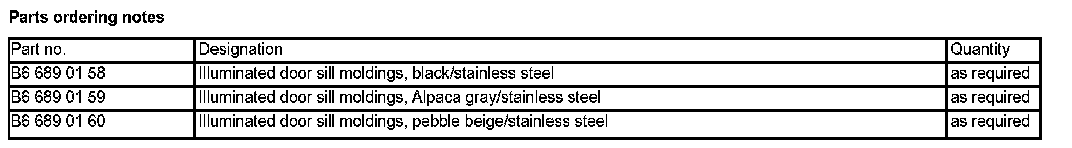

Parts Ordering Notes:
