Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Body and Frame >> Fender >> Rear Fender >> Rear Fender Liner >> Service and Repair >> AR88.10-P-1400RBS Remove/Install Fender Liner In Rear Fender

AR88.10-P-1400RBS Remove/Install Fender Liner In Rear Fender



AR88.10-P-1400RBS Remove/Install Fender Liner In Rear Fender
- with CODE (P99) Special model "AMG Black Series"

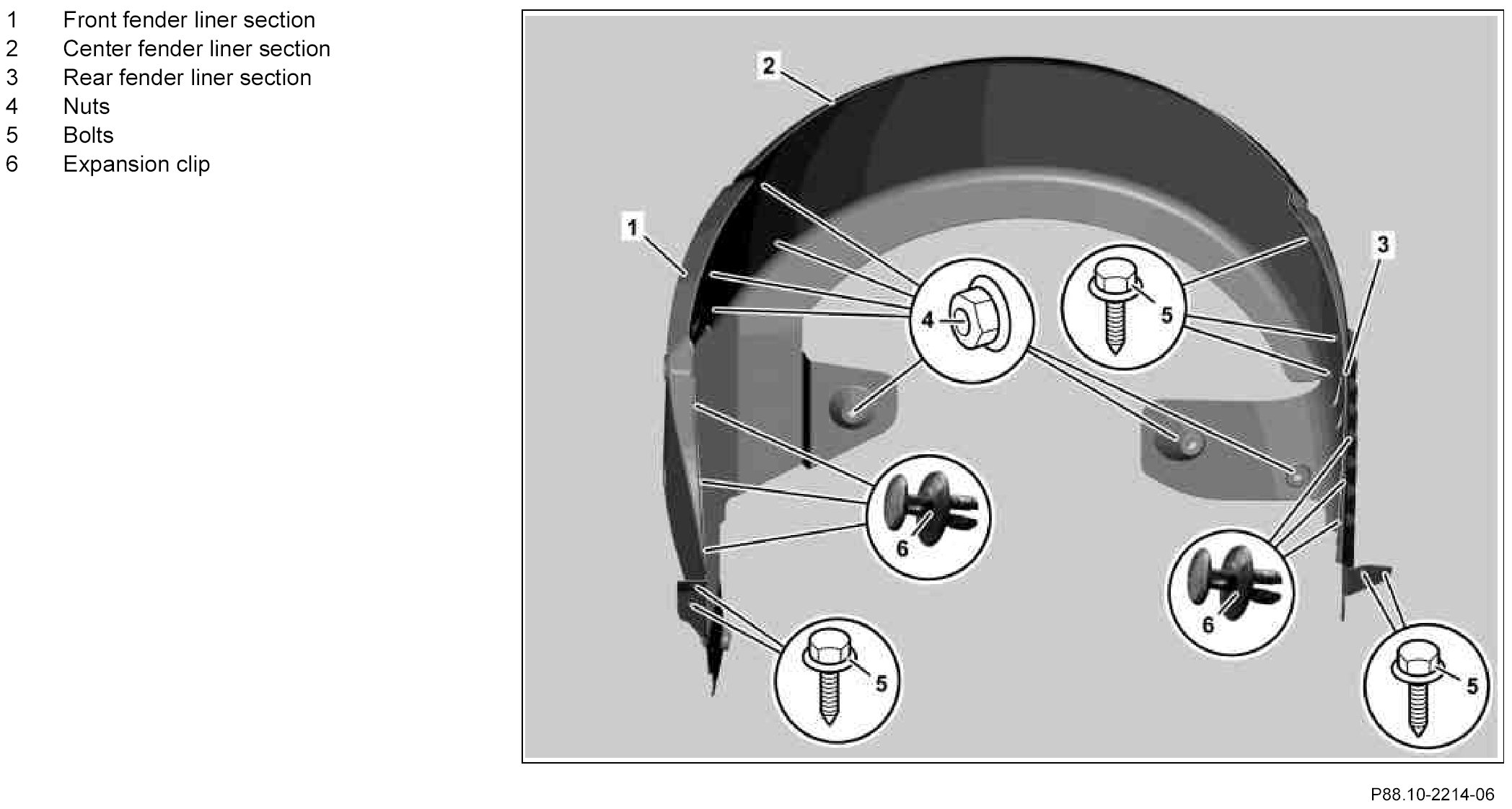

Component Identification:

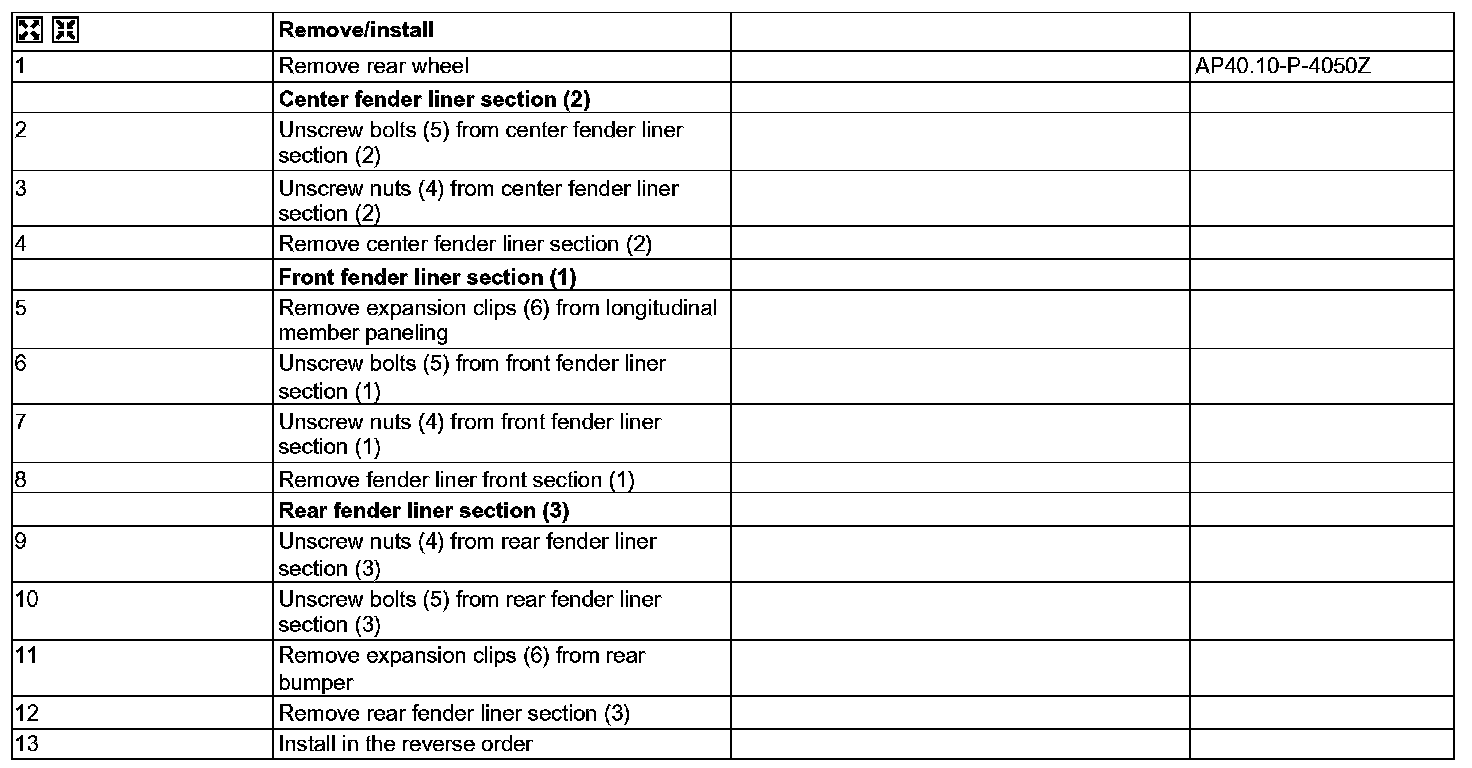

Steps 1 - 13:
