AR88.10-P-1400R Remove/Install Fender Liner In Rear Fender
AR88.10-P-1400R Remove/Install Fender Liner In Rear Fender
AR88.10-P-1400R Remove/Install
Fender
Liner In Rear Fender

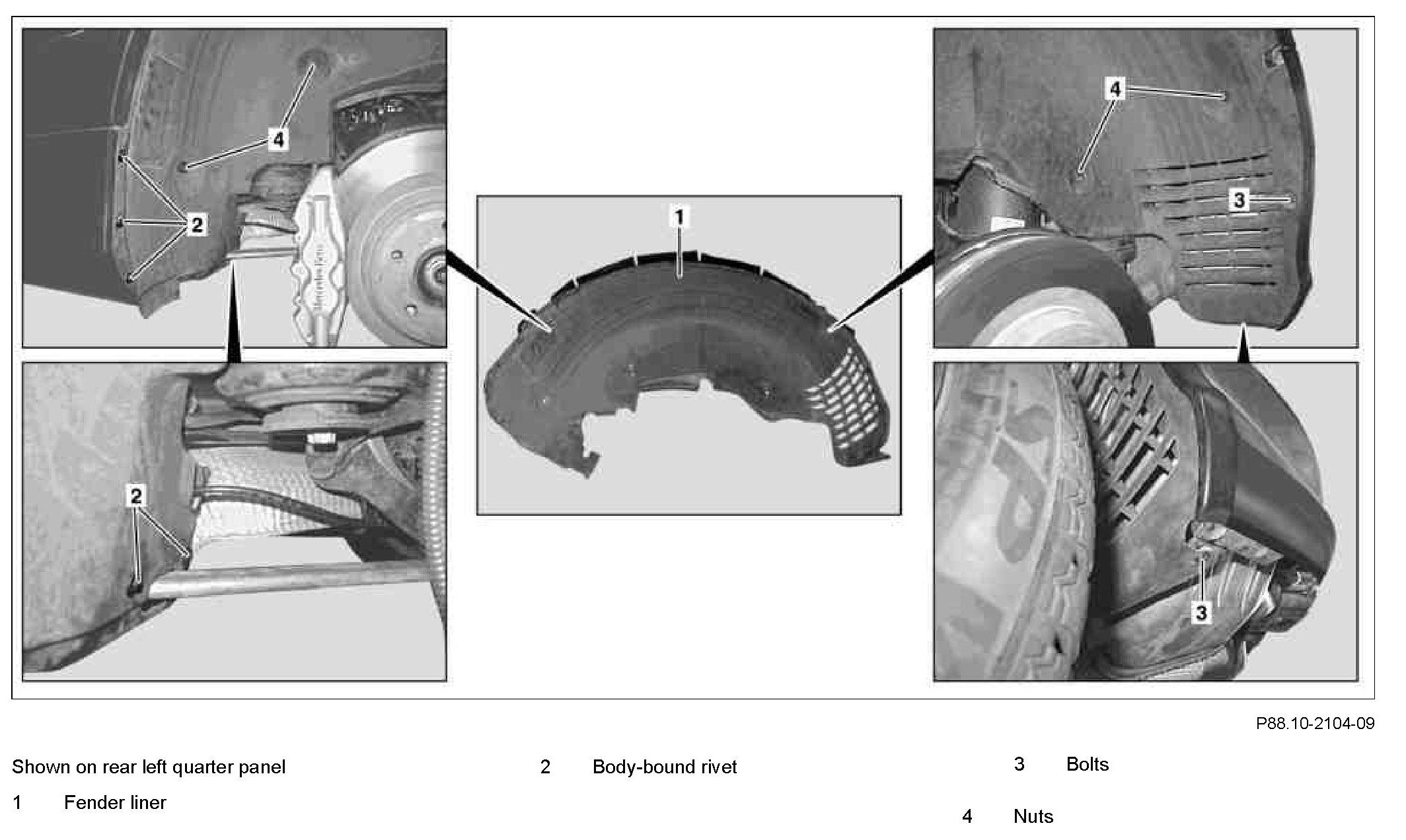

Component Identification:

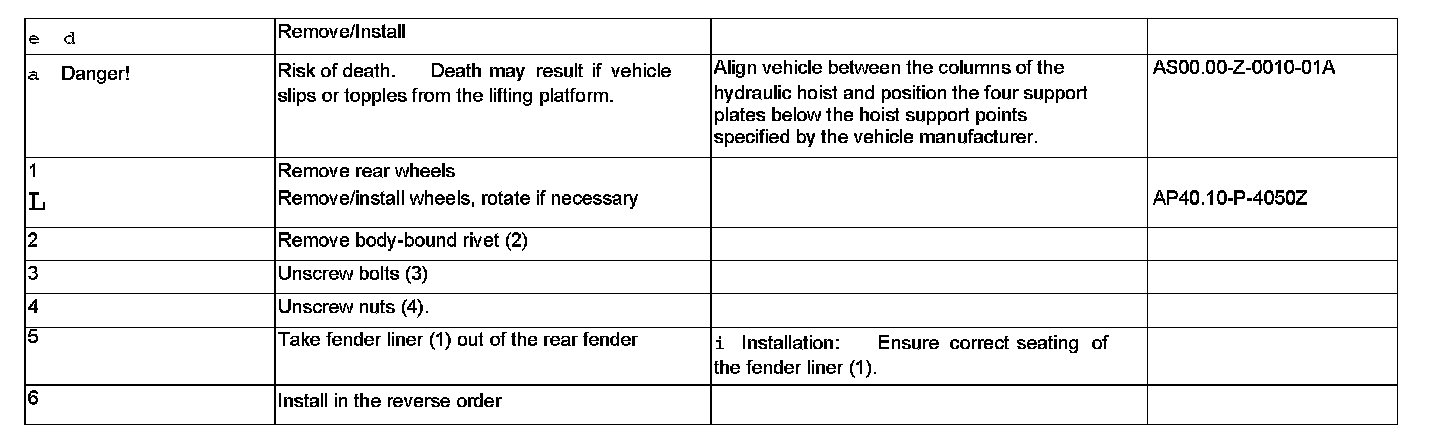

Steps 1 - 6:
