AR61.30-P-1001R Remove/Install Underbody Paneling
AR61.30-P-1001R Remove/Install Underbody Paneling
AR61.30-P-1001R Remove/Install Underbody Paneling

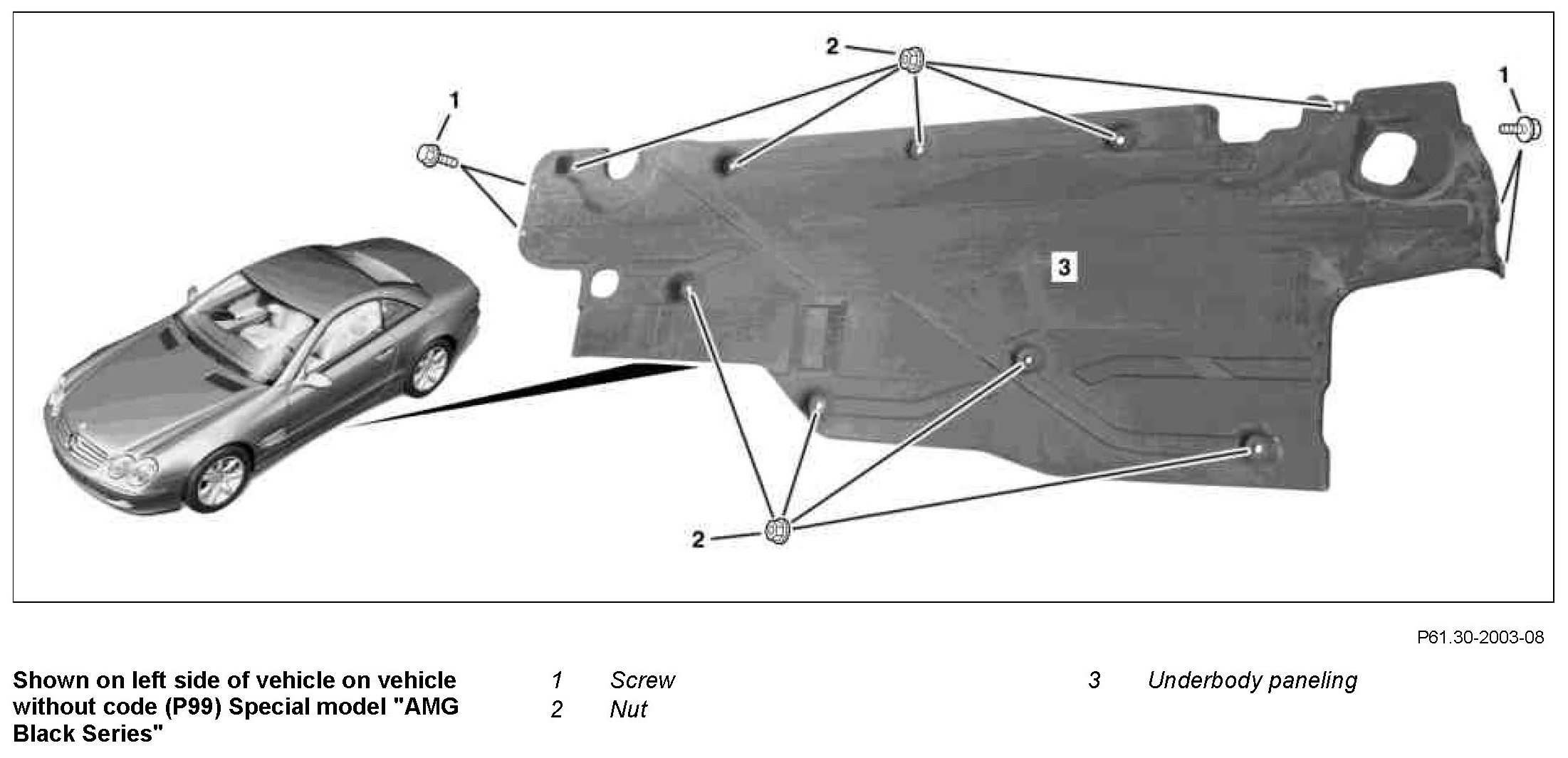

Component Identification:

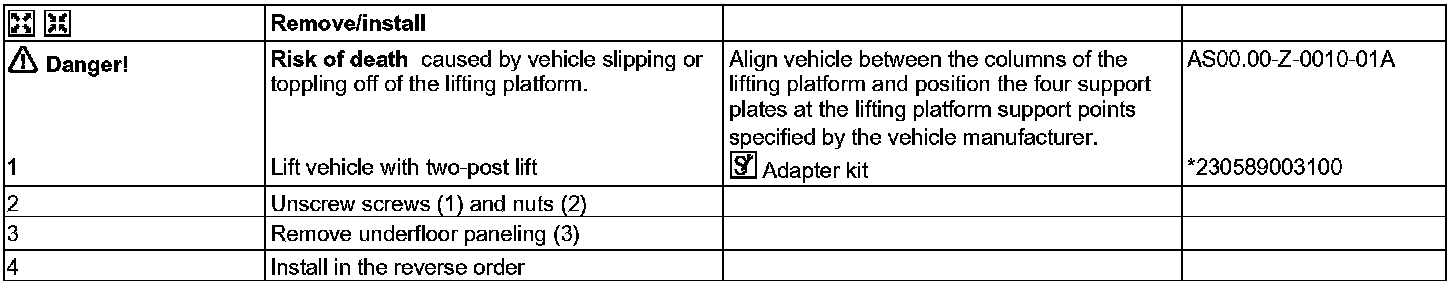

Steps 1 - 4:
Special Tools:
