Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Front Door >> Front Door Panel >> Service and Repair

Front Door Panel: Service and Repair

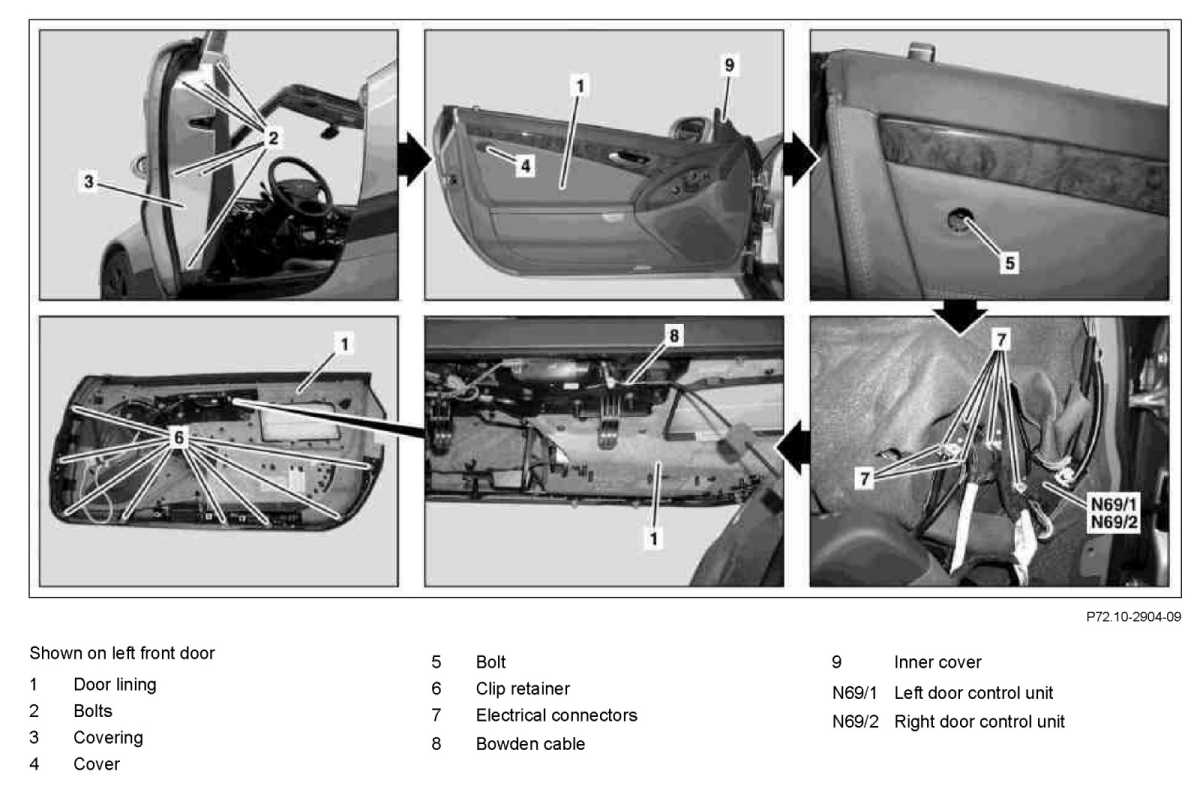

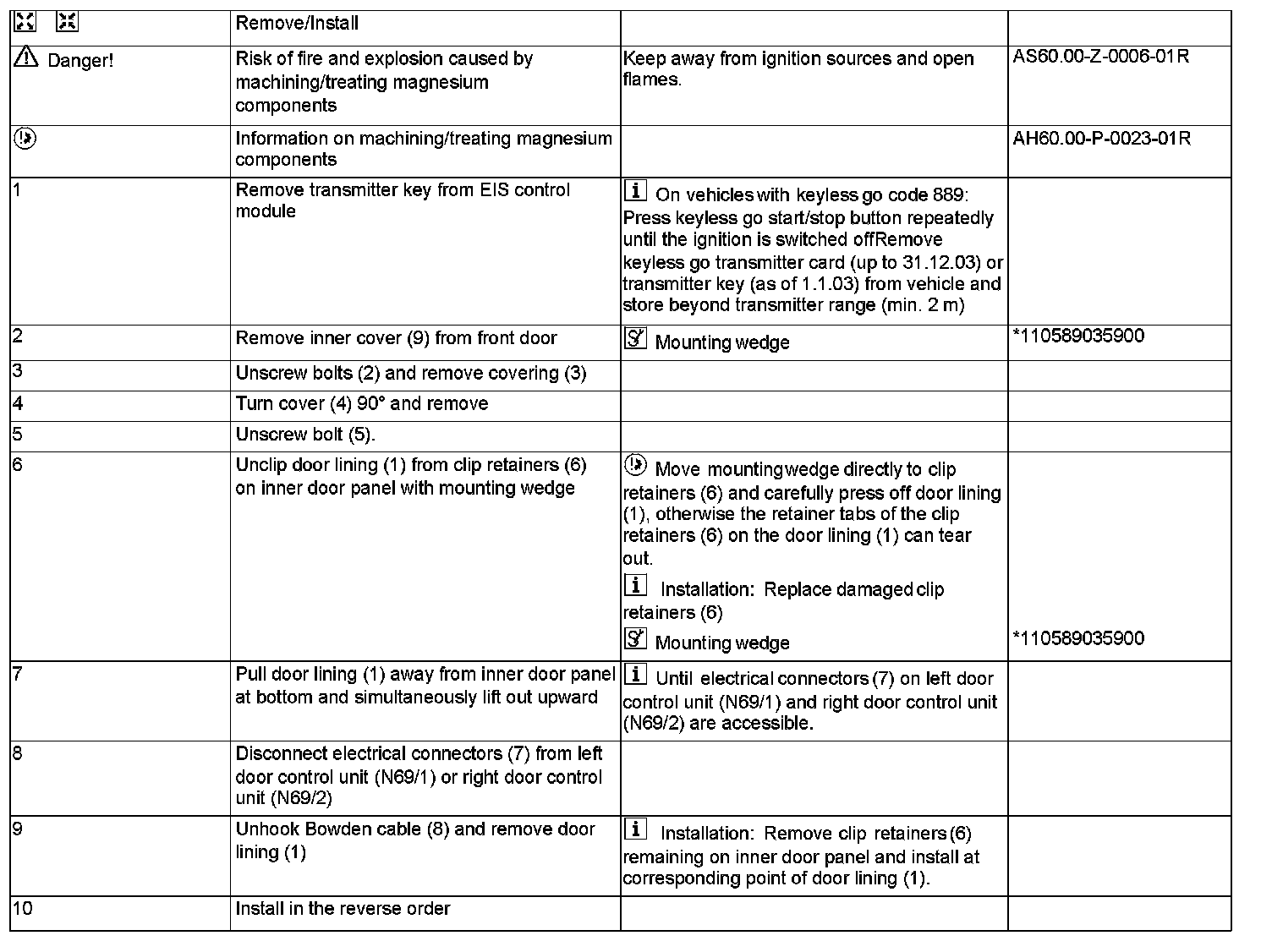

AR72.10-P-1000R Remove/Install Door Lining

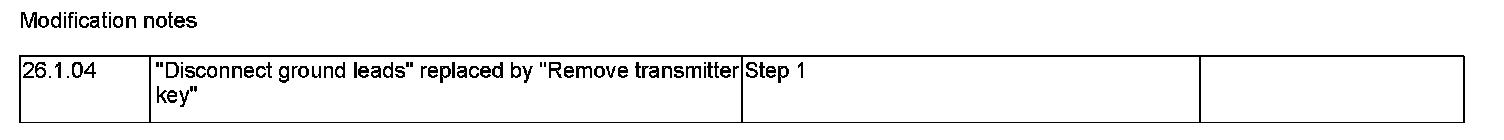

Modification Notes:
