Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Front Door >> Front Door Latch >> Service and Repair

Front Door Latch: Service and Repair

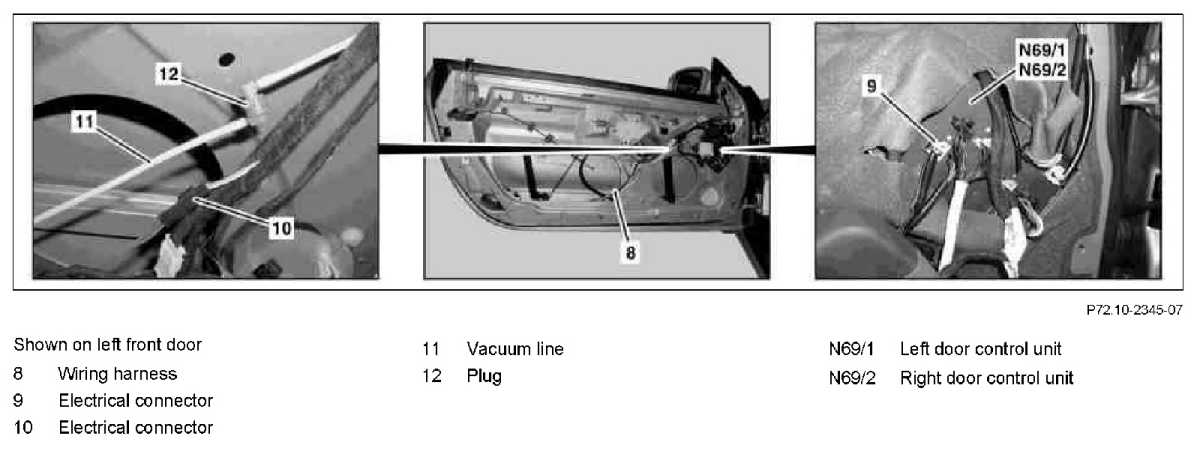

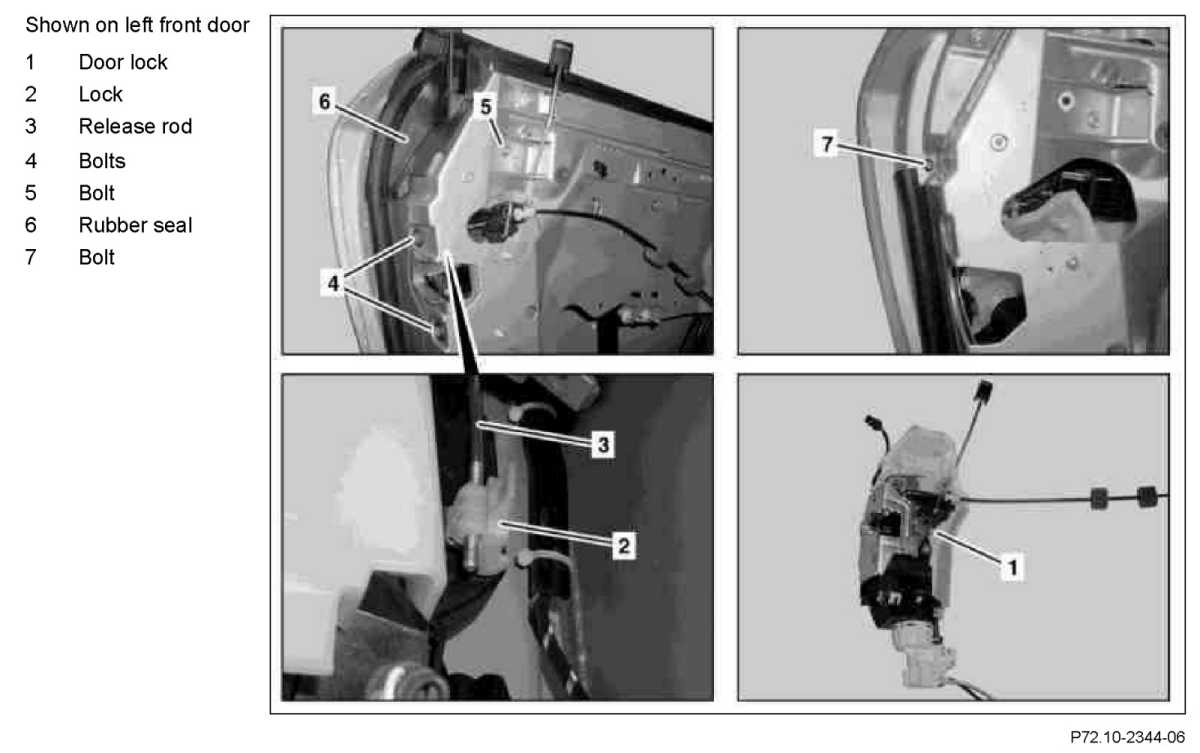

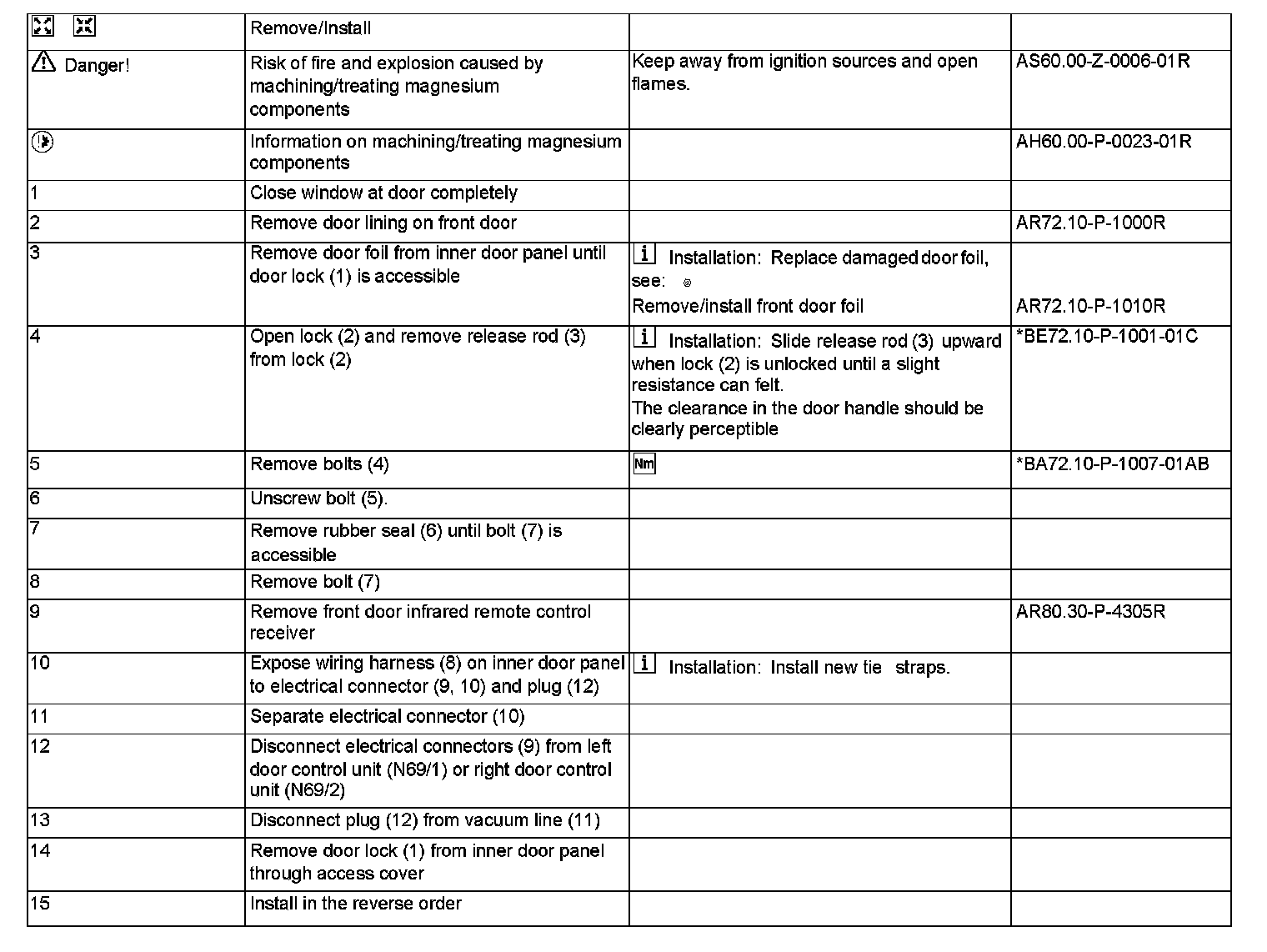

AR72.10-P-4011R Remove/Install Front Door Lock

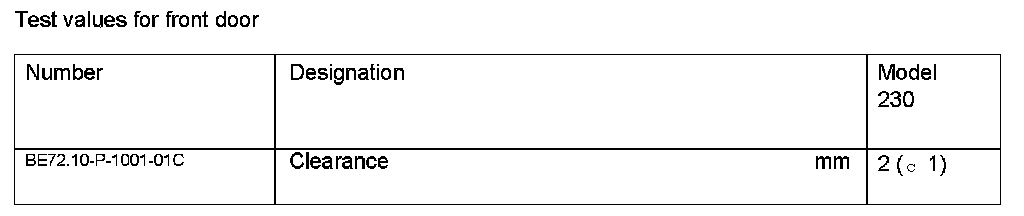

Values For Front Door:






Front Door:
