Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Service and Repair >> AR82.62-P-7833R Remove/Install Loudspeaker In Instrument Panel

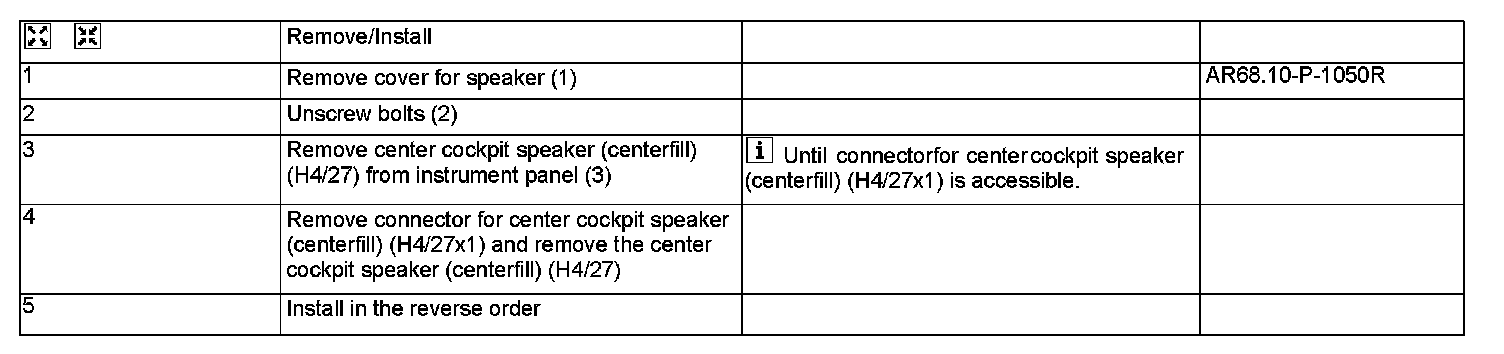

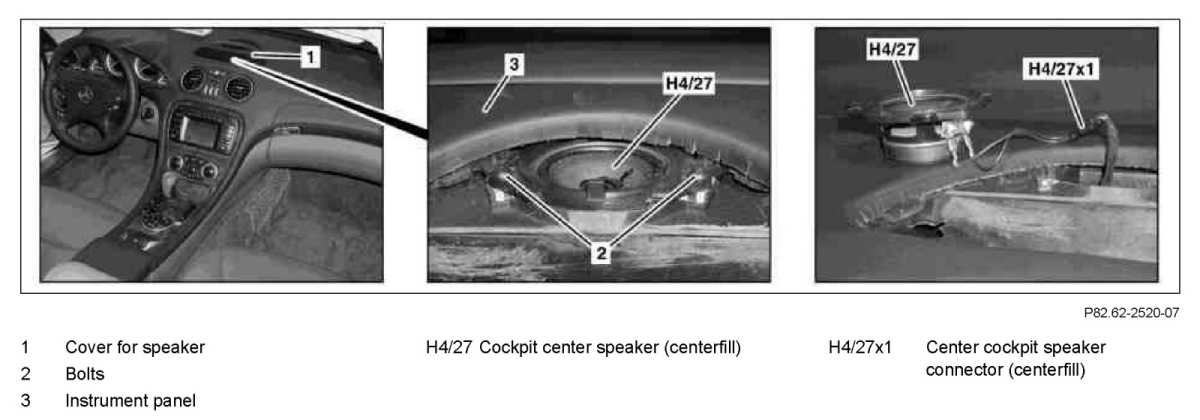

AR82.62-P-7833R Remove/Install Loudspeaker In Instrument Panel



AR82.62-P-7833R Remove/Install Loudspeaker In Instrument Panel
- with CODE (810) Sound system
