PE82.60-P-2301KC Wiring Diagram For Satellite Digital Audio Radio System Control Unit (SDAR)

Wiring Diagram For Satellite Digital Audio Radio System Control Unit (SDAR) PE82.60-P-2301KC
- with CODE (494) USA version
- control unit N87/5
- refinement package
- as of model year 2009

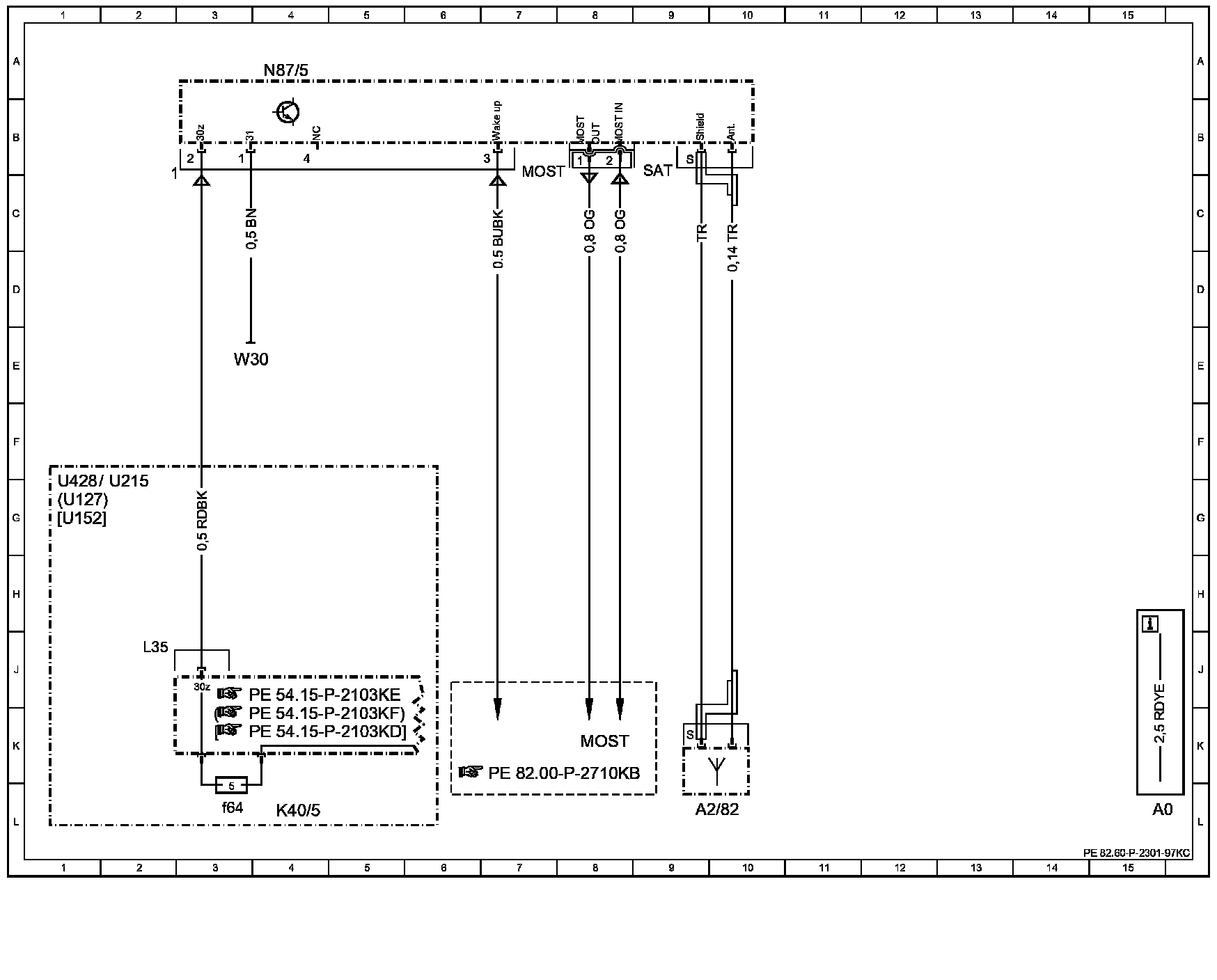

Wiring Diagram:

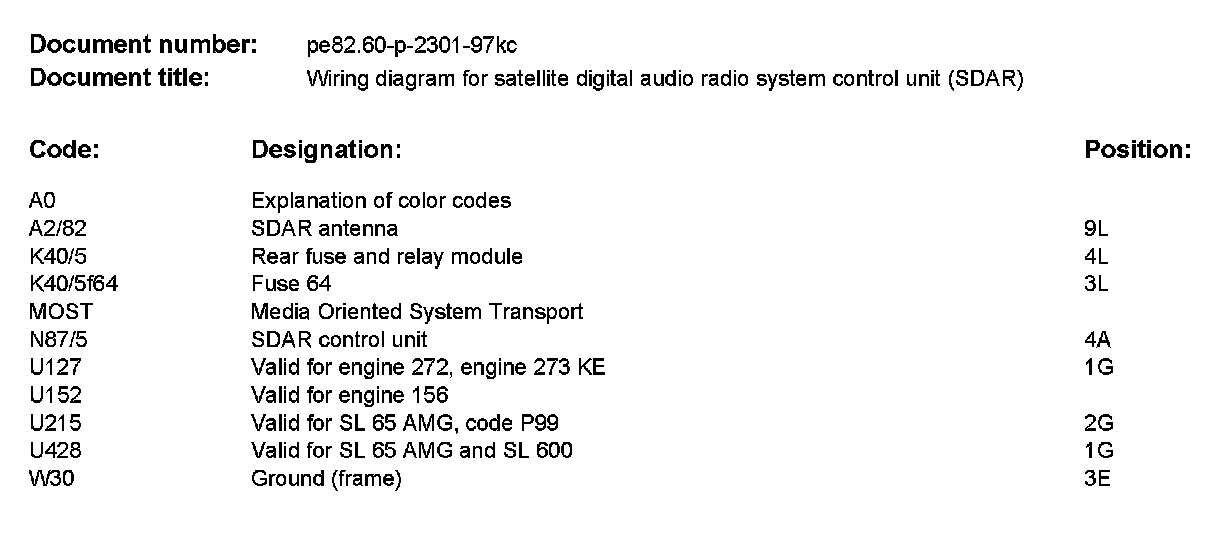

Component Description/Coordinates A0 To W30:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
