Removal and Replacement



AR82.85-P-7366RA Remove/Install TV Tuner
- with CODE (860) TV tuner

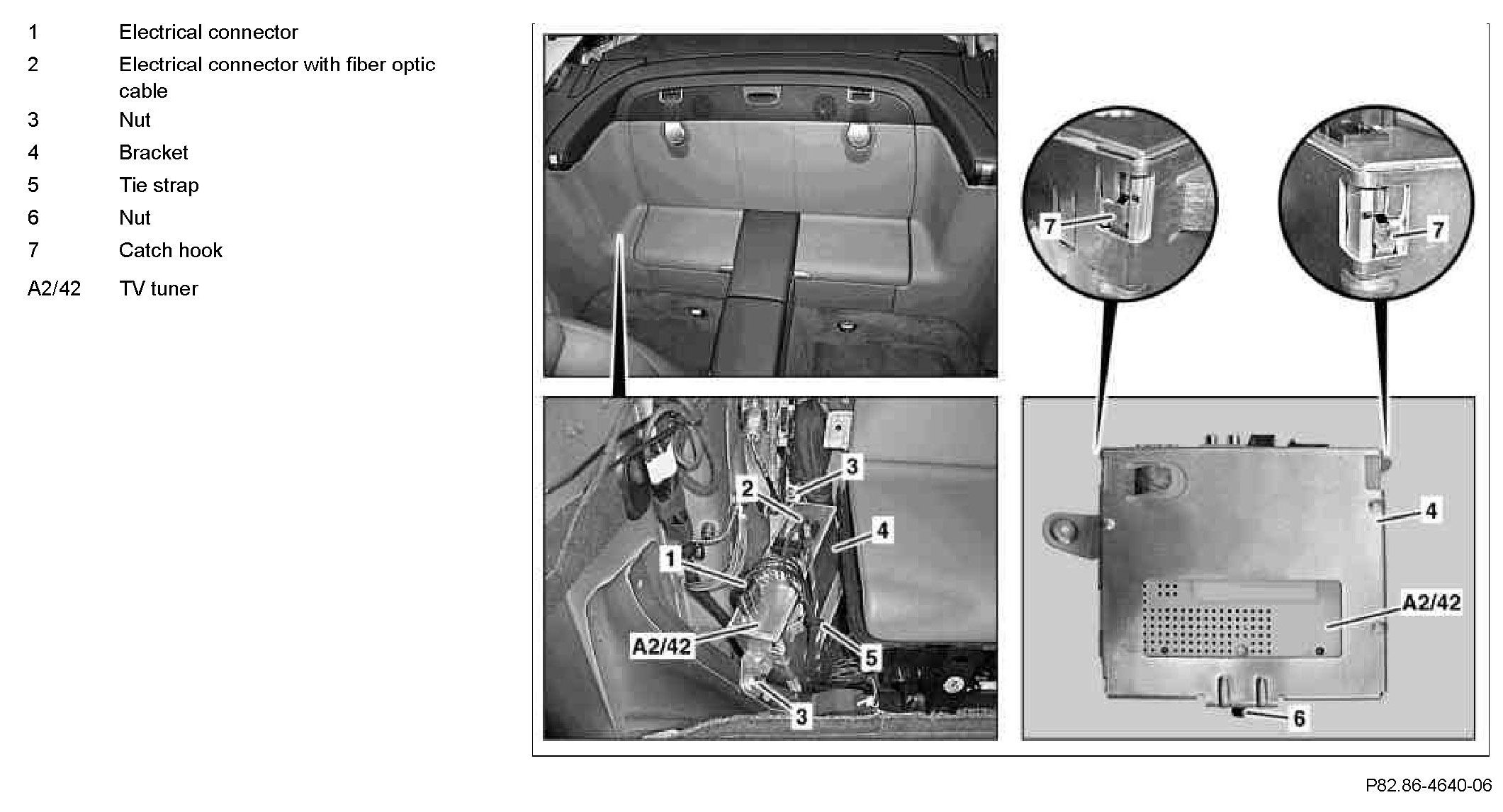

Component Identification:

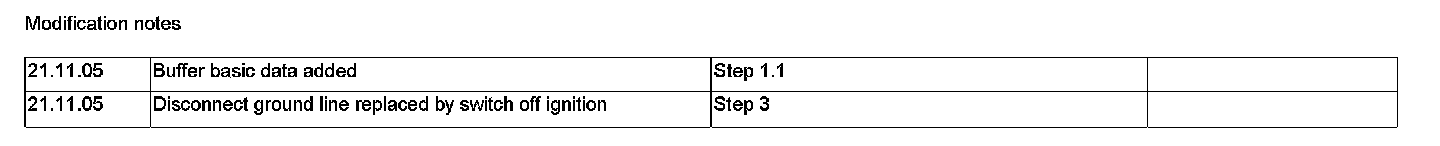

Modification Notes:

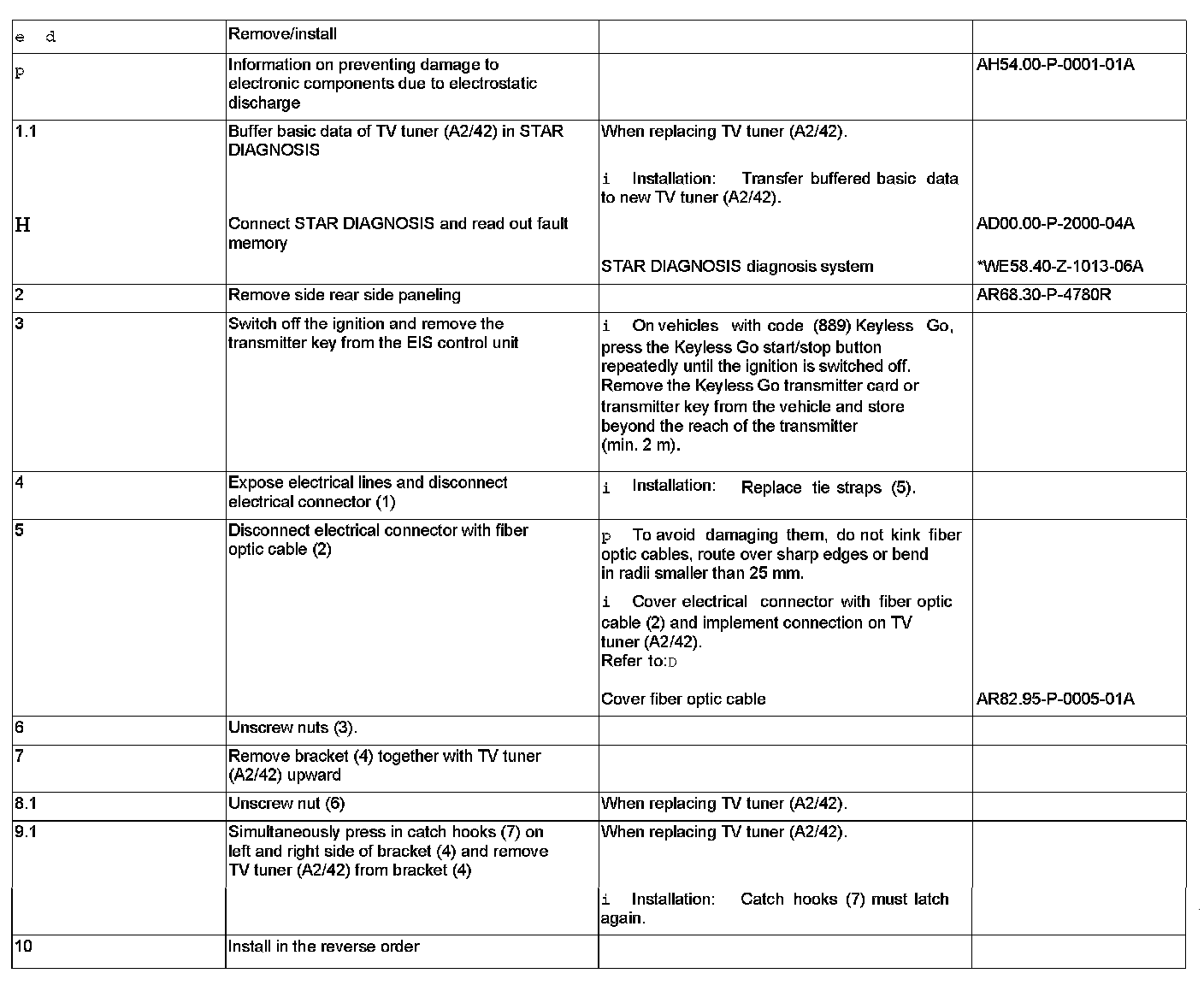

Steps 1.1 - 10:

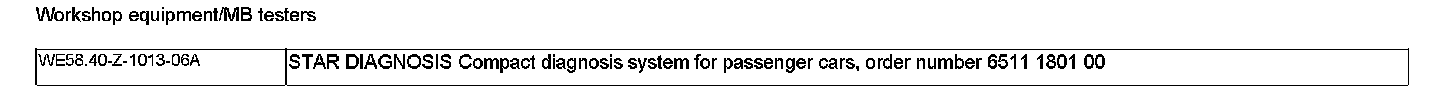

Workshop Equipment/MB Testers:
