PE80.61-P-2051KA Electrical Function Schematic For Keyless-Go Locking and Unlocking

Electrical Function Schematic For KEYLESS-GO Locking And Unlocking PE80.61-P-2051KA
- with CODE (889) Keyless Go
- refinement package
- as of model year 2009

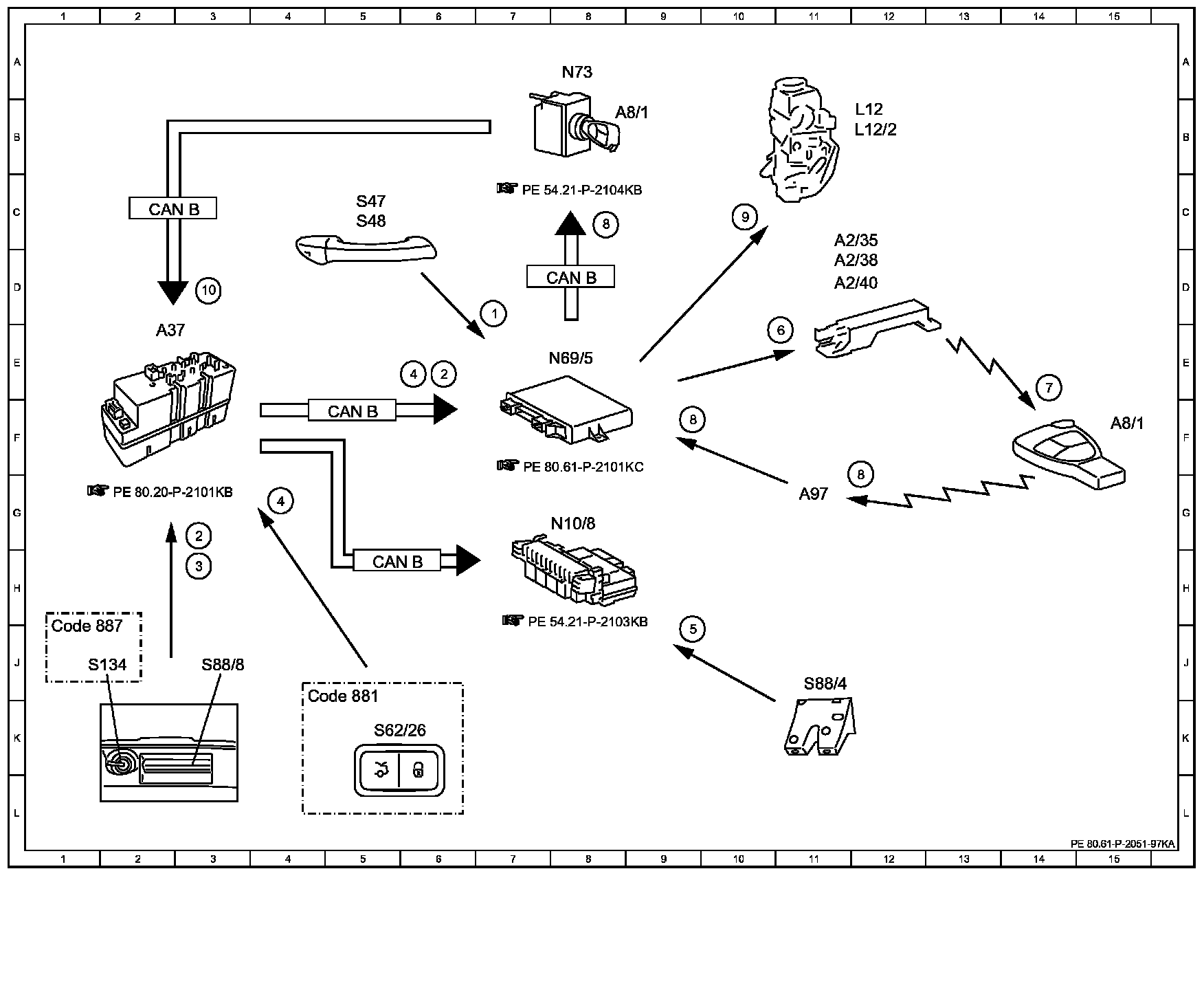

Function Diagram:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
