GF82.62-P-6000RI Rear Shelf Antenna Amplifier, Component Description

GF82.62-P-6000RI Rear Shelf Antenna Amplifier, Component Description

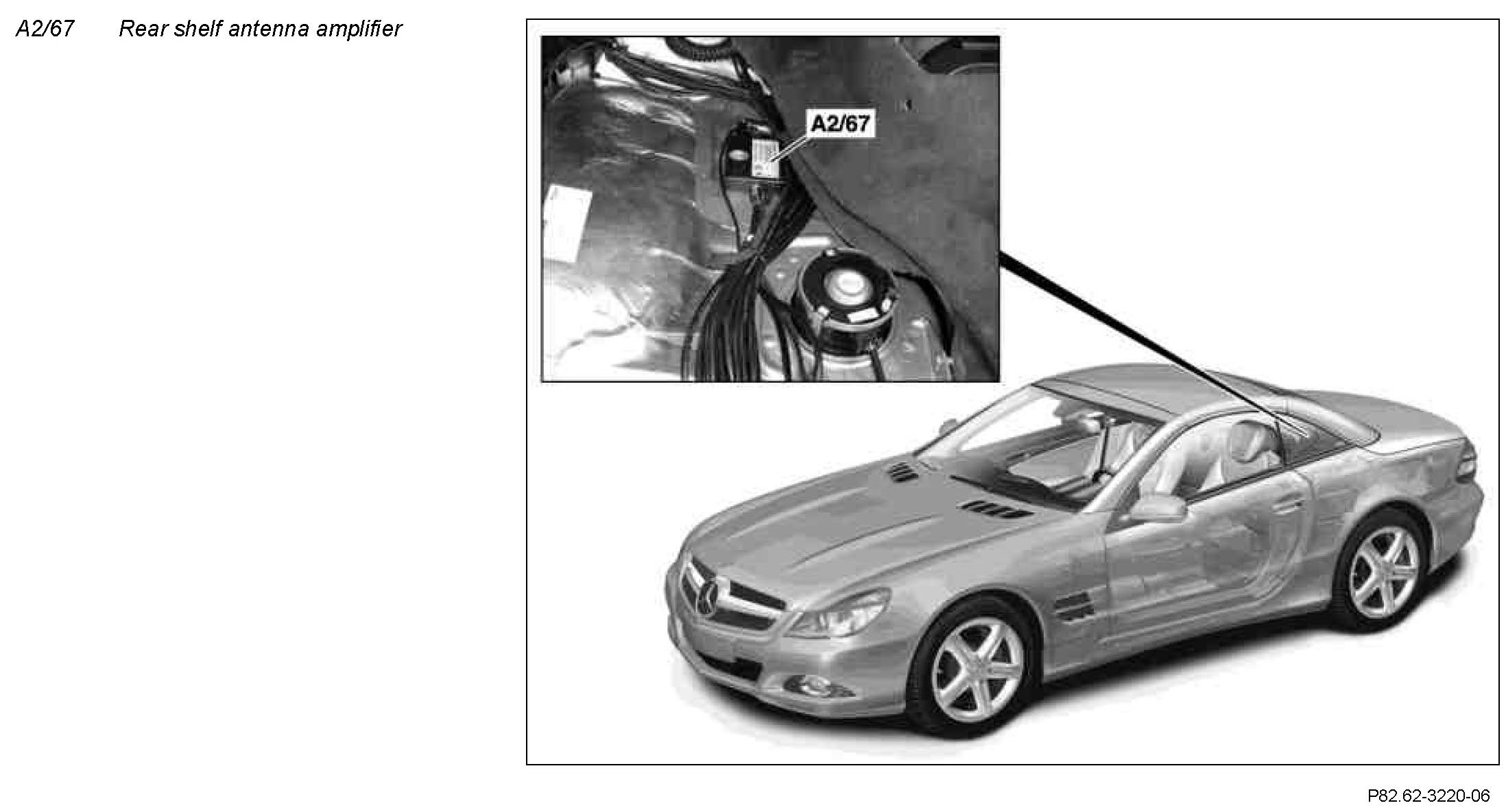

Component Identification:

Location
The rear shelf antenna amplifier is located in the area of the rear shelf at the left rear.

Task
The rear shelf antenna amplifier has the following tasks:
^ Receiving, amplifying and forwarding AM radio signals
^ Selection of signal source for AM radio signals using an integrated antenna selector switch
^ Other inputs

Receiving, amplifying and forwarding AM radio signals
AM radio signals from the rear window antenna amplifier module (A2/12) or from the rear shelf antenna (A2/68) are received via a direct line, amplified and then forwarded via another direct line to the left antenna amplifier module (A2/64).

Selection of signal source for AM radio signals using an integrated antenna selector switch
The selection of the signal source for AM radio reception corresponds with the soft top status:
- Closed status = rear window antenna amplifier module
- Opened status = rear shelf antenna

Other inputs

Direct lines
- Circuit 30 power supply
- Limit switch status for soft top
