GF82.62-P-3150RI Windshield Antennas, Component Description

GF82.62-P-3150RI Windshield Antennas, Component Description

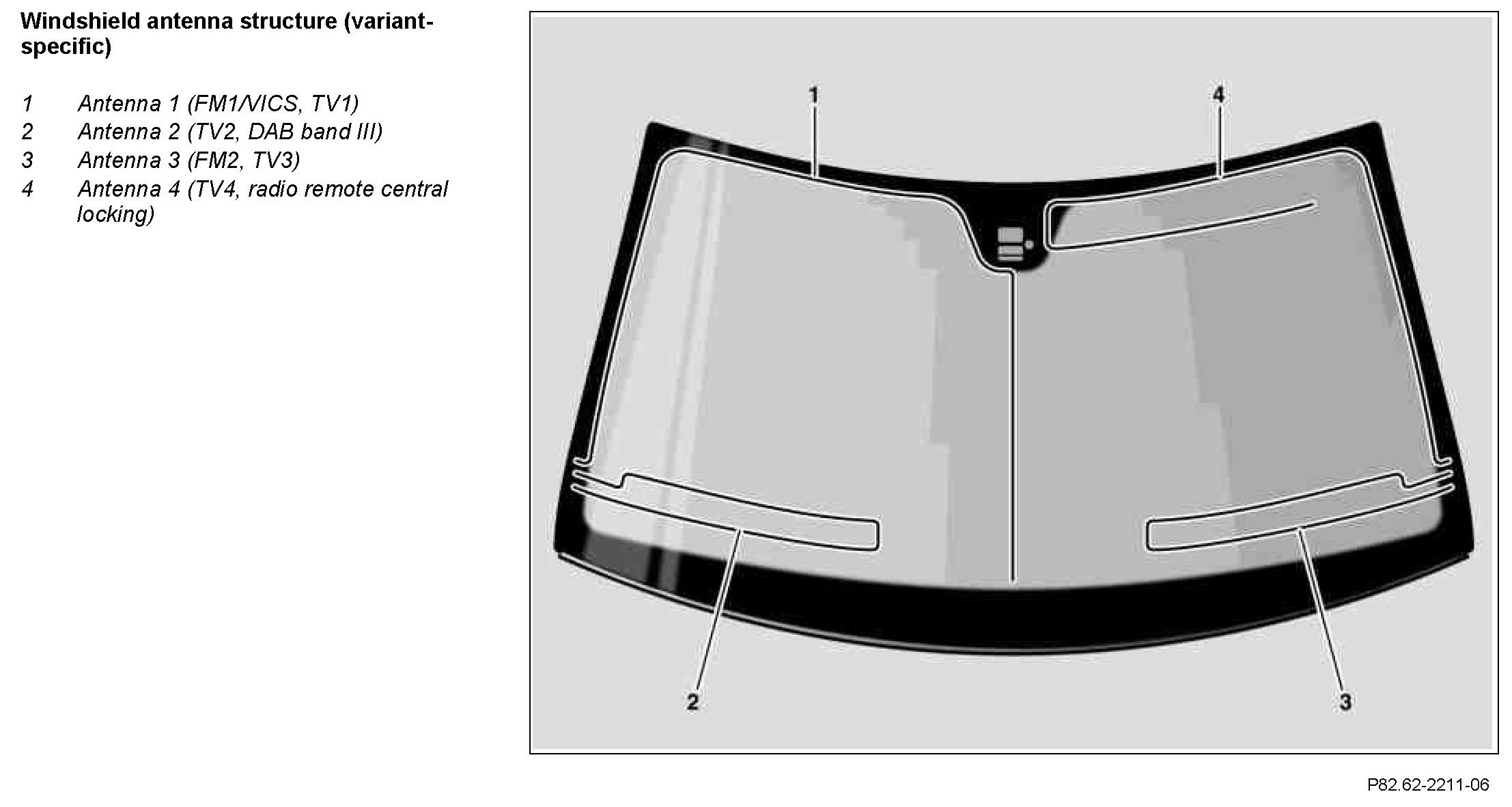

Component Identification:

Task
The task of the following windshield antennas is to receive radio signals and forward them to the left antenna amplifier module (A2/64) or right antenna amplifier module (A2/65):
^ Antenna 1
^ Antenna 2
^ Antenna 3
^ Antenna 4

Antenna 1
Direct line
- Receiving, amplifying and forwarding FM1 radio signals to the left antenna amplifier module
- Receiving, amplifying and forwarding Vehicle Information and Communication System (VICS) radio signals in the FM band to the left antenna amplifier module, with code (498) Japan version
- Receiving, amplifying and forwarding TV1 signals to the left antenna amplifier module, with code (863) Digital/ analog TV tuner or code (865) TV tuner

Antenna 2
Discrete lines
- Receiving, amplifying and forwarding TV2 signals to the left antenna amplifier module, with code (863) Digital/ analog TV tuner or code (865) TV tuner
- Receiving and forwarding of DAB band III signals to the left antenna amplifier module, with code (537) Digital radio and code (833) Great Britain version

Antenna 3
Discrete lines
- Receiving, amplifying and forwarding FM1 radio signals to the right antenna amplifier module
- Receiving, amplifying and forwarding TV3 signals to the right antenna amplifier module, with code (863) Digital/ analog TV tuner or code (865) TV tuner

Antenna 4
Direct line
- Receiving, amplifying and forwarding TV4 signals to the right antenna amplifier module, with code (863) Digital/ analog TV tuner or code (865) TV tuner
- Receiving and forwarding radio remote central locking (RRCL [FZV]) signals to the right antenna amplifier module
