GF82.95-P-4004RIU Emergency Call System Backup Antenna, Component Description

GF82.95-P-4004RIU Emergency Call System Backup Antenna, Component Description
- with CODE (359) TELE AID emergency call system

Component Identification:

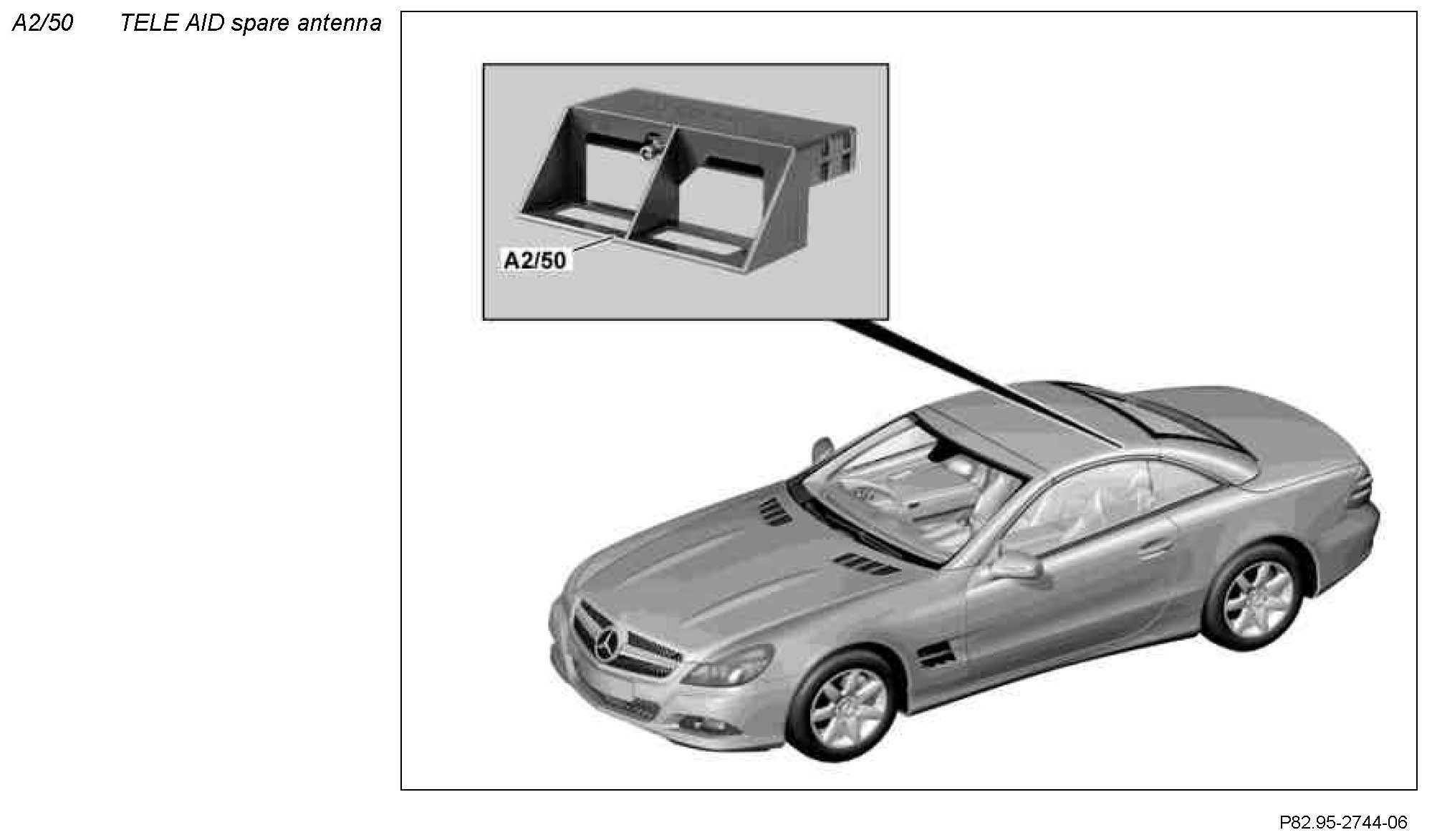

Location
The TELE AID backup antenna is located in the rear in the area between the head restraints.

Task
^ Transmission of mobile phone signals and data in the event of telephone antenna (A2/22) failure
^ Receiving signals
^ Transmitting signals

Transmission of mobile phone signals and data in the event of telephone antenna failure
- Transfer of the mobile phone signals and data to and from the emergency call system control unit (N123/4) in the event of telephone antenna failure (e.g. defective due to rollover)

Receiving signals

Discrete lines
- Mobile phone signals and data from emergency call system control unit

Transmitting signals

Discrete lines
- Mobile phone signals and data to emergency call system control unit
