GF82.62-P-4117RI Telephone Antenna, Component Description

GF82.62-P-4117RI Telephone Antenna, Component Description
- with CODE (359) TELE AID emergency call system
- with CODE (386) Mobile phone
- Comfort telephony
- with CODE (389) Mobile phone preinstallation with universal interface, USA/Canada
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- Basic telephony

Component Identification:

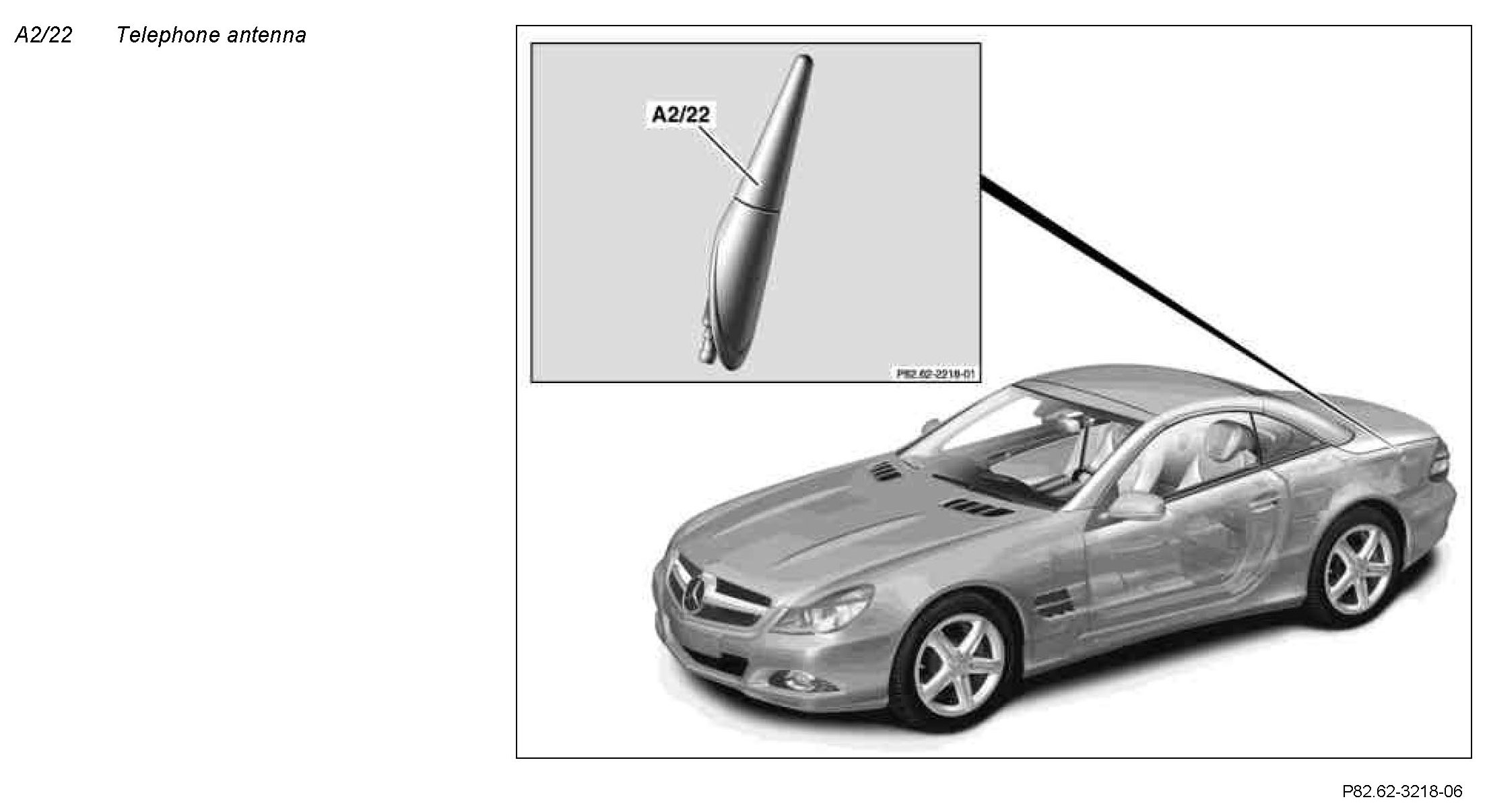

Location
The telephone antenna is installed at the left rear fender.

Task
The telephone antenna has the following tasks:
^ Receiving signals
^ Transmitting signals

Receiving signals
- Receiving mobile phone signals or mobile phone data

Transmitting signals
- Transmitting mobile phone signals or mobile phone data to the cell phone separation point (X39/37), with code (527) COMAND APS with single DVD drive (with navigation)
- Transmitting mobile phone signals or mobile phone data to the UPCI [UHI] cell phone holder (Universal Portable Cell Phone Interface) (A34/15), with code (386) Mobile phone
- Transmitting mobile phone signals or mobile phone data via the frequency switchover control unit (N96) to the UPCI [UHI] cell phone holder (Universal Portable Cell Phone Interface) and the emergency call system control unit (N123/4), with code (359) TELE AID emergency call system and code (389) Mobile phone preinstallation with universal interface, USA/Canada
