Home >> Mercedes Benz >> 2009 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Accessory Control Display >> Service and Repair >> AR82.85-P-7472RA Remove/Install Operating, Display and Control Unit

AR82.85-P-7472RA Remove/Install Operating, Display and Control Unit



AR82.85-P-7472RA Remove/Install Operating, Display and Control Unit

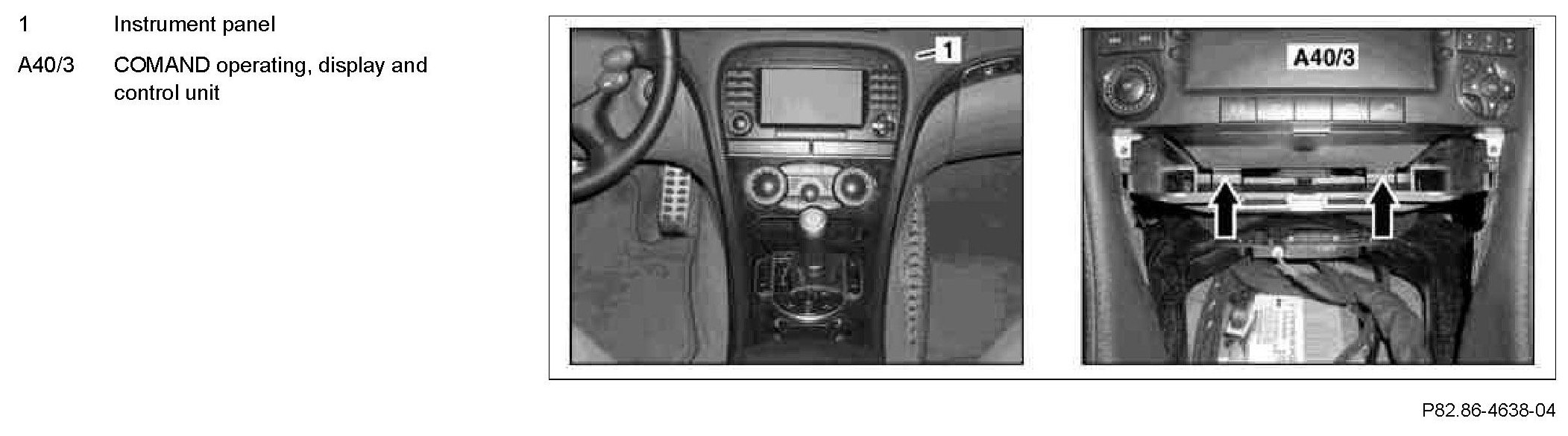

Component Identification:




Modification Notes:

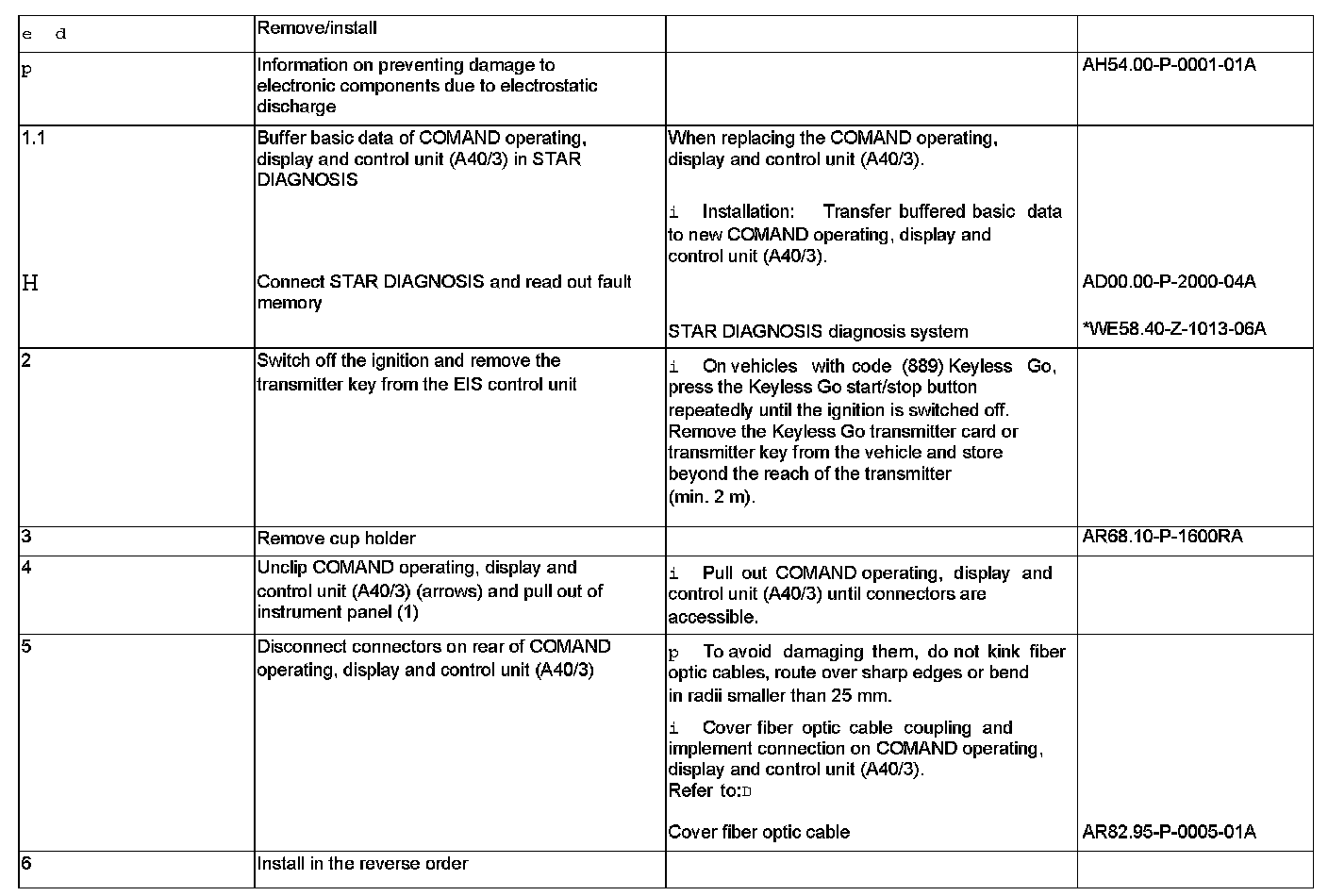

Steps 1.1 - 6:

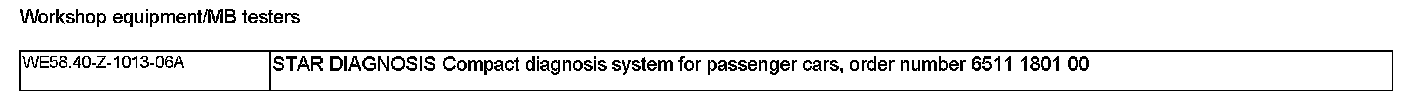

Workshop Equipment/MB Testers:
