PE82.85-P-2101KG Cockpit Management and Data System (COMAND) Control Unit Wiring Diagram

Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram PE82.85-P-2101KG
- with CODE (498) Japan version
- control unit A40/3
- refinement package
- as of model year 2009

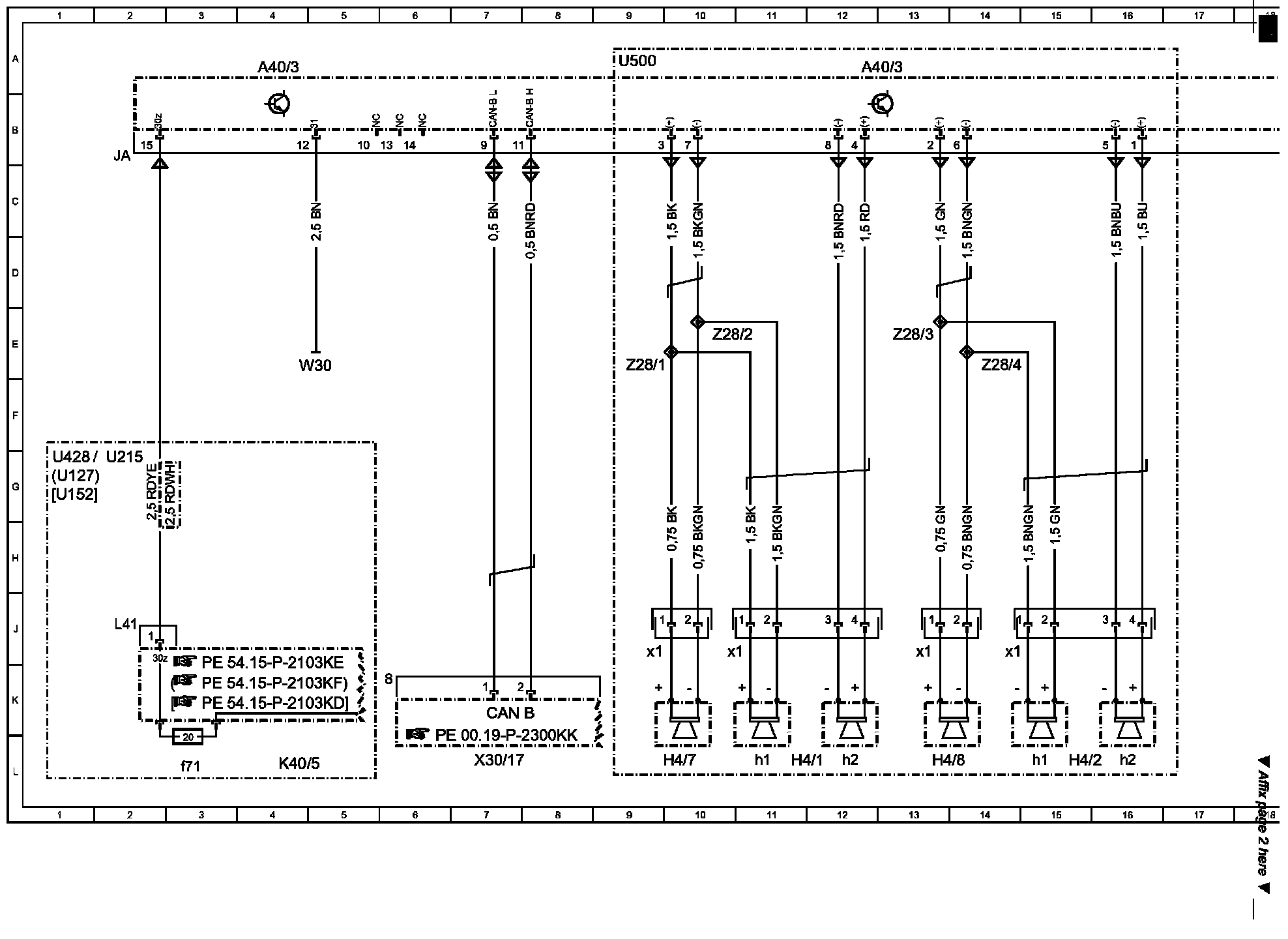

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

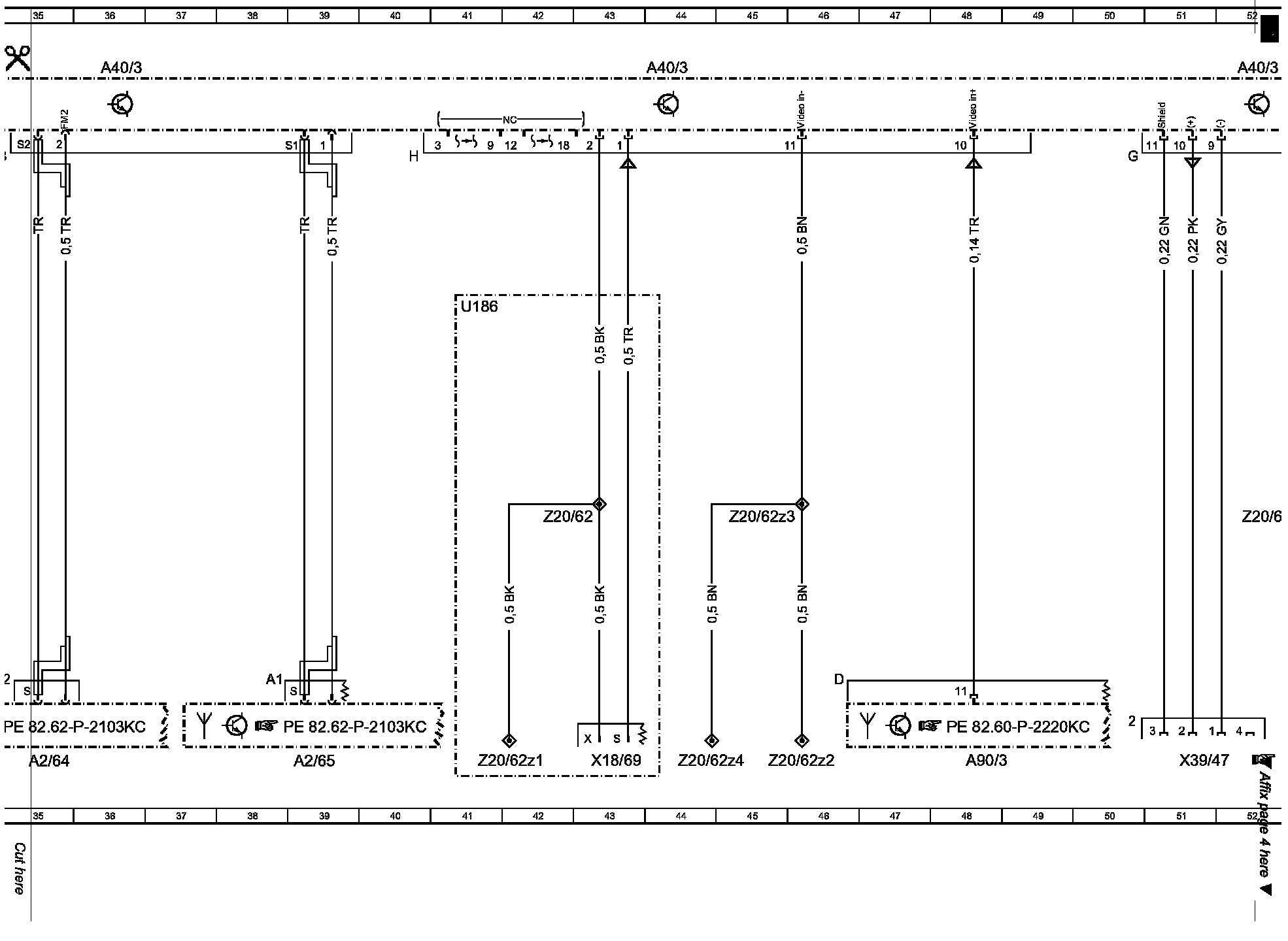

Wiring Diagram (Part 3):

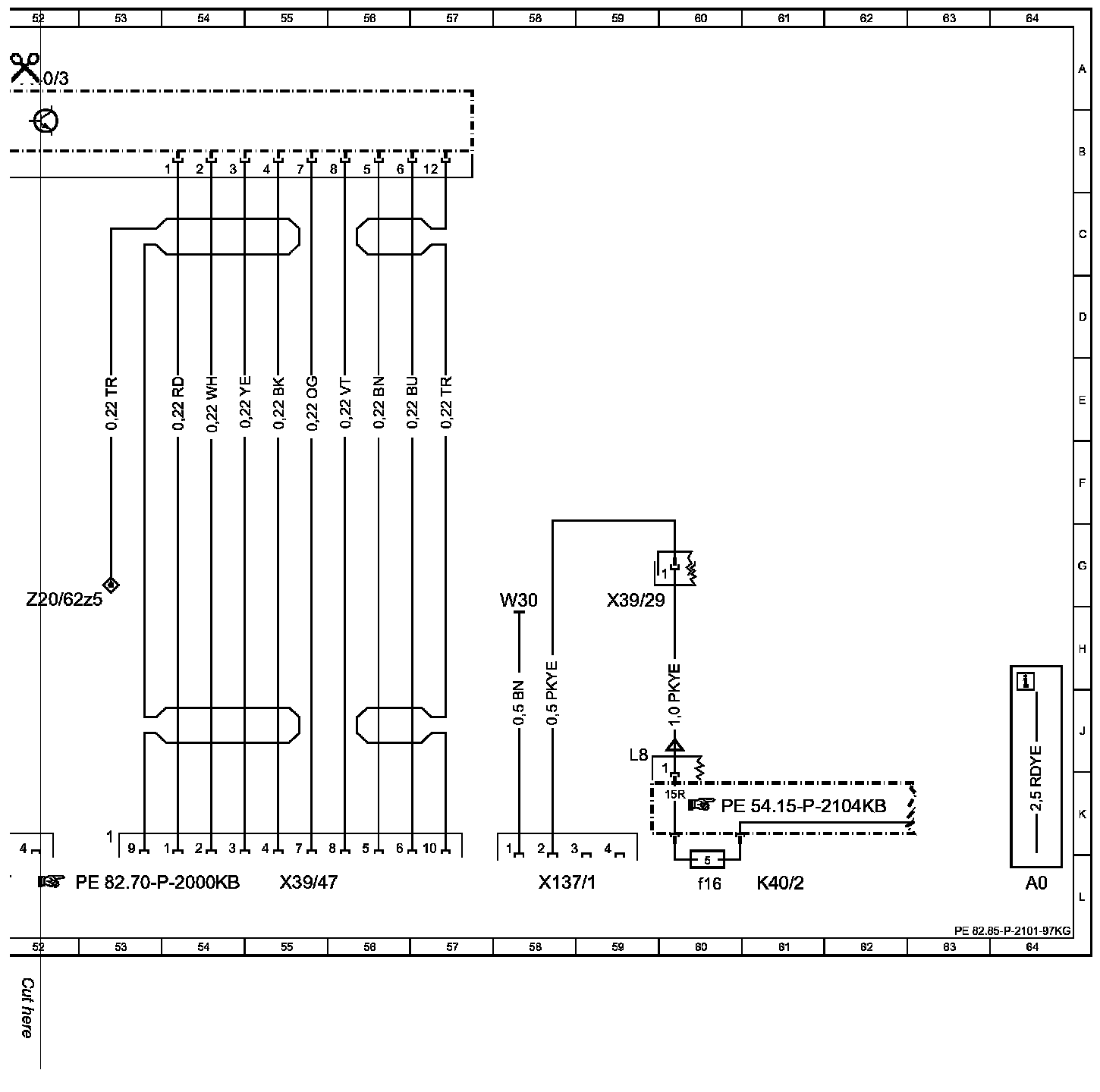

Wiring Diagram (Part 4):

Component Description/Coordinates, A0 To U644:

Component Description/Coordinates, W30 To Z28/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
