PE82.85-P-2101KF Cockpit Management and Data System (COMAND) Control Unit Wiring Diagram

Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram PE82.85-P-2101KF
- with CODE (494) USA version
- with CODE (528) High Class USA
- control unit A40/3
- refinement package
- as of model year 2009

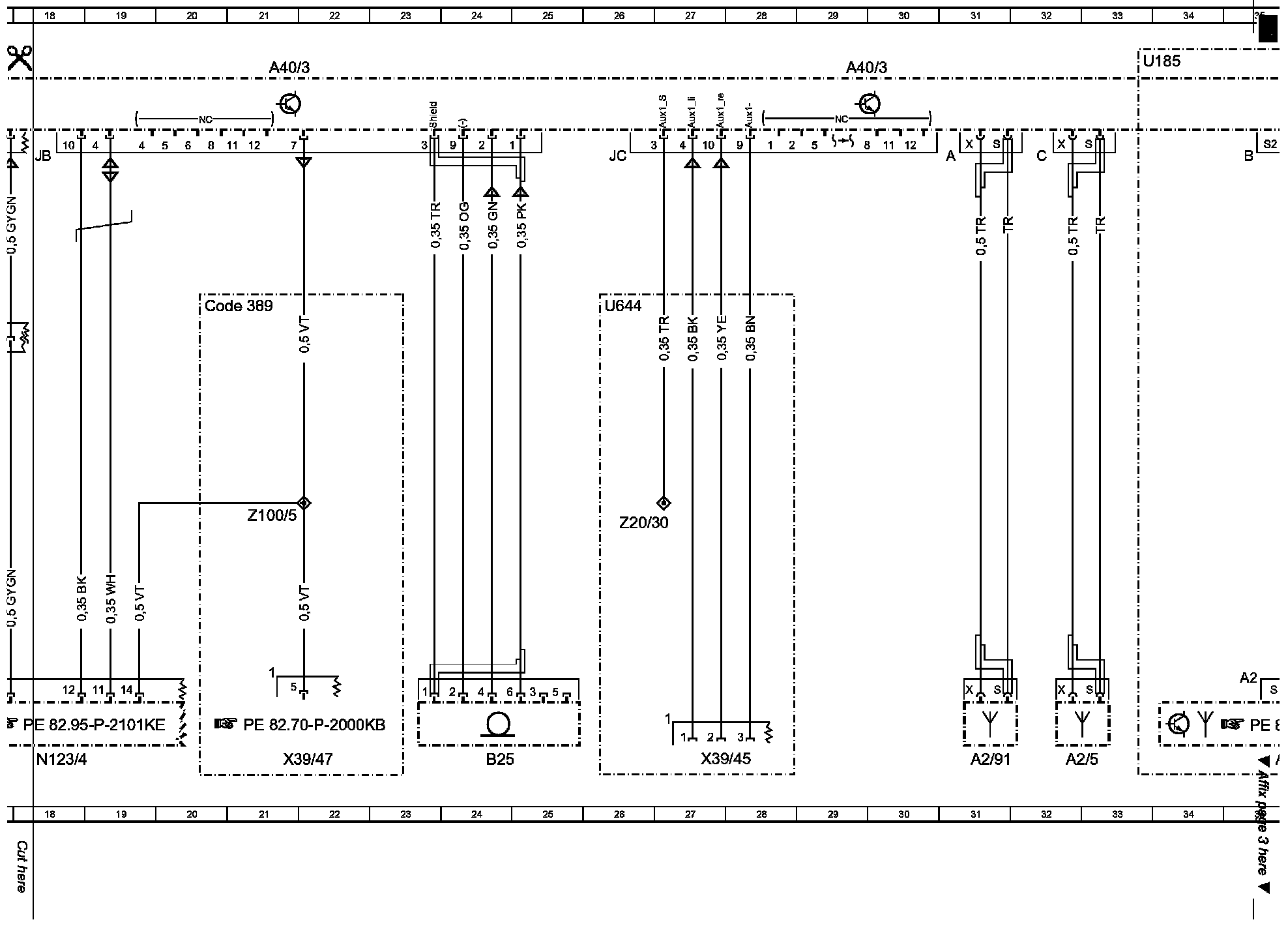

Wiring Diagram (Part 1):

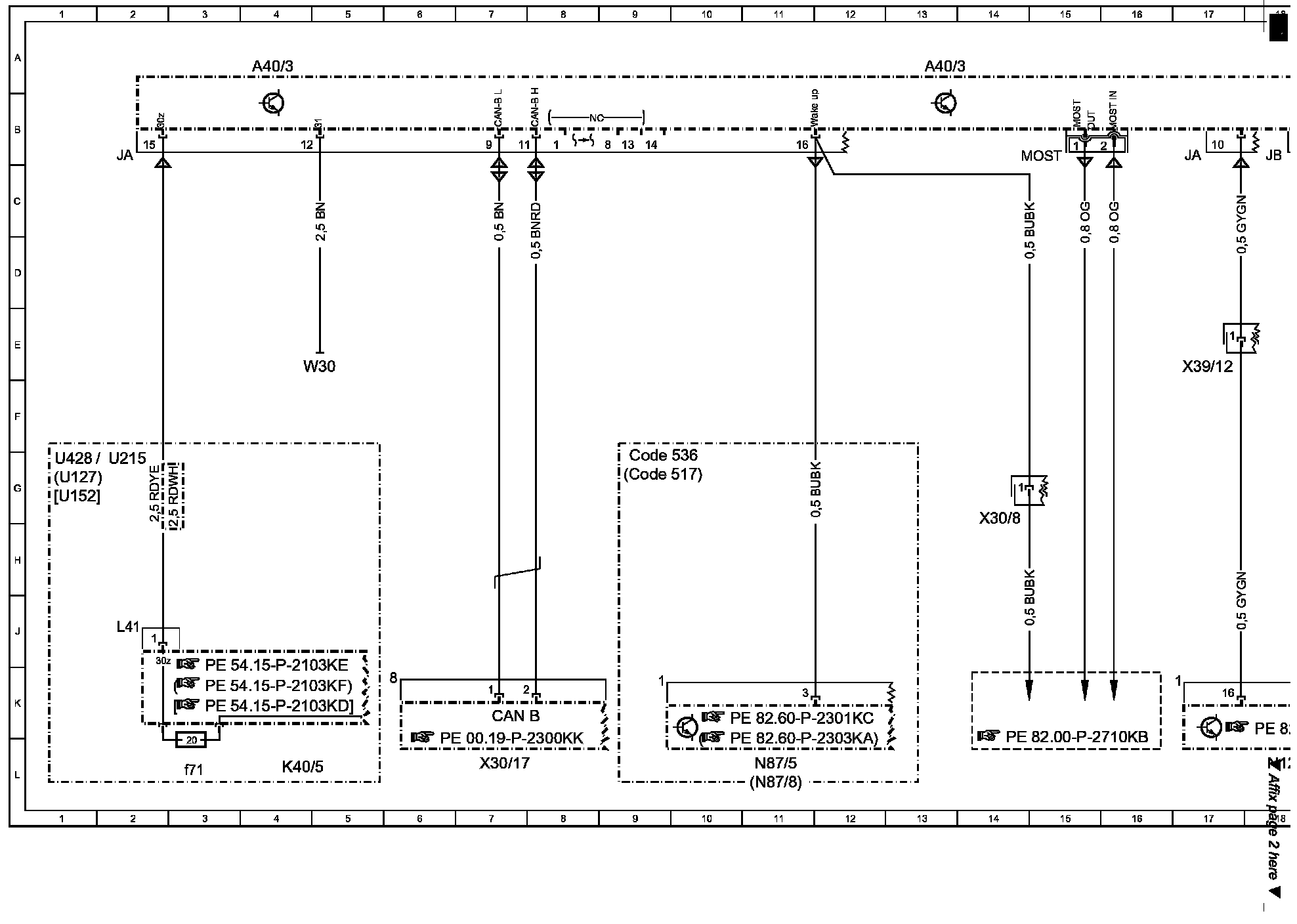

Wiring Diagram (Part 2):

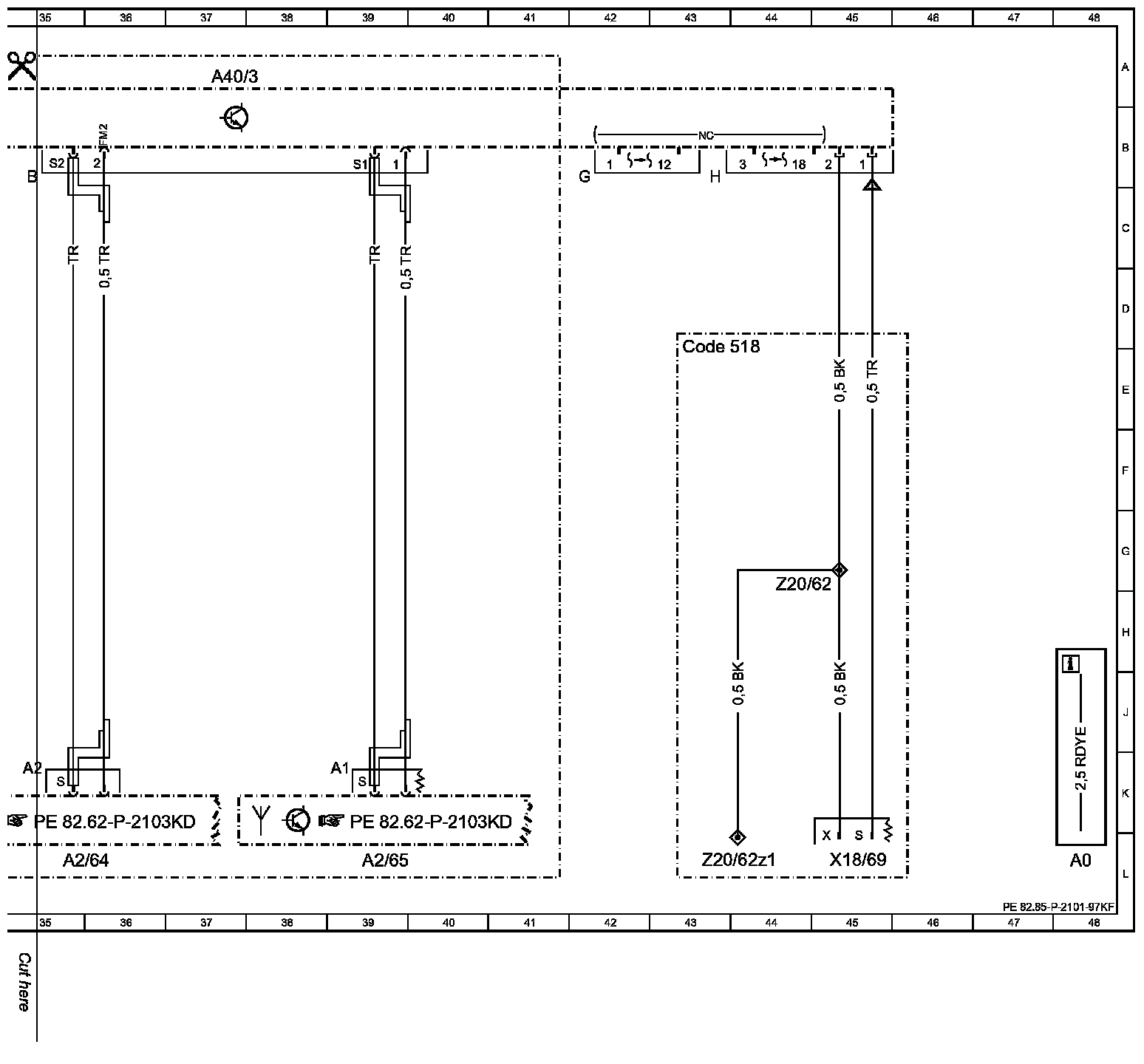

Wiring Diagram (Part 3):

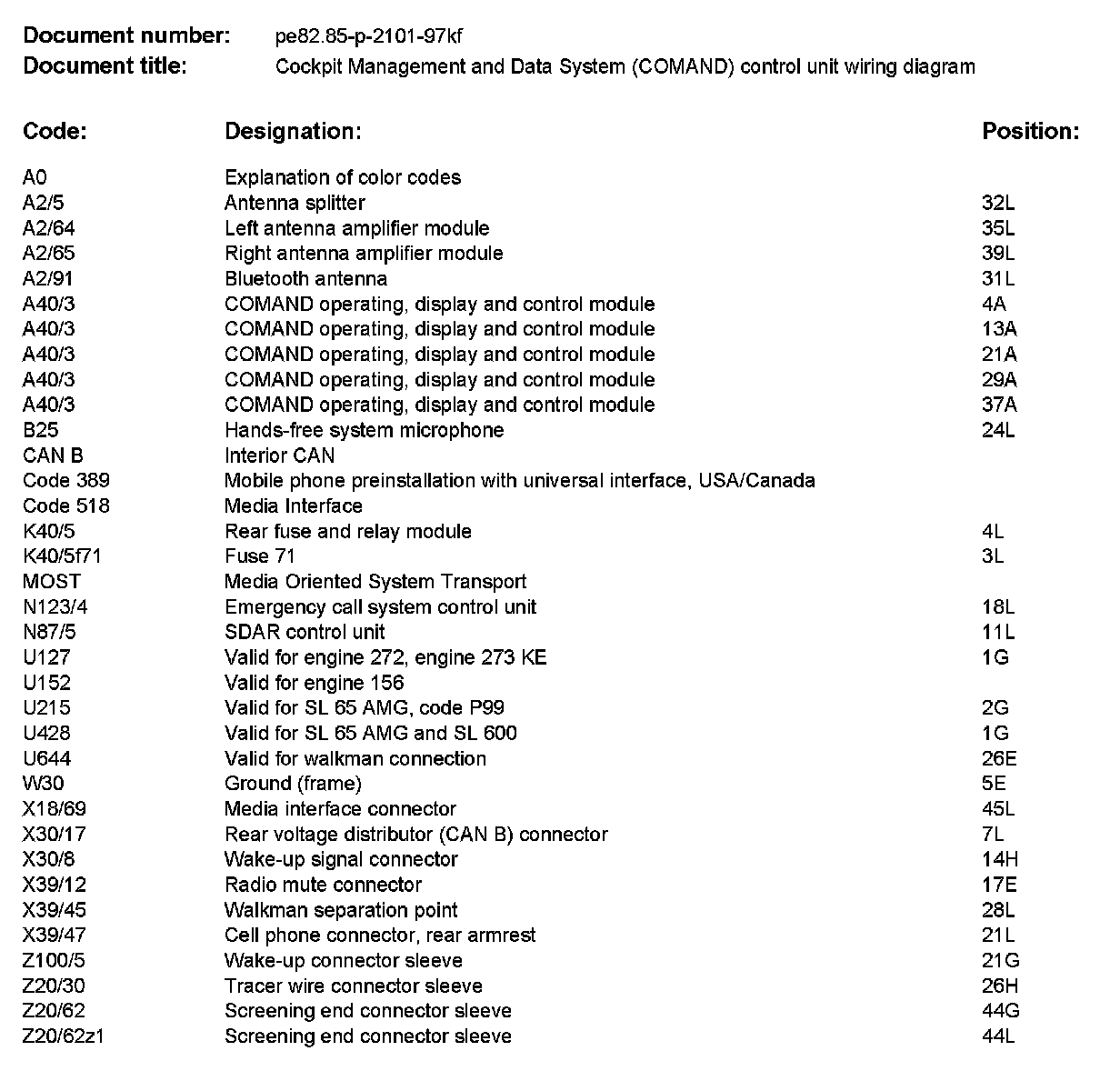

Component Description/Coordinates, A0 To Z20/62z1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
