PE82.85-P-2101KE Cockpit Management and Data System (COMAND) Control Unit Wiring Diagram

Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram PE82.85-P-2101KE
- except CODE (498) Japan version
- except CODE (494) USA version
- refinement package
- control unit A40/3
- as of model year 2009

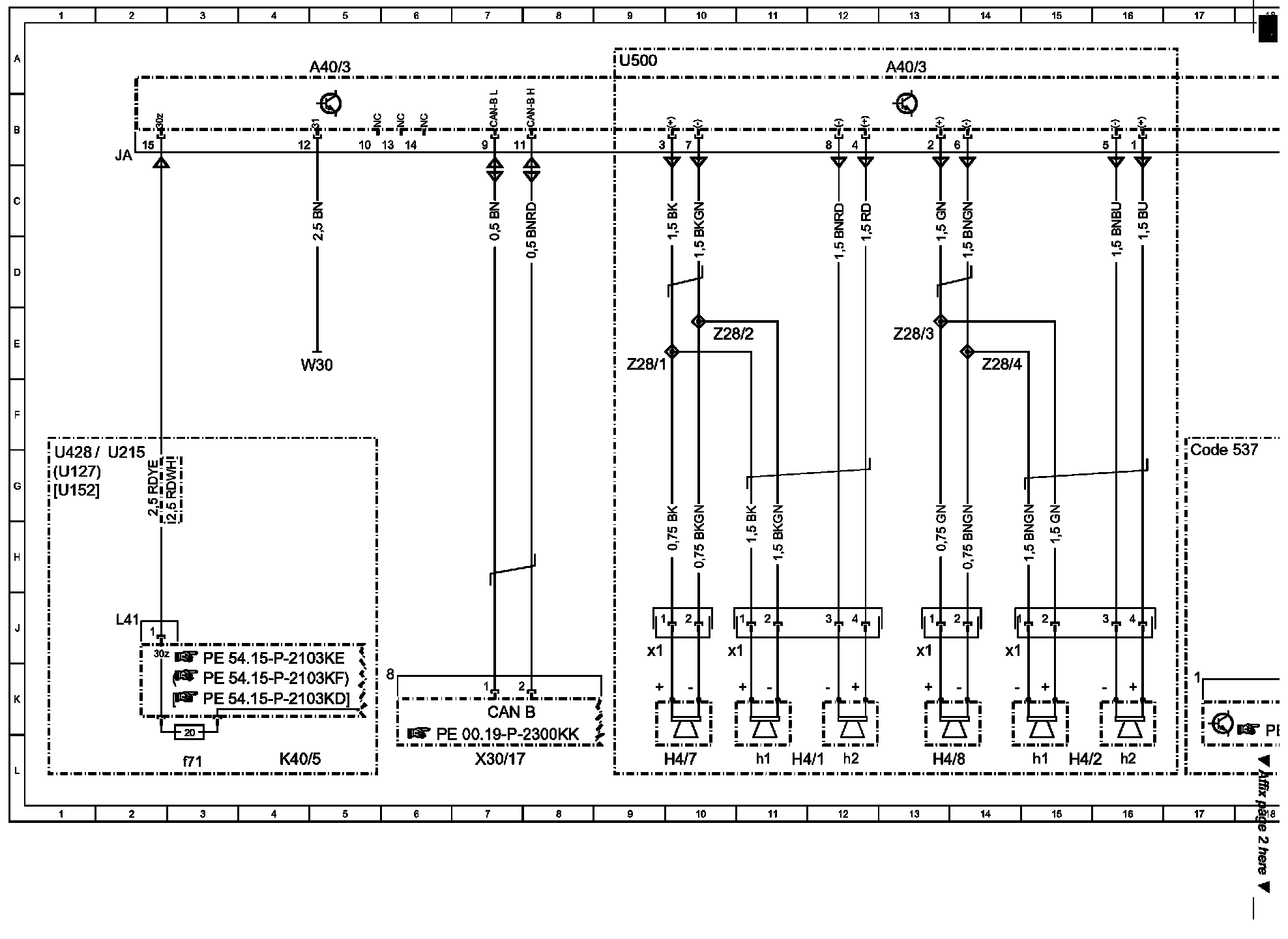

Wiring Diagram (Part 1):

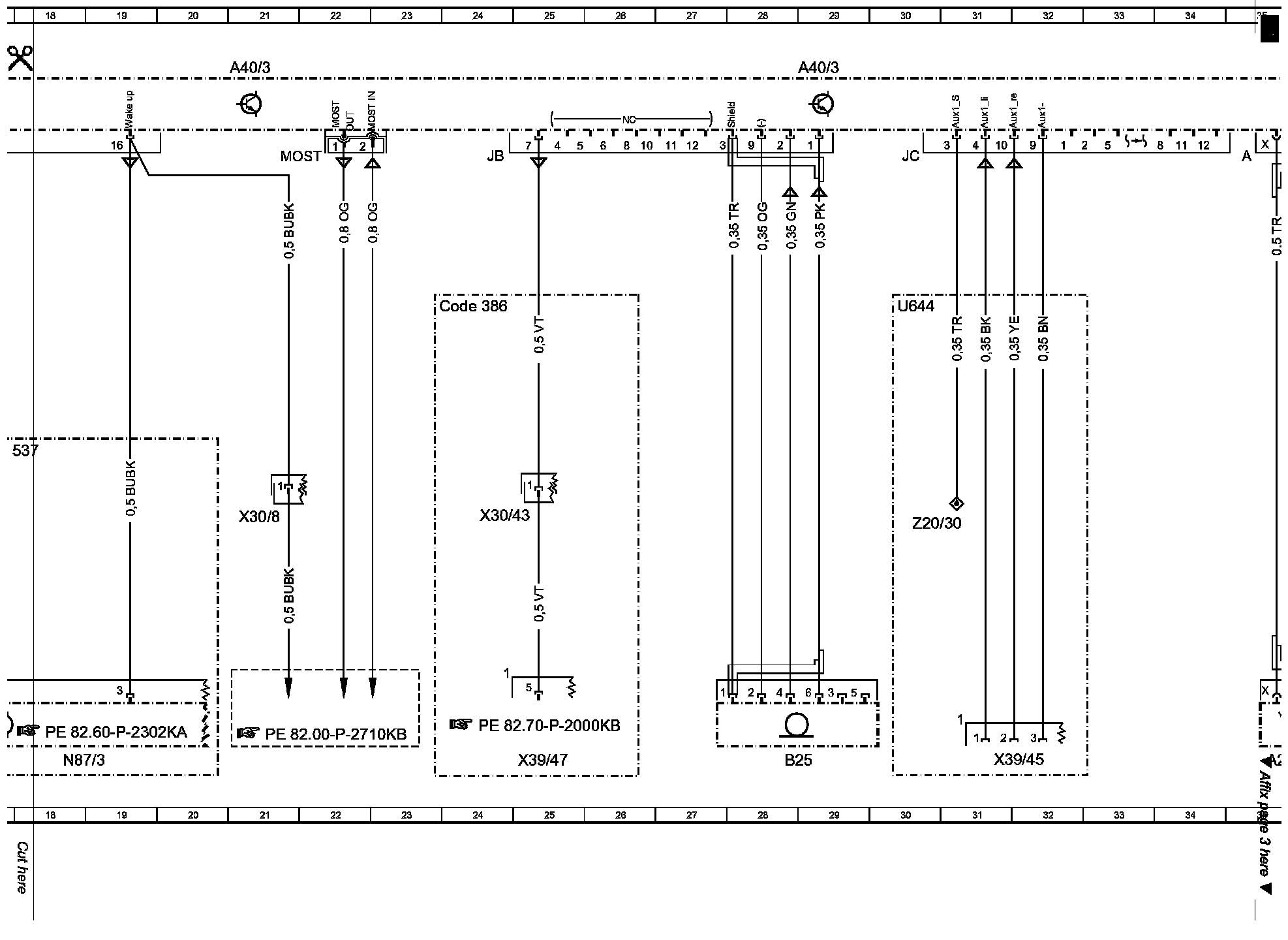

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

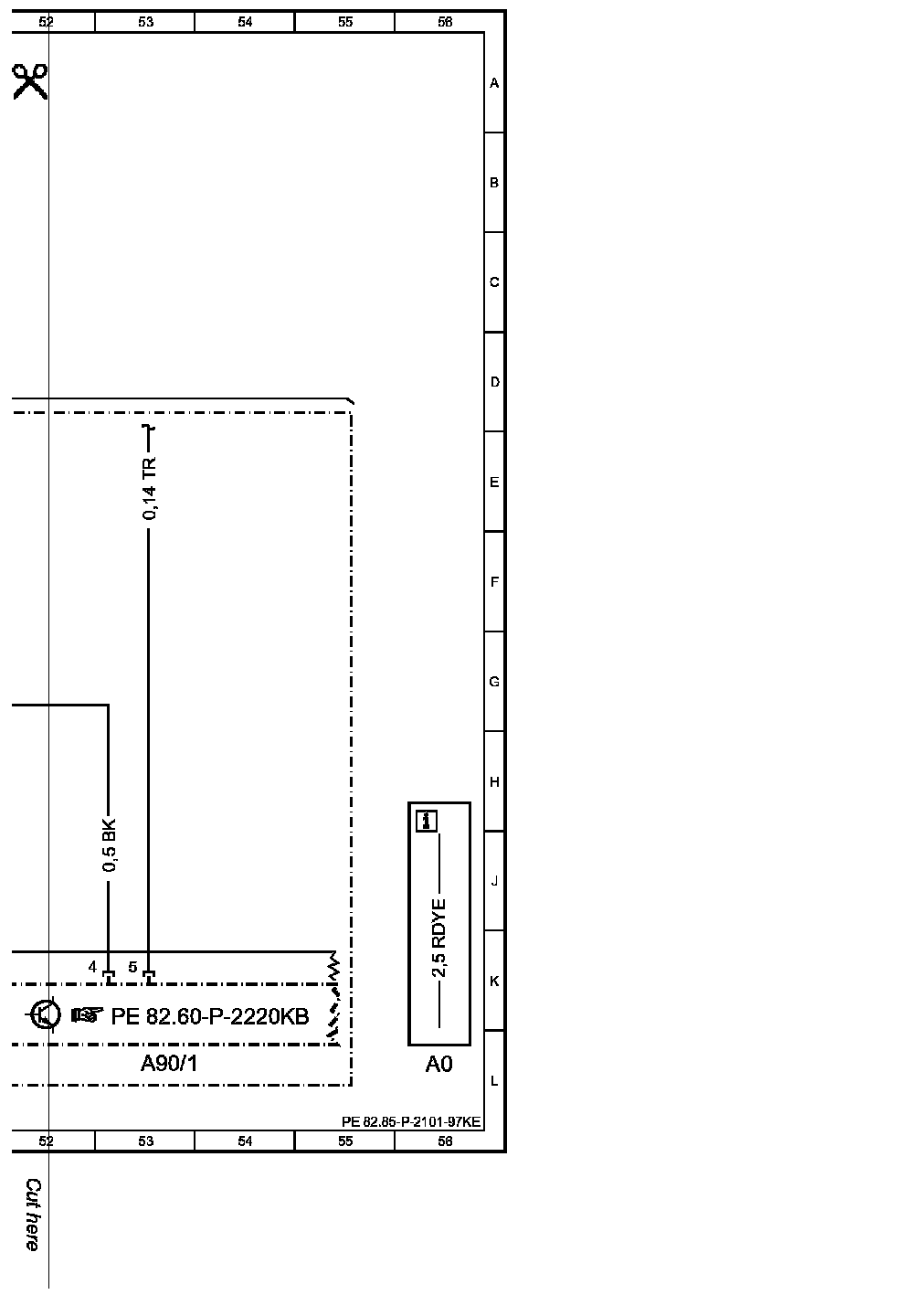

Wiring Diagram (Part 4):

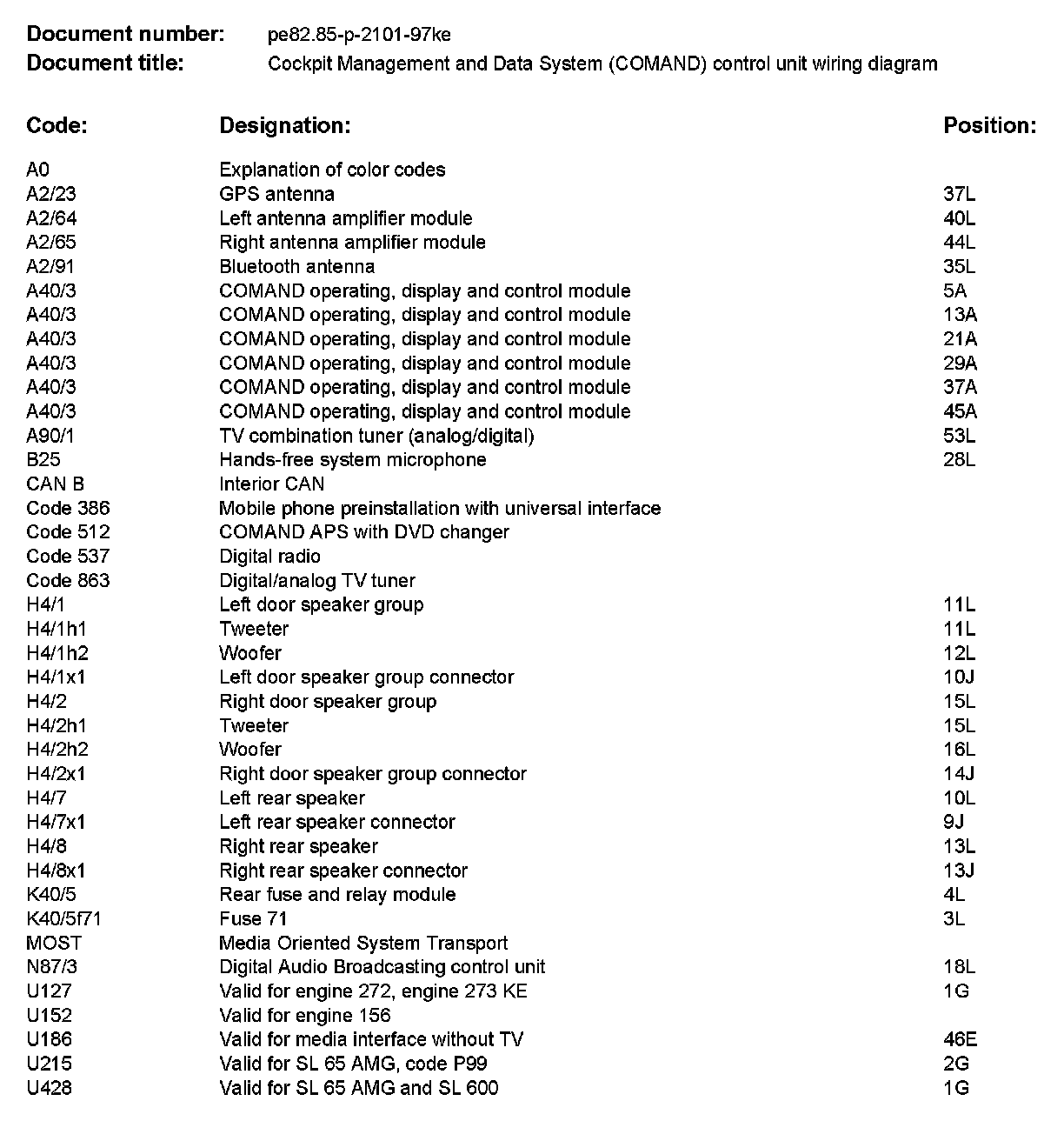

Component Description/Coordinates, A0 To U428:

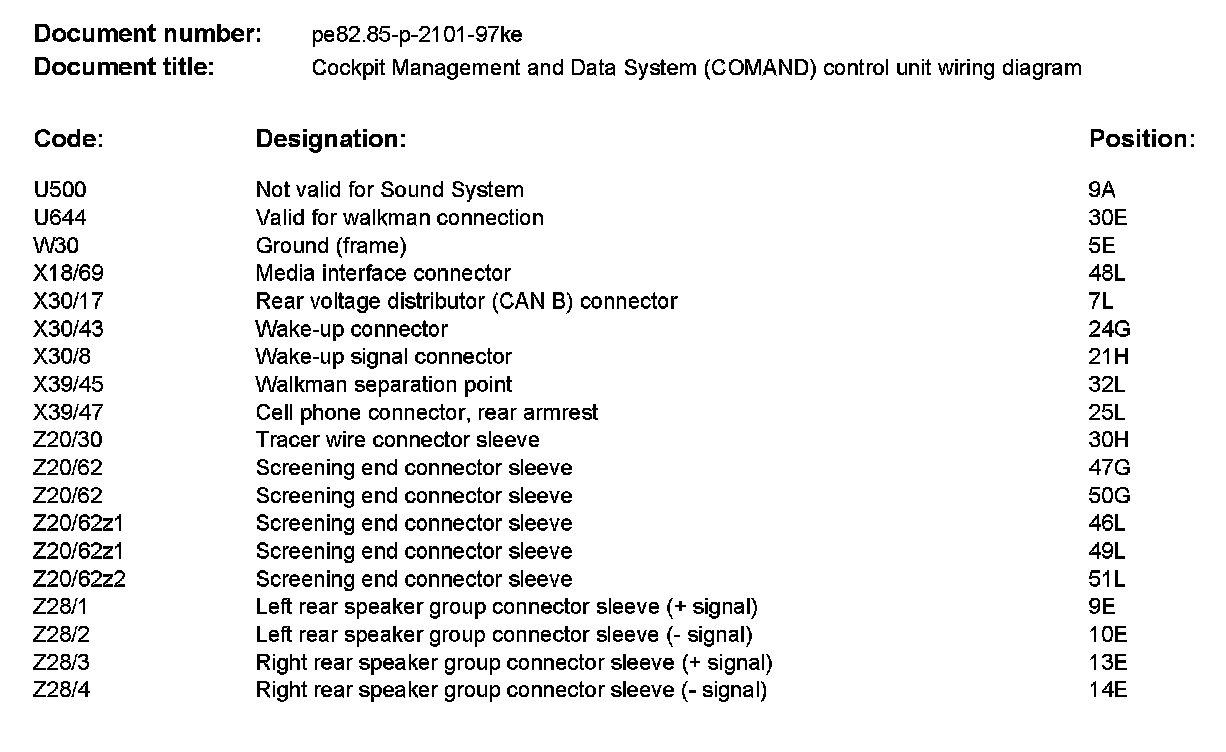

Component Description/Coordinates, U500 To Z28/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
