Level Control (NR) Control Unit Wiring Diagram PE32.33-U-2101DA

Level Control (NR) Control Unit Wiring Diagram PE32.33-U-2101DA
- with CODE (480) Rear axle level control system

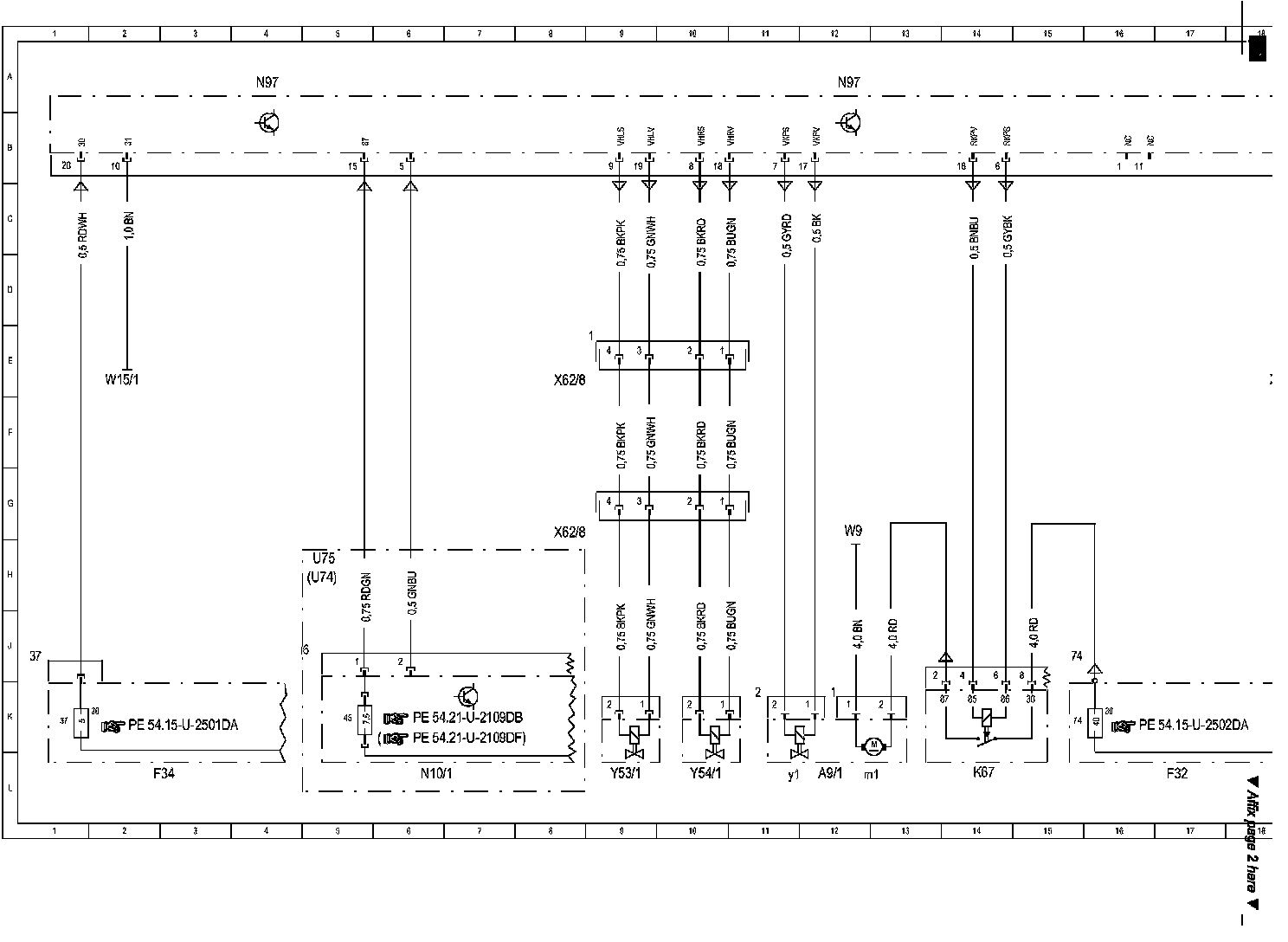

Wiring Diagram (Part 1):

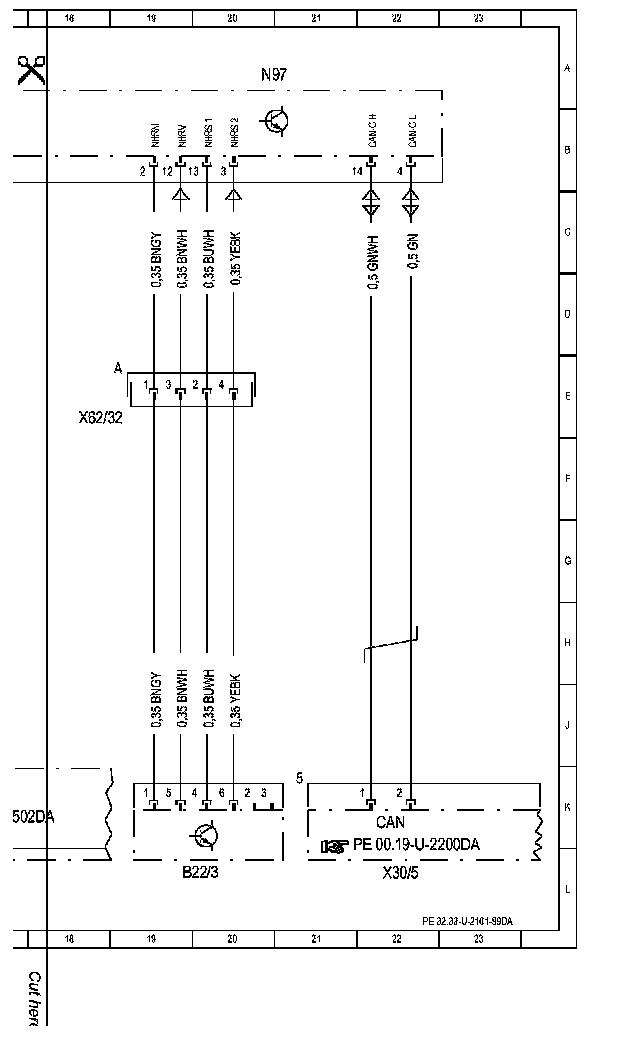

Wiring Diagram (Part 2):

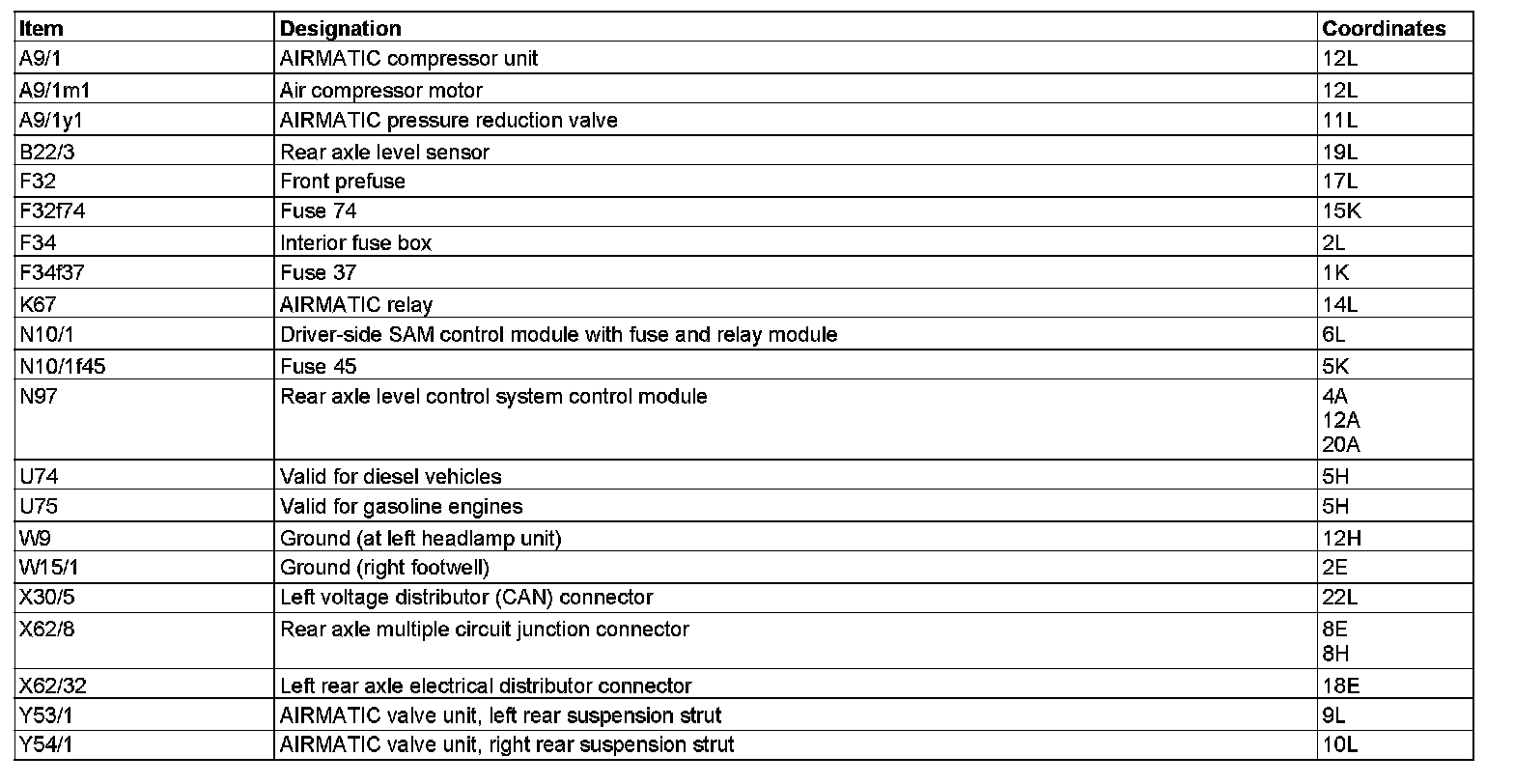

Component Description/Coordinates, A9/1 To Y54/1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
