Home >> Mercedes Benz >> 2009 >> E 350 4MATIC Wagon (211.287) V6-3.5L (272.972) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Compressor/Pump >> Service and Repair >> AR32.22-P-2001TA Remove/Install Compressor

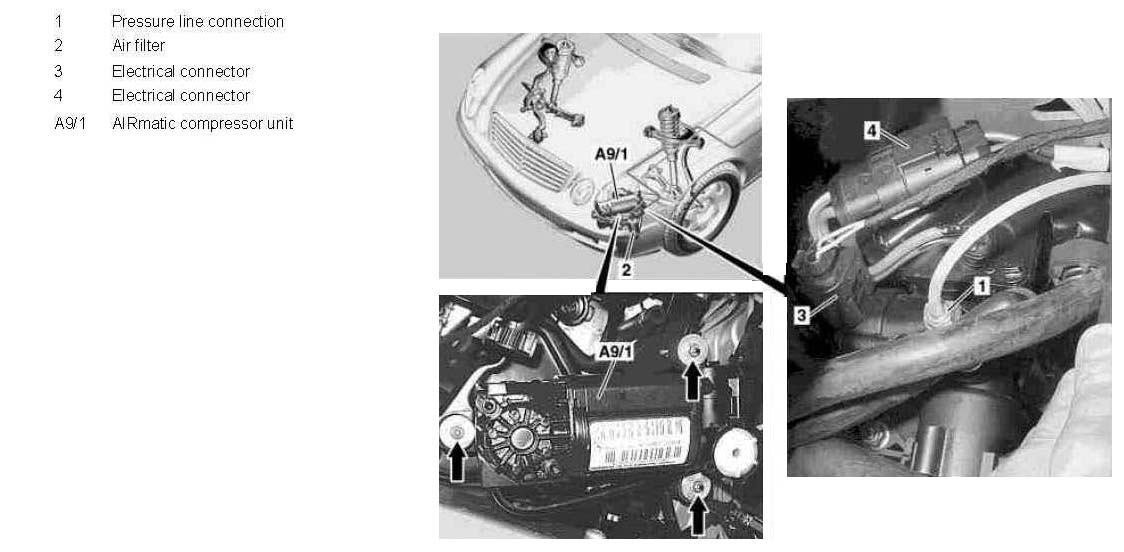

AR32.22-P-2001TA Remove/Install Compressor



AR32.22-P-2001TA Remove/Install Compressor
- Except CODE (489) Airmatic (semi-active air suspension)

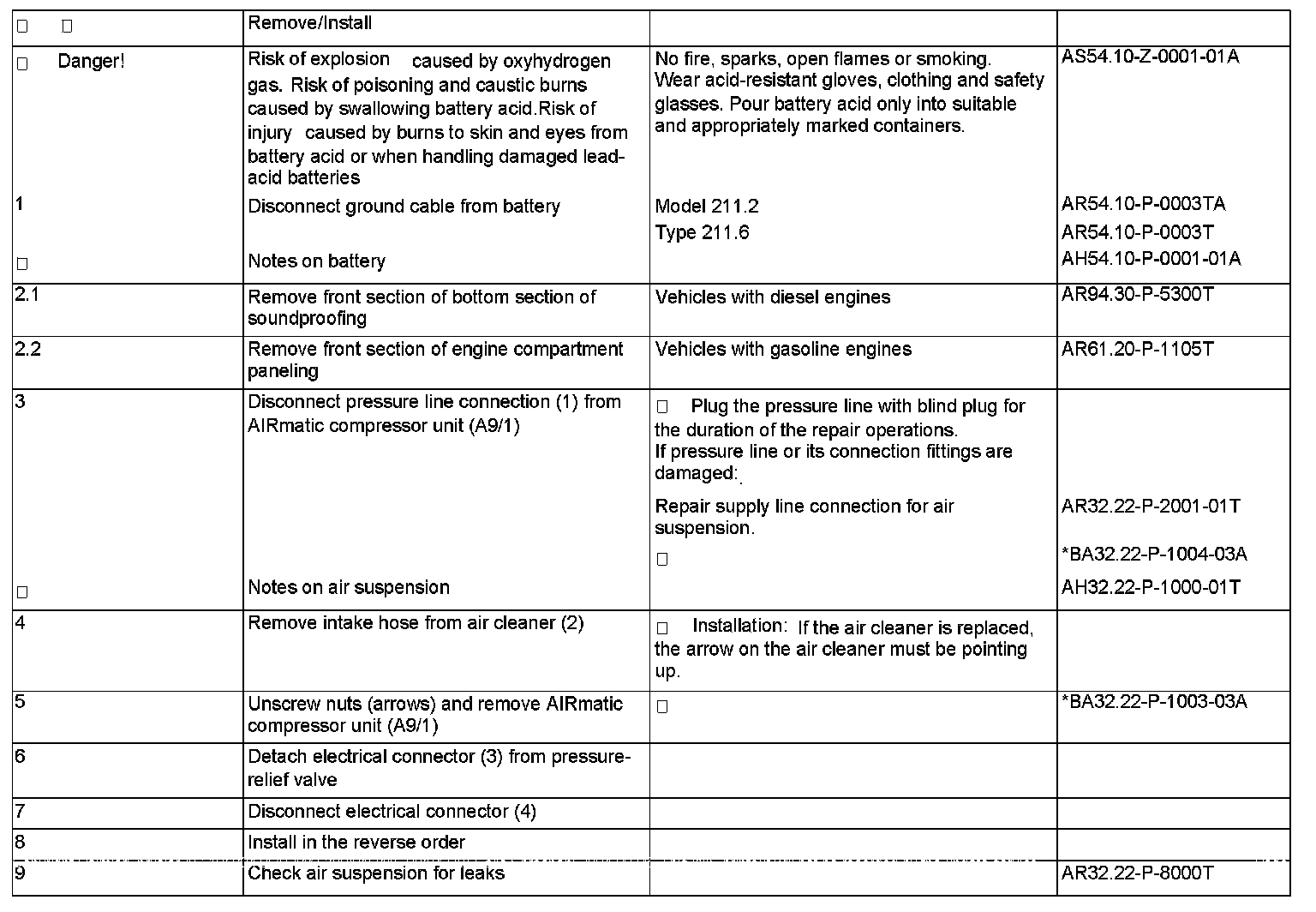

Steps 1-9:
