AZ54.65-P-0001-06TT Routing and Connecting Wiring Harness

AZ54.65-P-0001-06TT Routing And Connecting Wiring Harness

Component Identification:

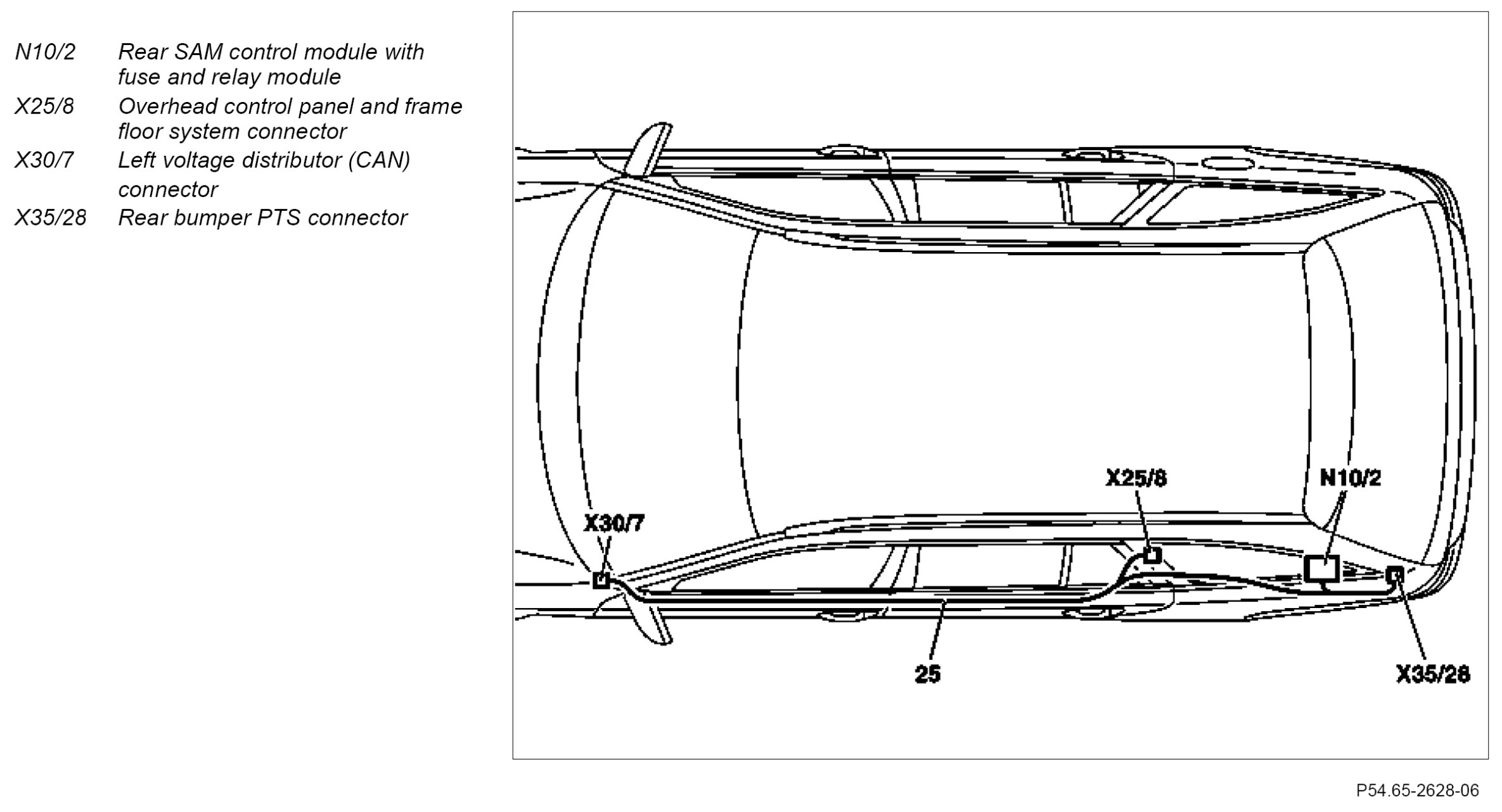

1. Prepare parking assist wiring harness (25) as shown in the diagram and route in the vehicle.

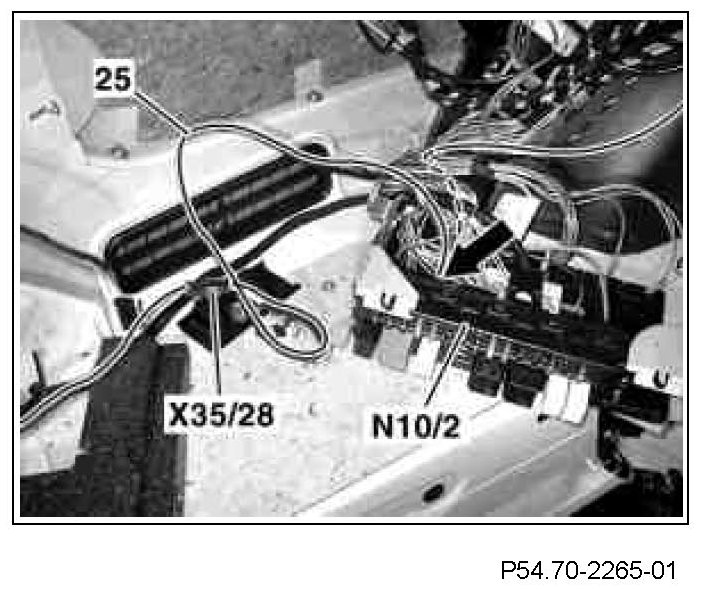

2. Connect parking assist wiring harness (25) to socket 17 (arrow) in rear SAM control module with fuse and relay module (N10/2) in left side of trunk.
3. Connect parking assist wiring harness (25) to rear bumper PTS connector (X35/28).

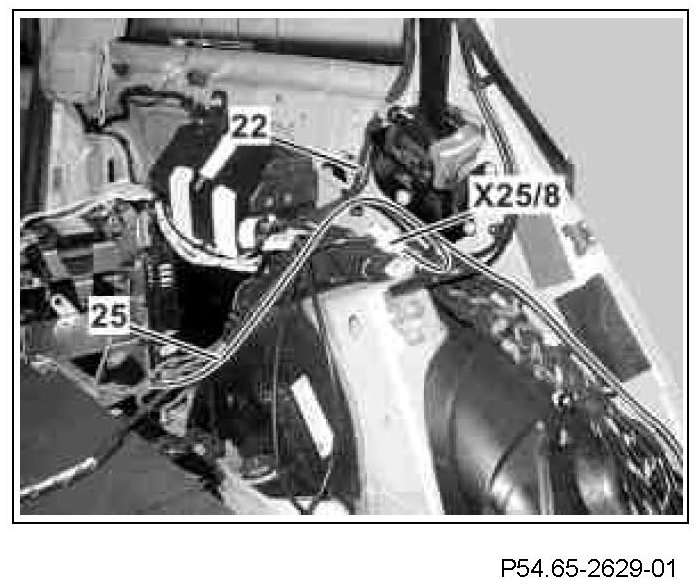

4. Route parking assist wiring harness (25) along the left side wall as shown in the diagram to the overhead control and frame floor system connector (X25/8) and connect warning element wiring harness (22).
5. Fasten wiring harnesses with cable straps.







6. Route parking assist wiring harness (25) in left-hand cable duct to the area of the left A-pillar.

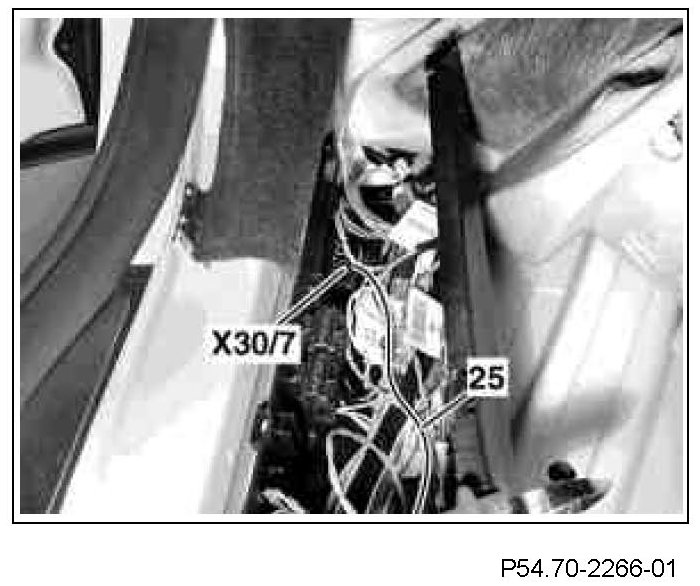

7. Unclip left voltage distributor (CAN) connector (X30/7) from cable duct and unlock.
8. Connect branch-off line from parking assist wiring harness (25) to left voltage distributor (CAN) connector (X30/7).
9. Lock voltage distributor and clip into cable duct.
