Home >> Mercedes Benz >> 2009 >> E 350 4MATIC Wagon (211.287) V6-3.5L (272.972) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Timing Components >> Variable Valve Timing >> Variable Valve Timing Solenoid >> Service and Repair >> AR05.20-P-7295TT Remove/Install Solenoid Camshaft

AR05.20-P-7295TT Remove/Install Solenoid Camshaft



AR05.20-P-7295TT Remove/install solenoid camshaft
- Right cylinder head

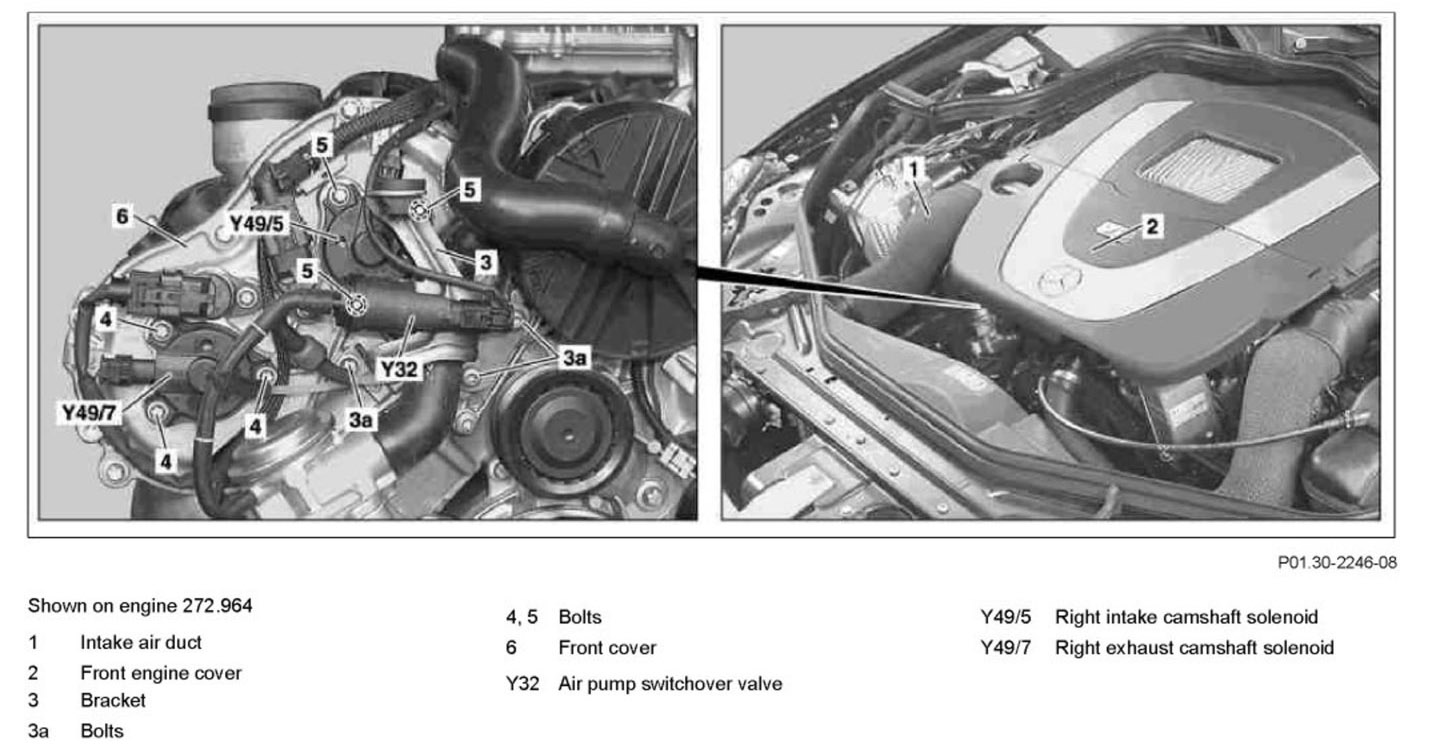

Component Identification:




Component Identification:




Component Identification:

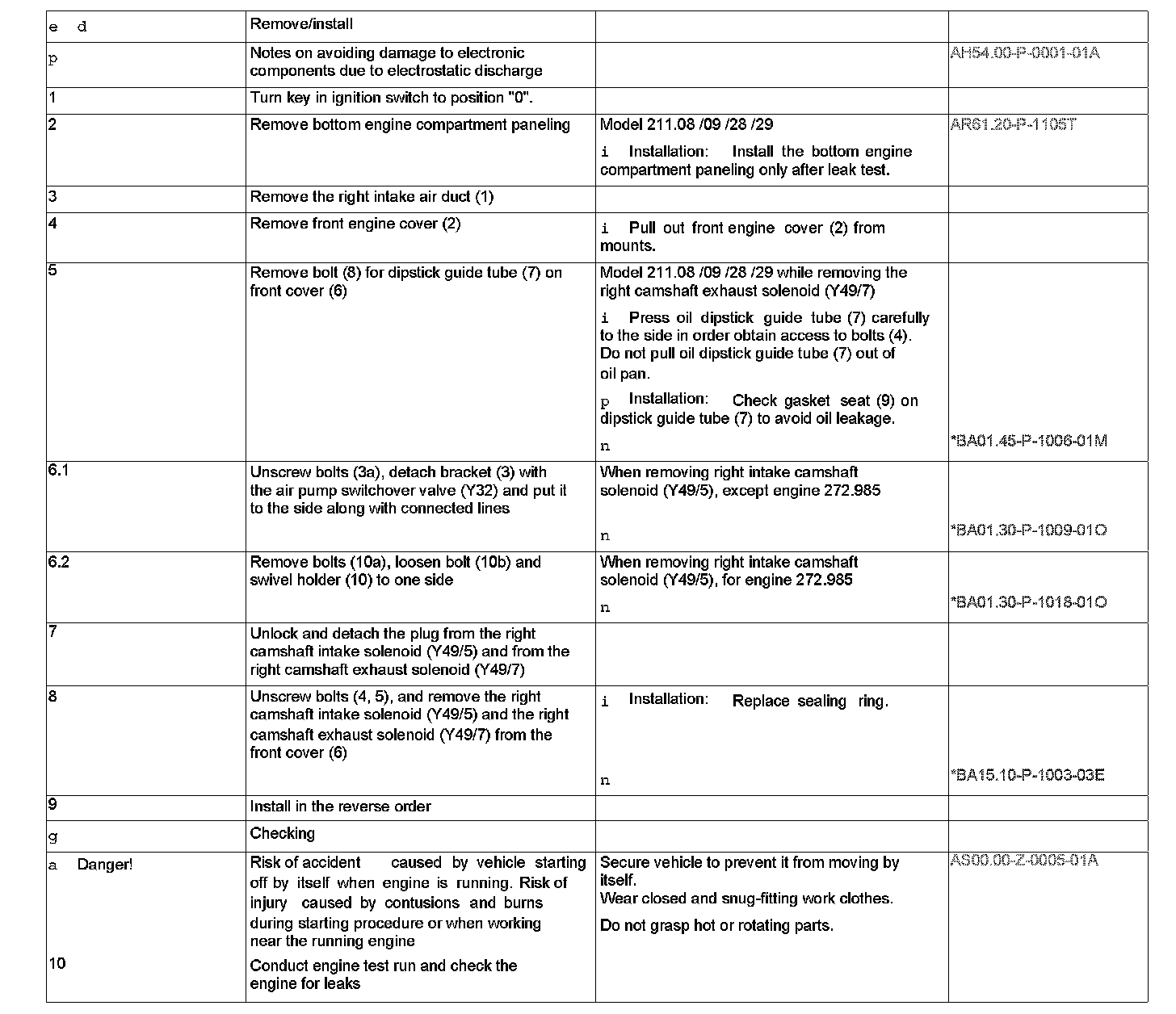

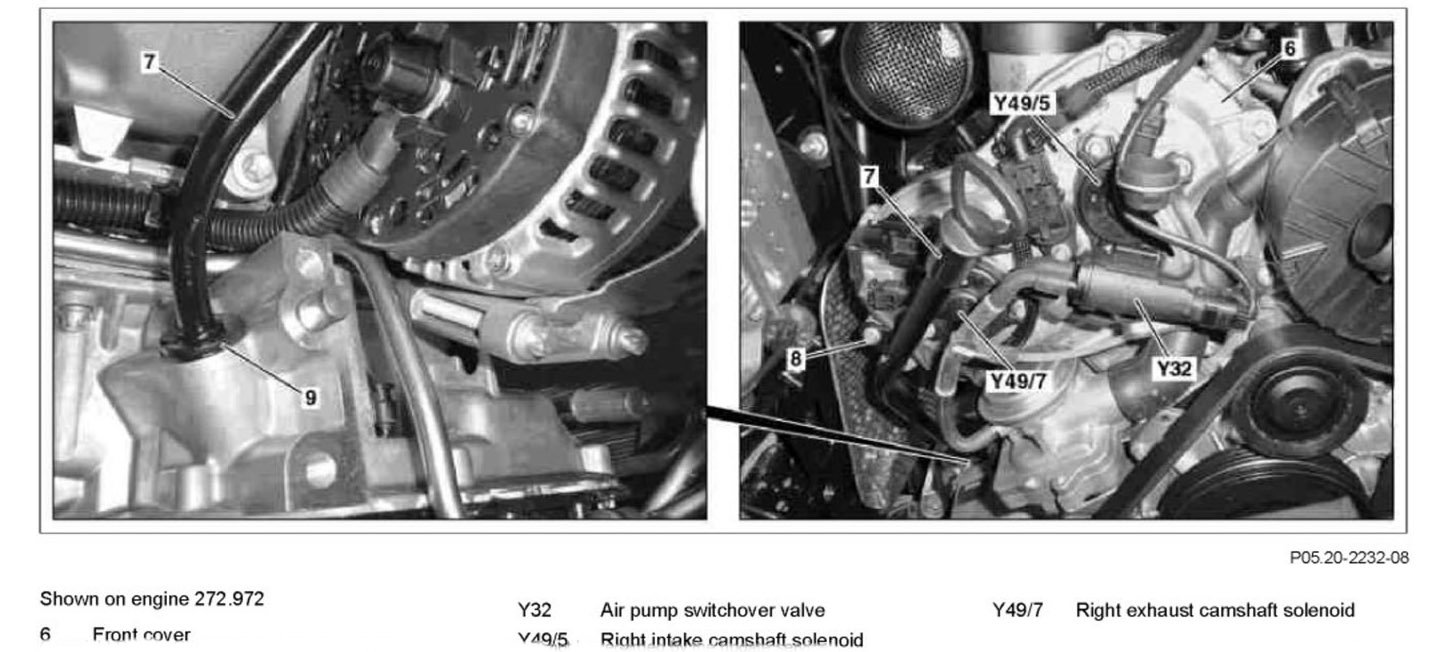

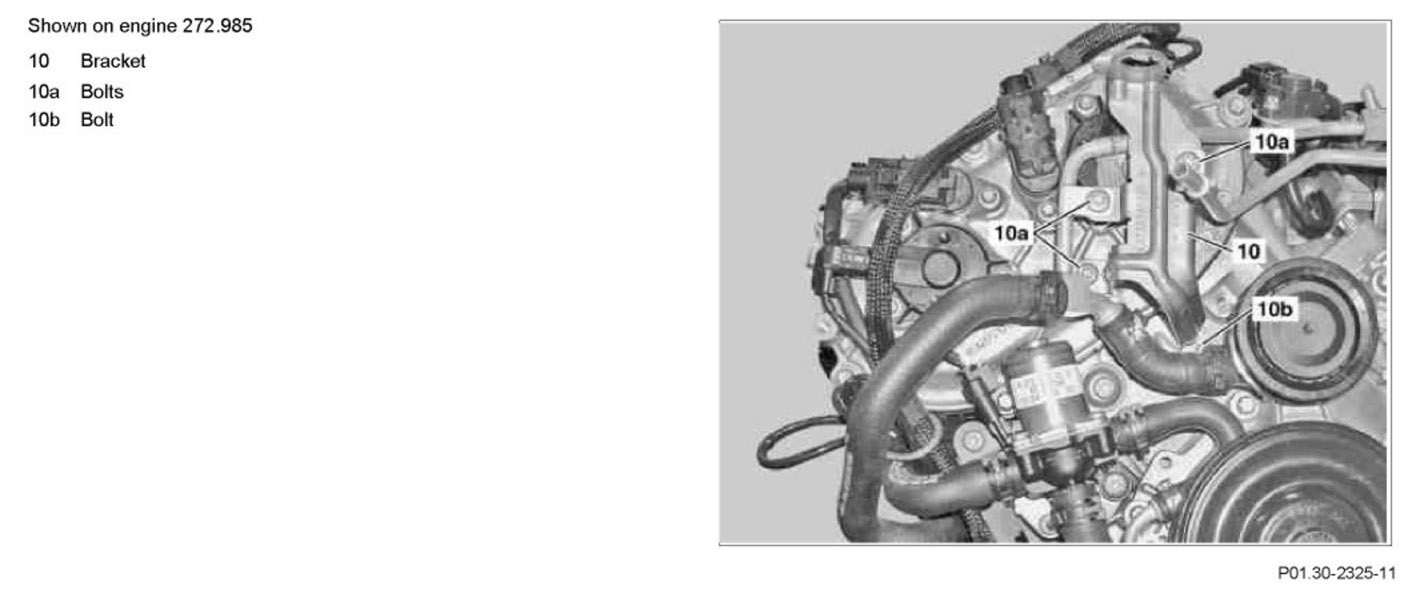

Steps 1 - 10:

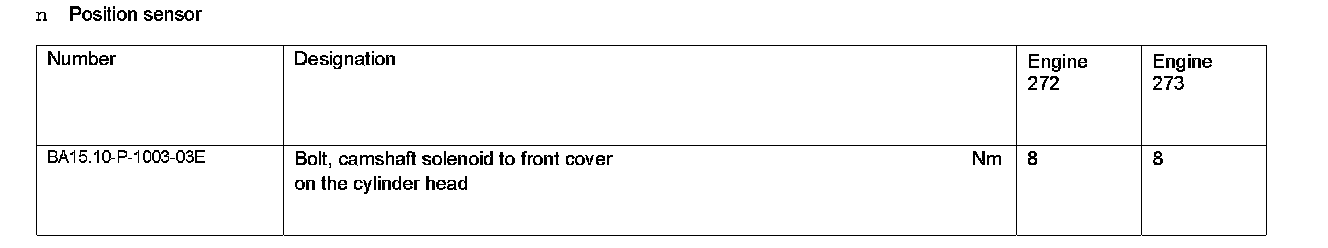

Position Sensor:

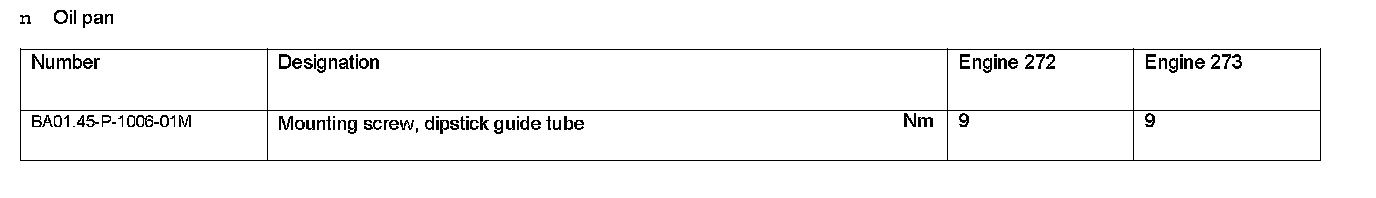

Oil Pan:

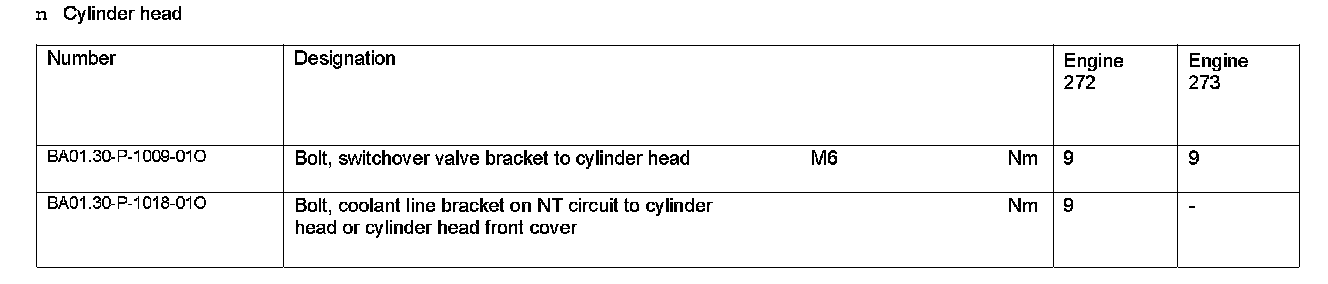

Cylinder Head:
