AR01.00-P-0200TS Inspecting Cylinders With Light Probe
AR01.00-P-0200TS Inspecting Cylinders With Light Probe
AR01.00-P-0200TS Inspecting cylinders with light probe

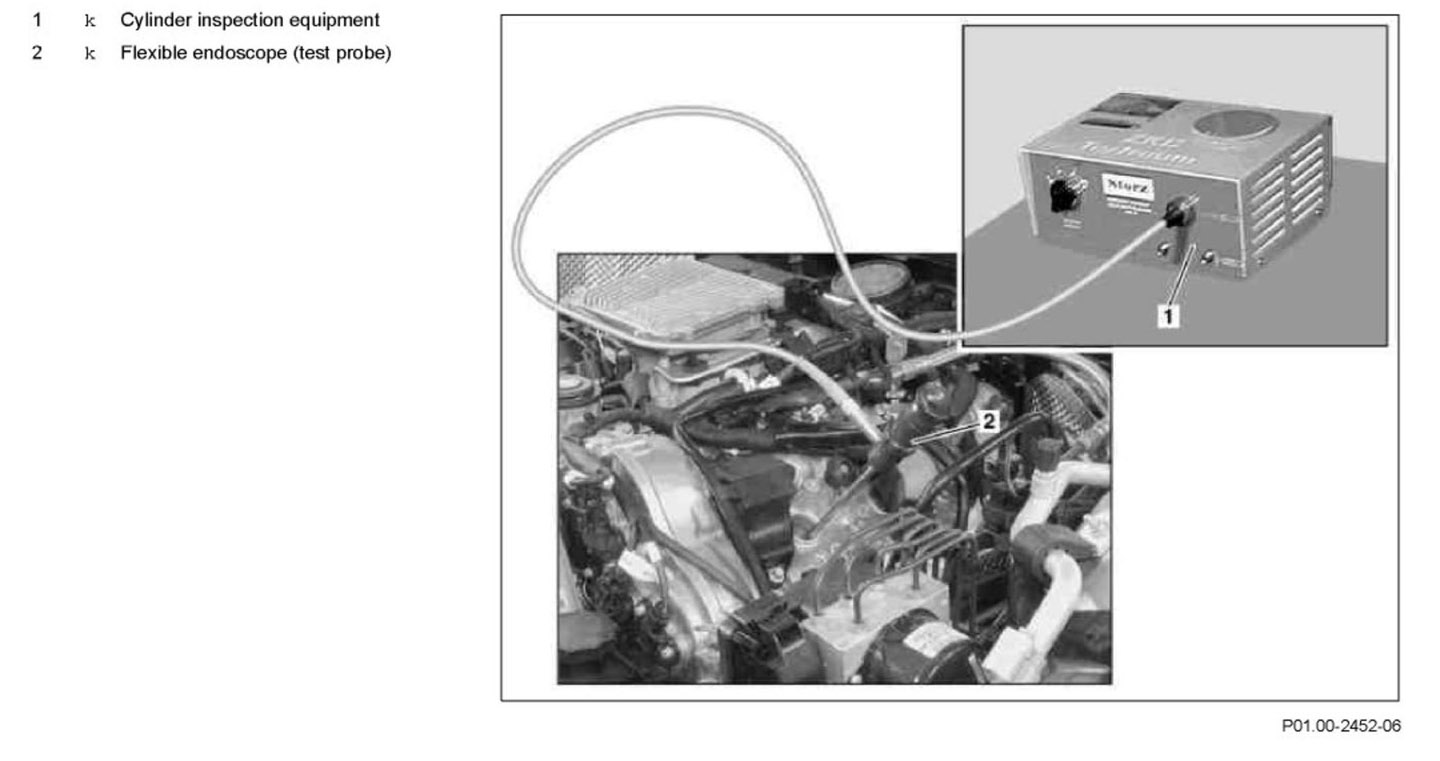

Component Identification:

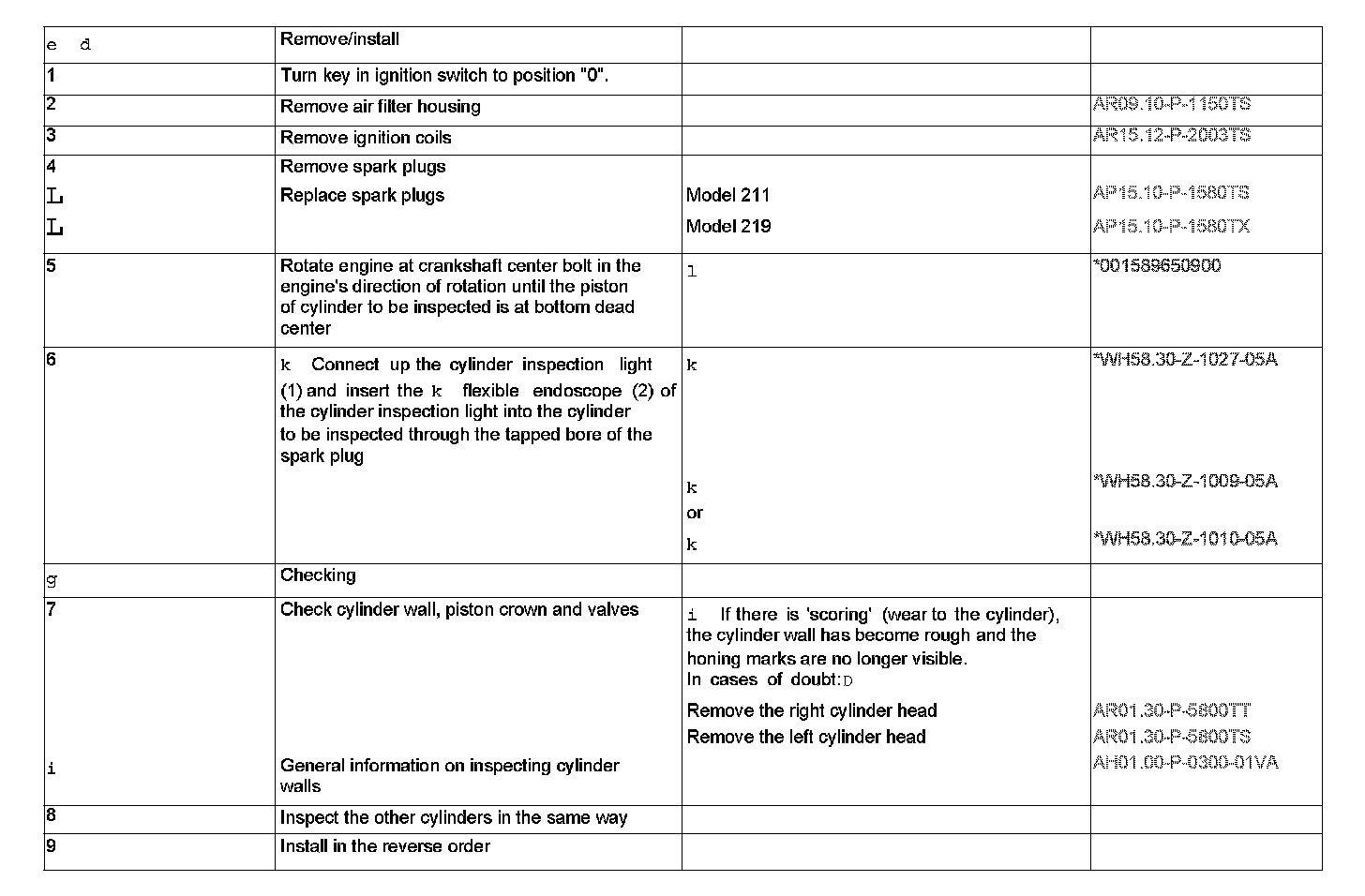

Steps 1 - 9:

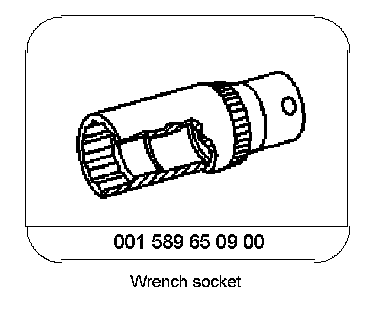

Special Tools:
Commercially available tools:
