Intake Manifold: Service and Repair
AR09.20-P-1961TS Remove, install the resonance intake manifold

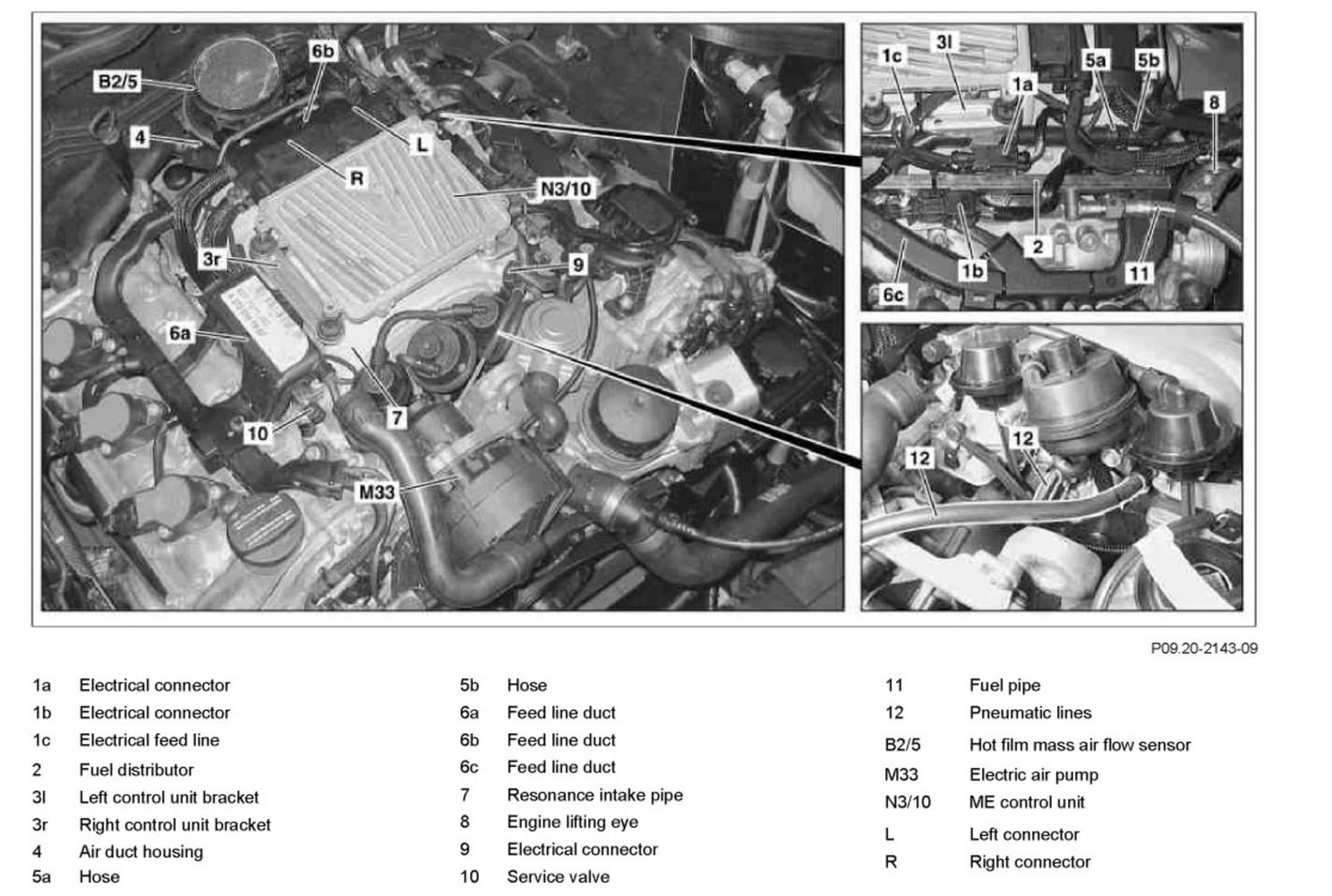

Component Identification:
Component Identification:

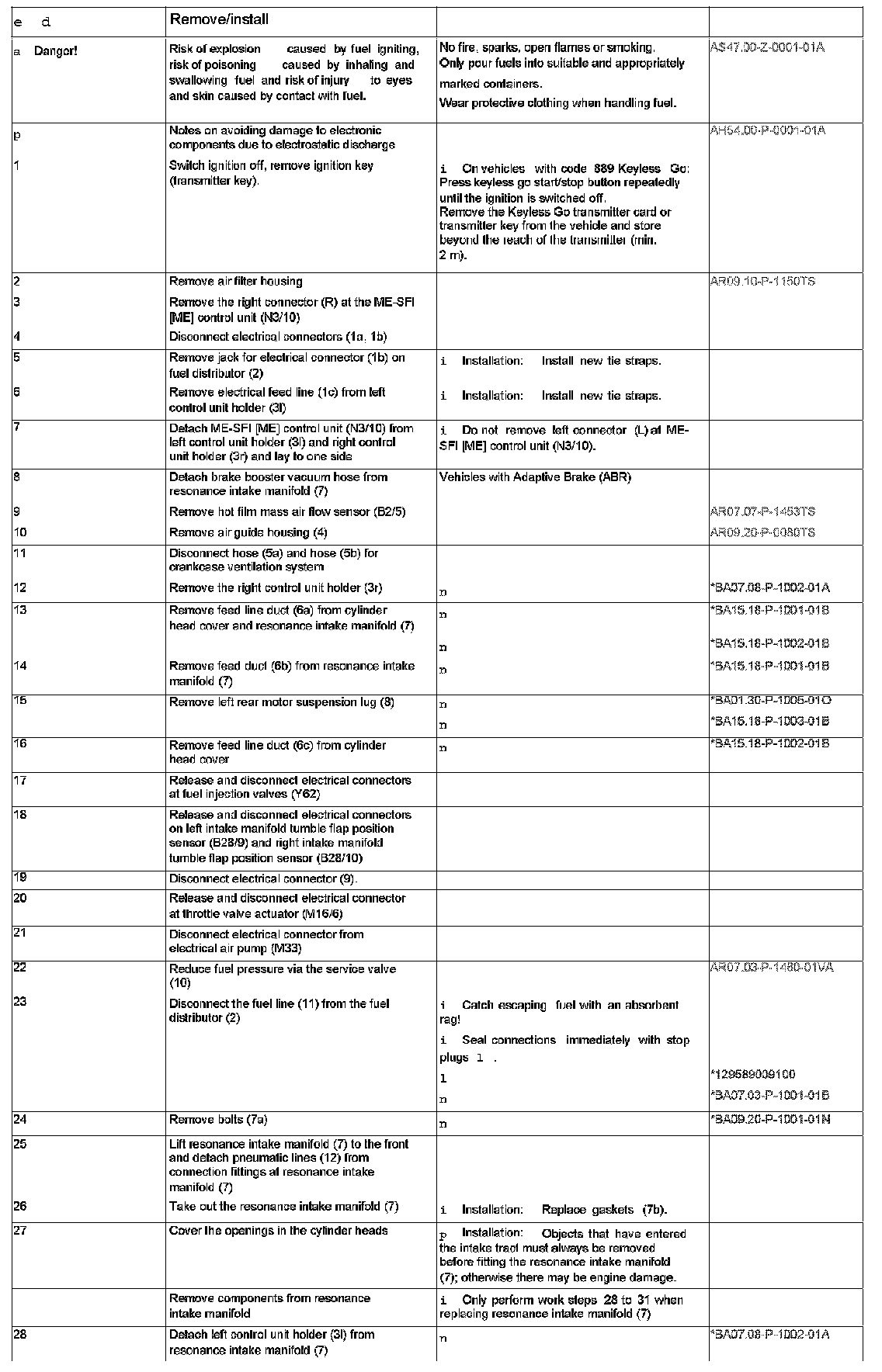

Steps 1 - 28:

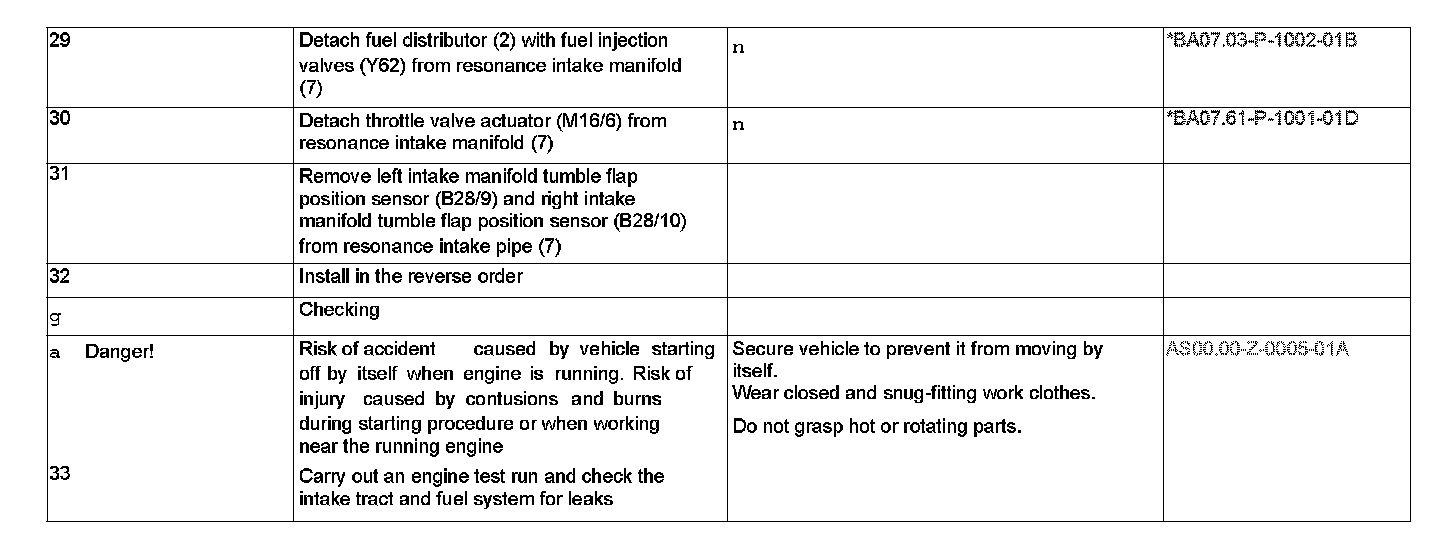

Steps 29 - 33:
Control Unit:
Engine Wiring Harness:
Cylinder Head:

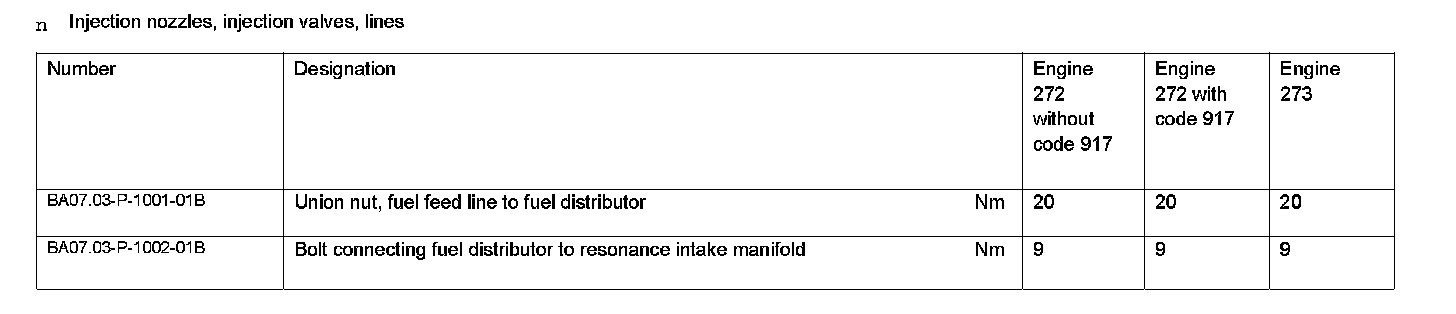

Injection Nozzles, Injection Valves, Lines:

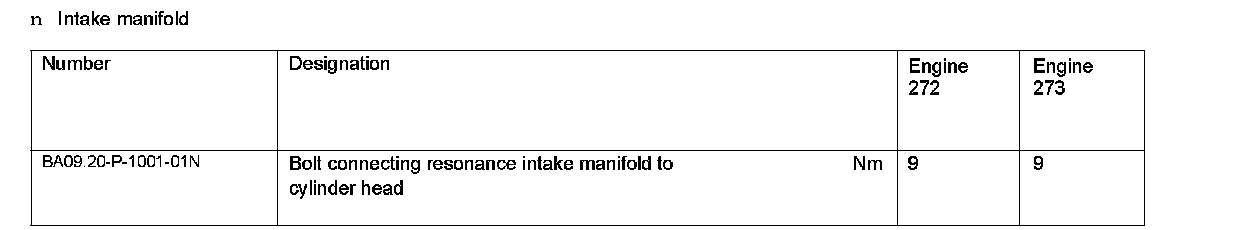

Intake Manifold:

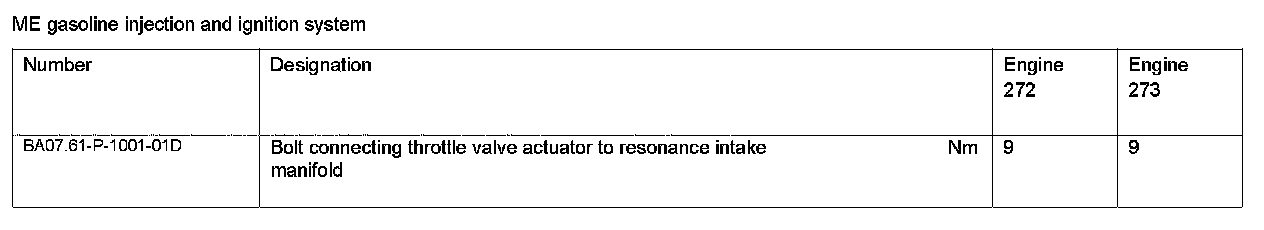

ME Gasoline Injection And Ignition System:
Special Tools:
