AR01.45-P-7500TW Remove/Install Oil Pan



AR01.45-P-7500TW Remove/install oil pan

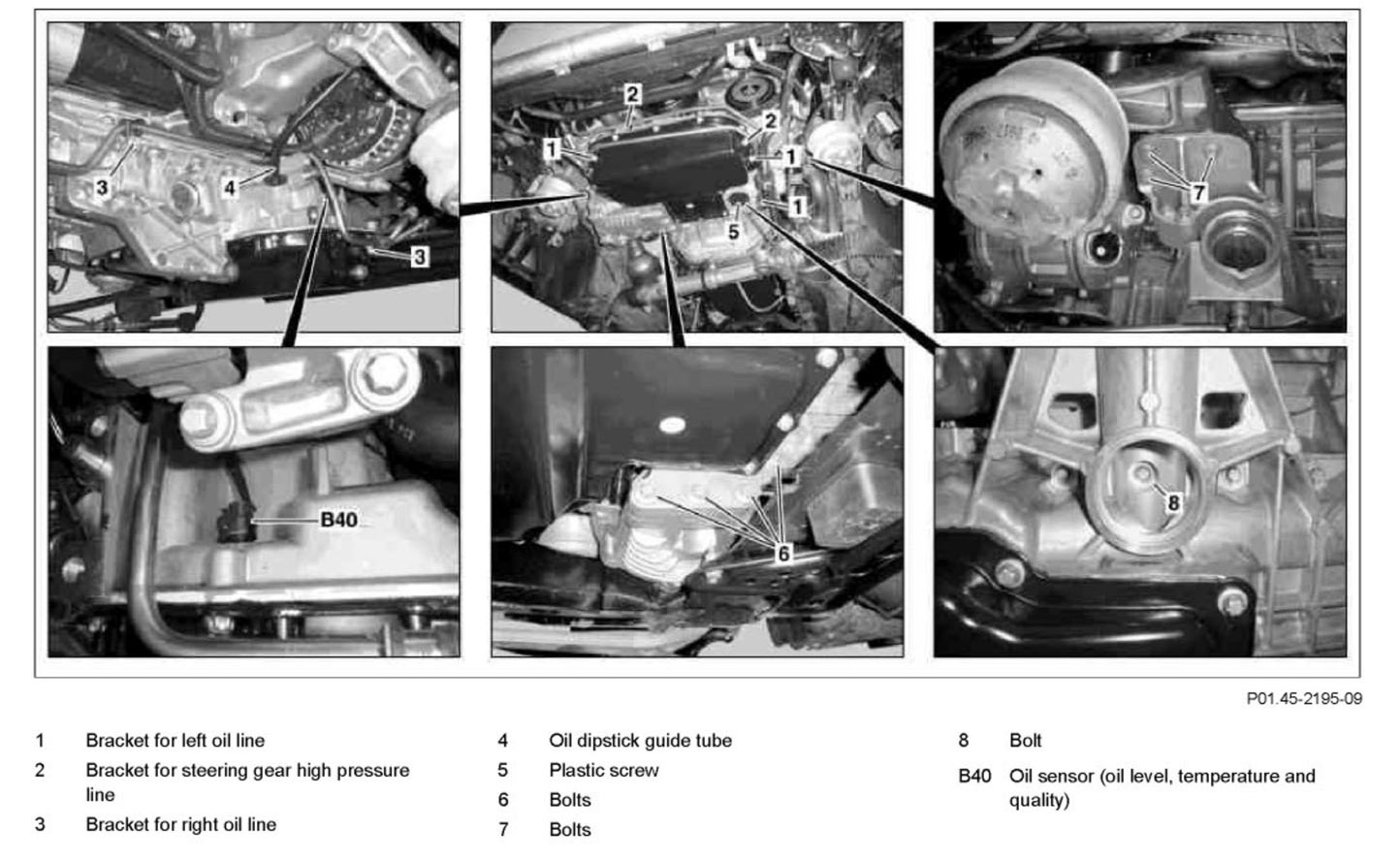

Component Identification:




Steps 1 - 15:

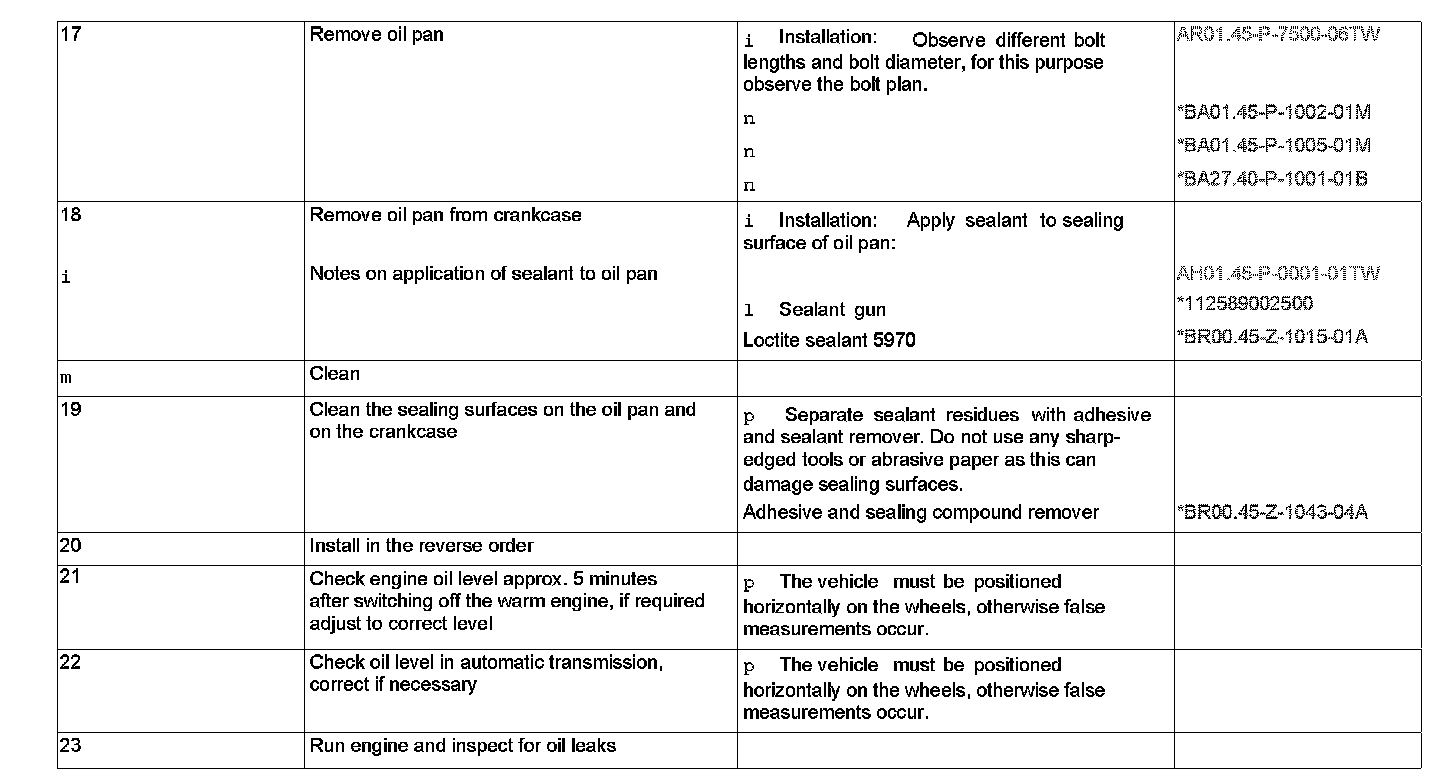

Steps 17 - 23:

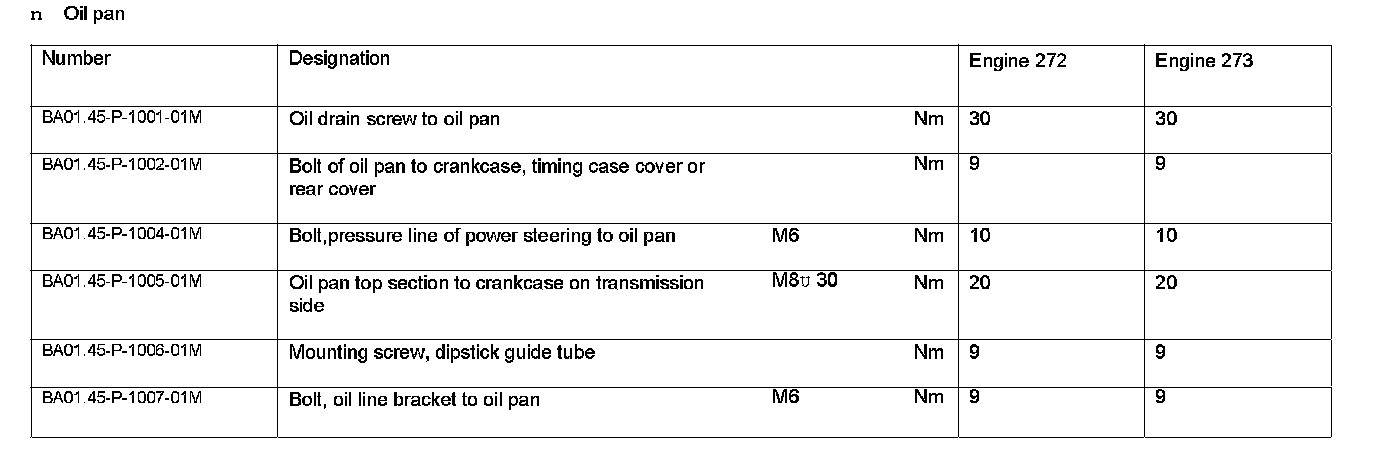

Oil Pan:

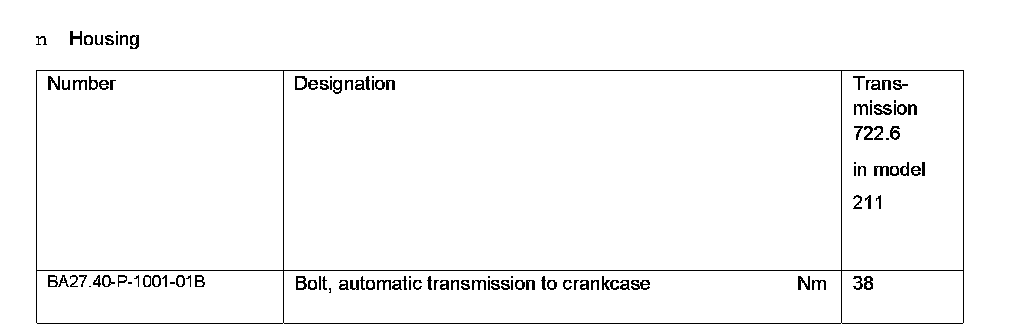

Housing:

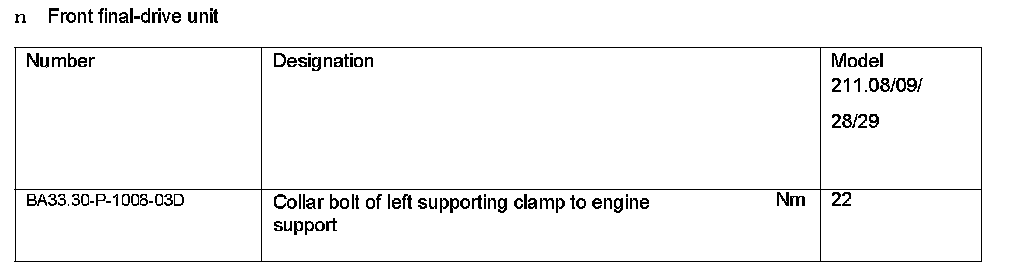

Front Final-drive Unit:

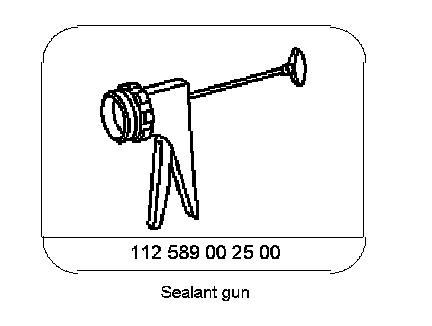

Special Tools:




Repair Materials:
