AR01.20-P-5014TS Remove/Install Cylinder Head Cover



AR01.20-P-5014SY Remove/install cylinder head cover
- Left cylinder head cover

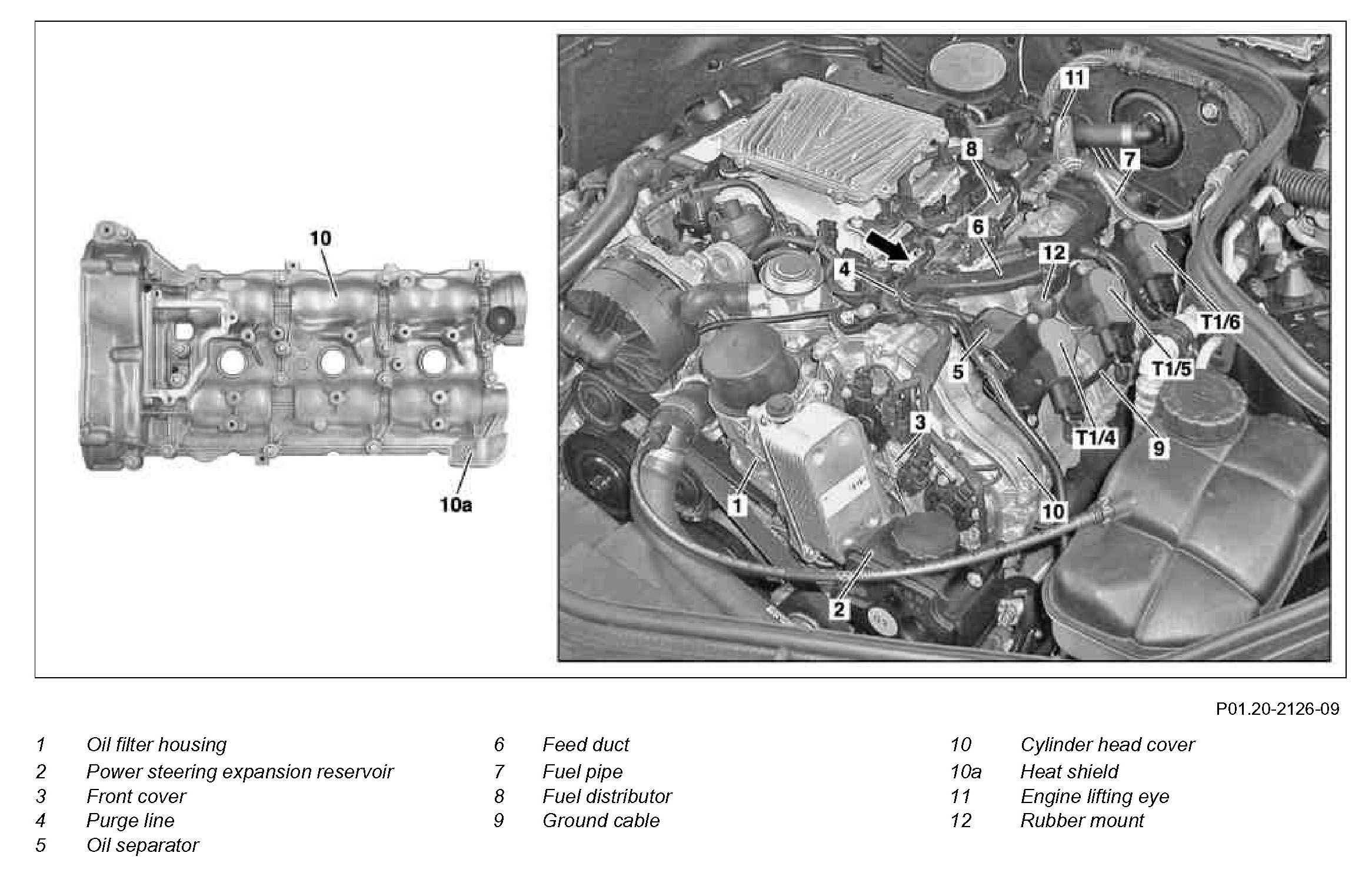

Component Identification:

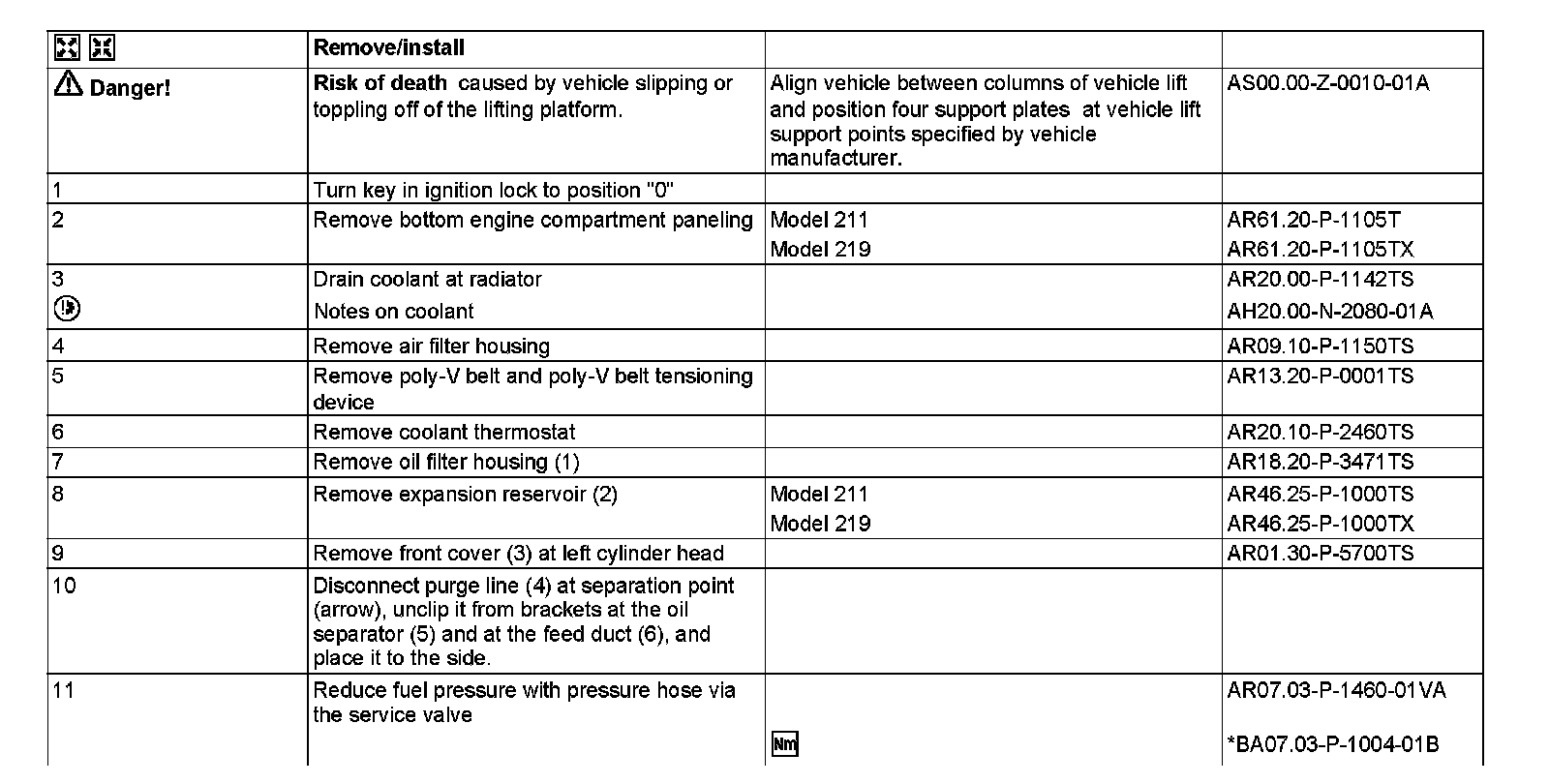

Steps 1-11:

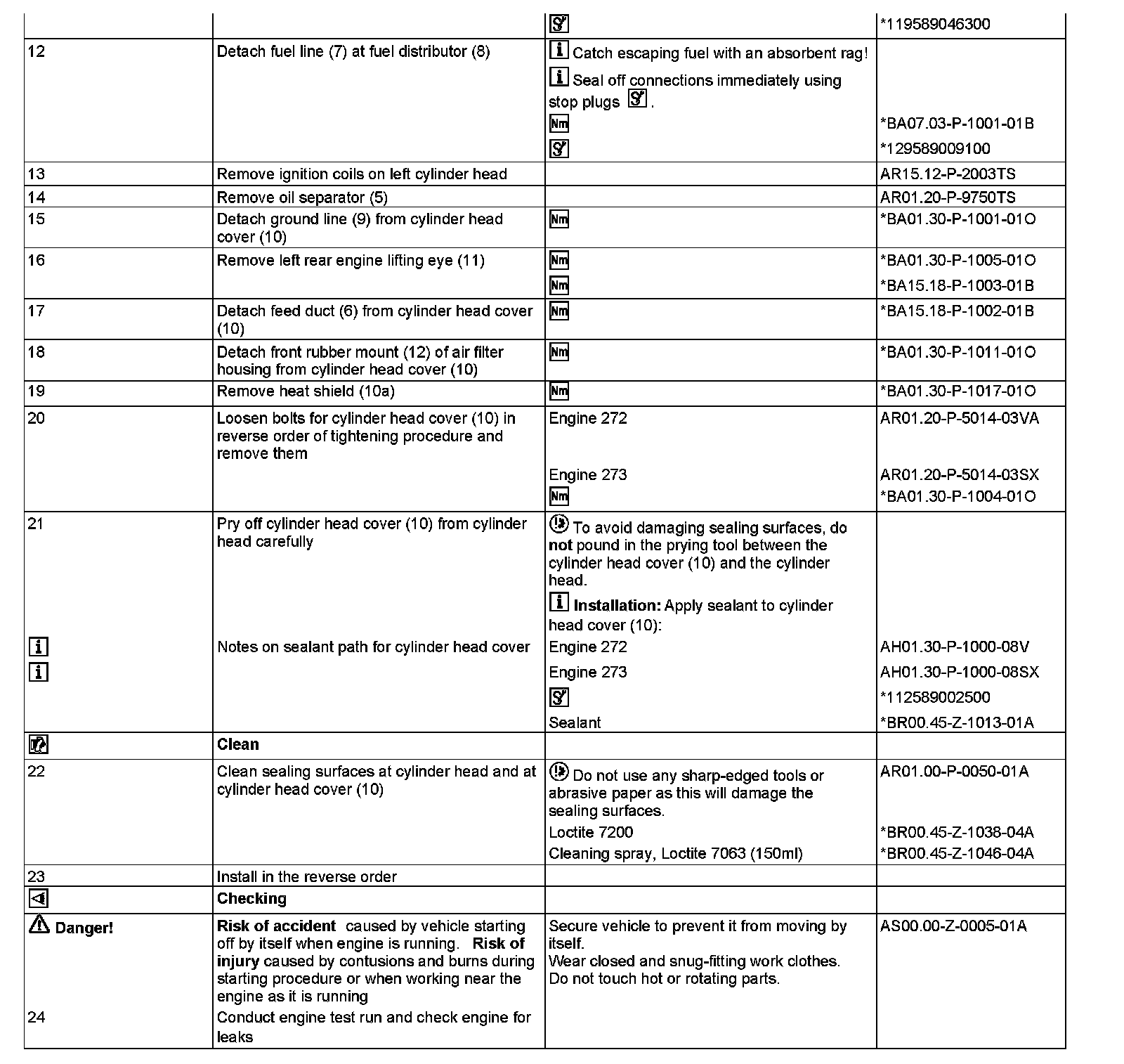

Steps 12-24:

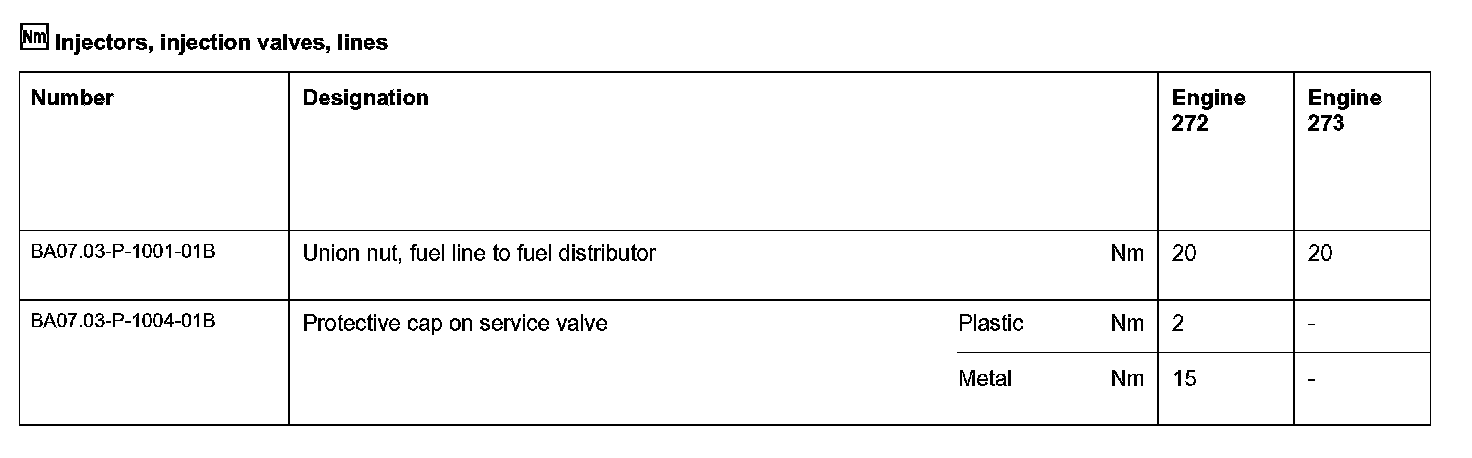

Injectors, injection valves, lines:

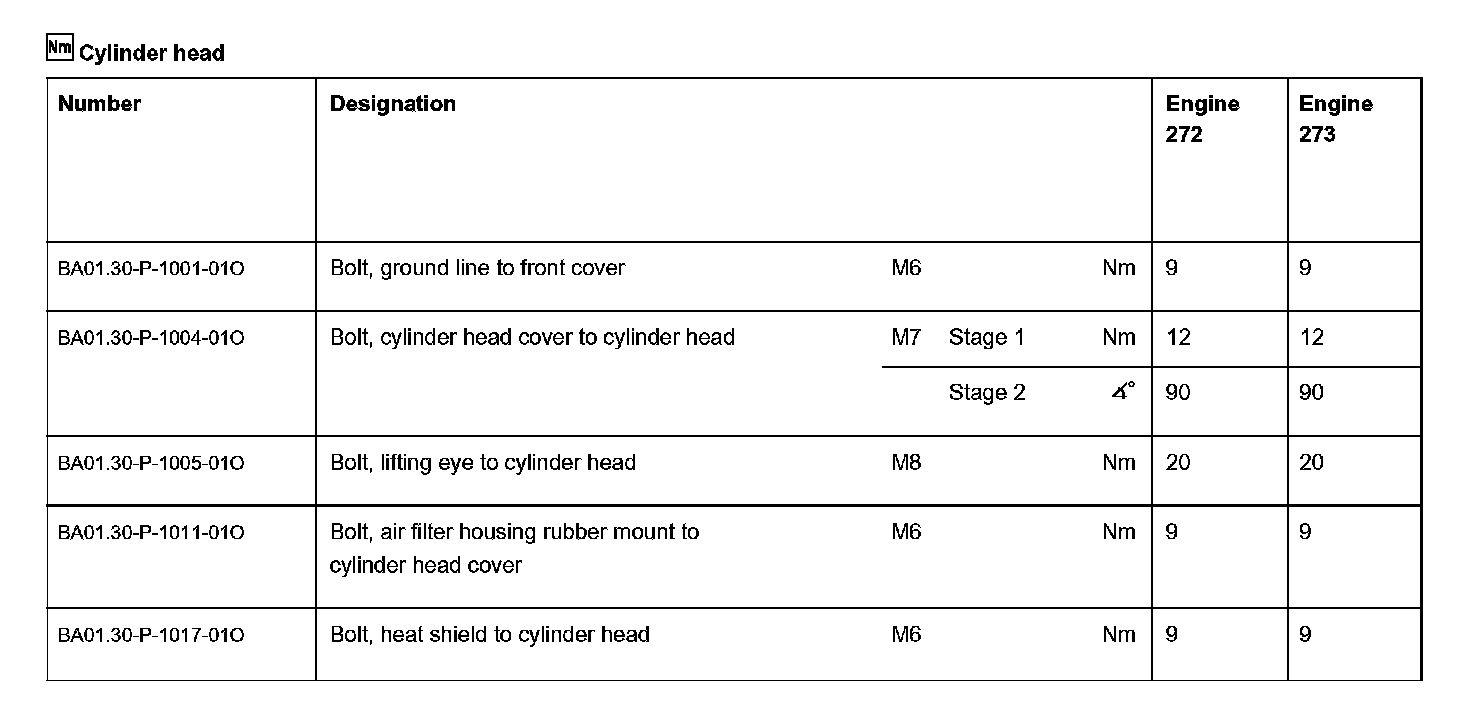

Cylinder head:

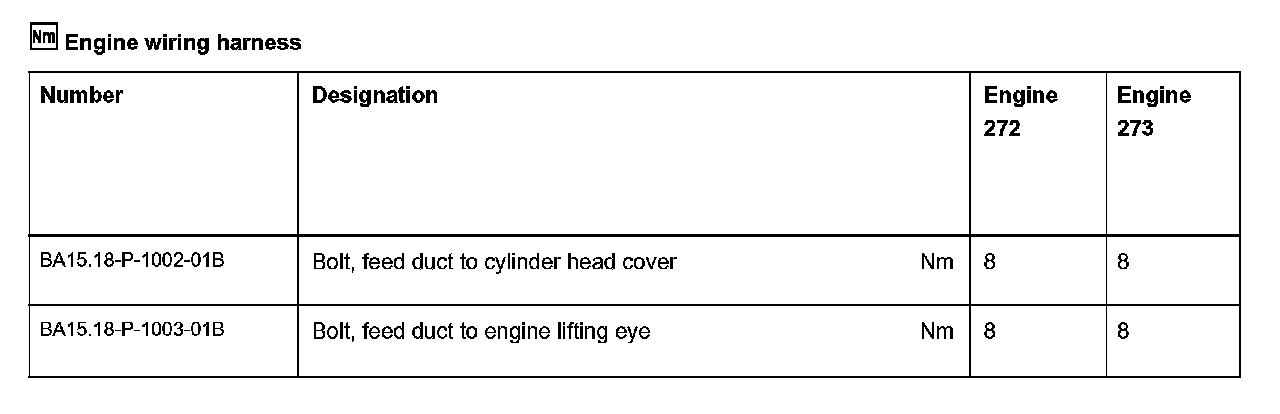

Engine wiring harness:

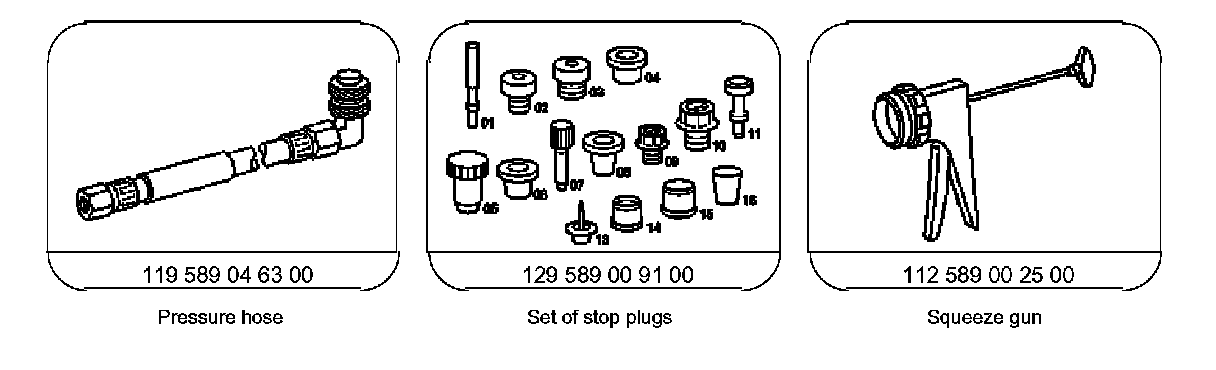

Special Tools:

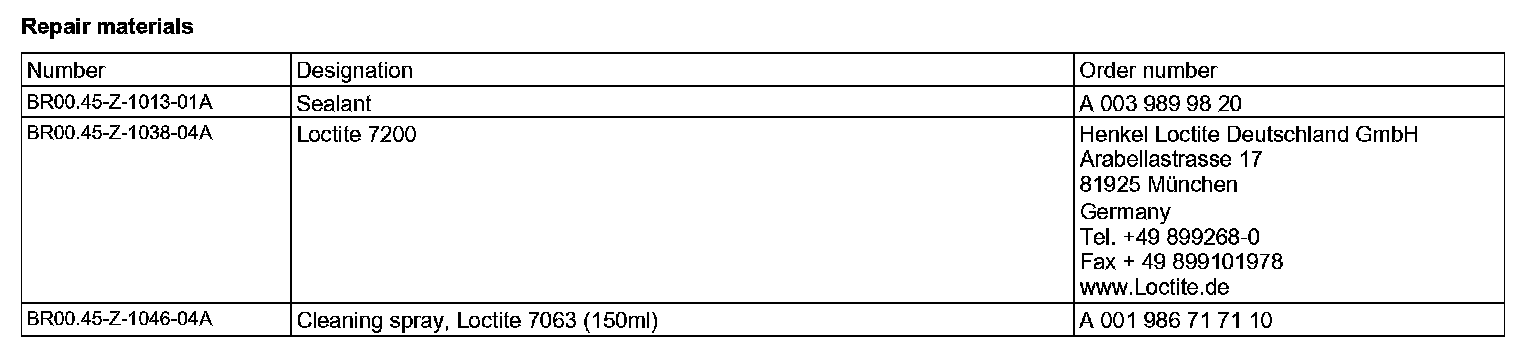

Repair materials:
