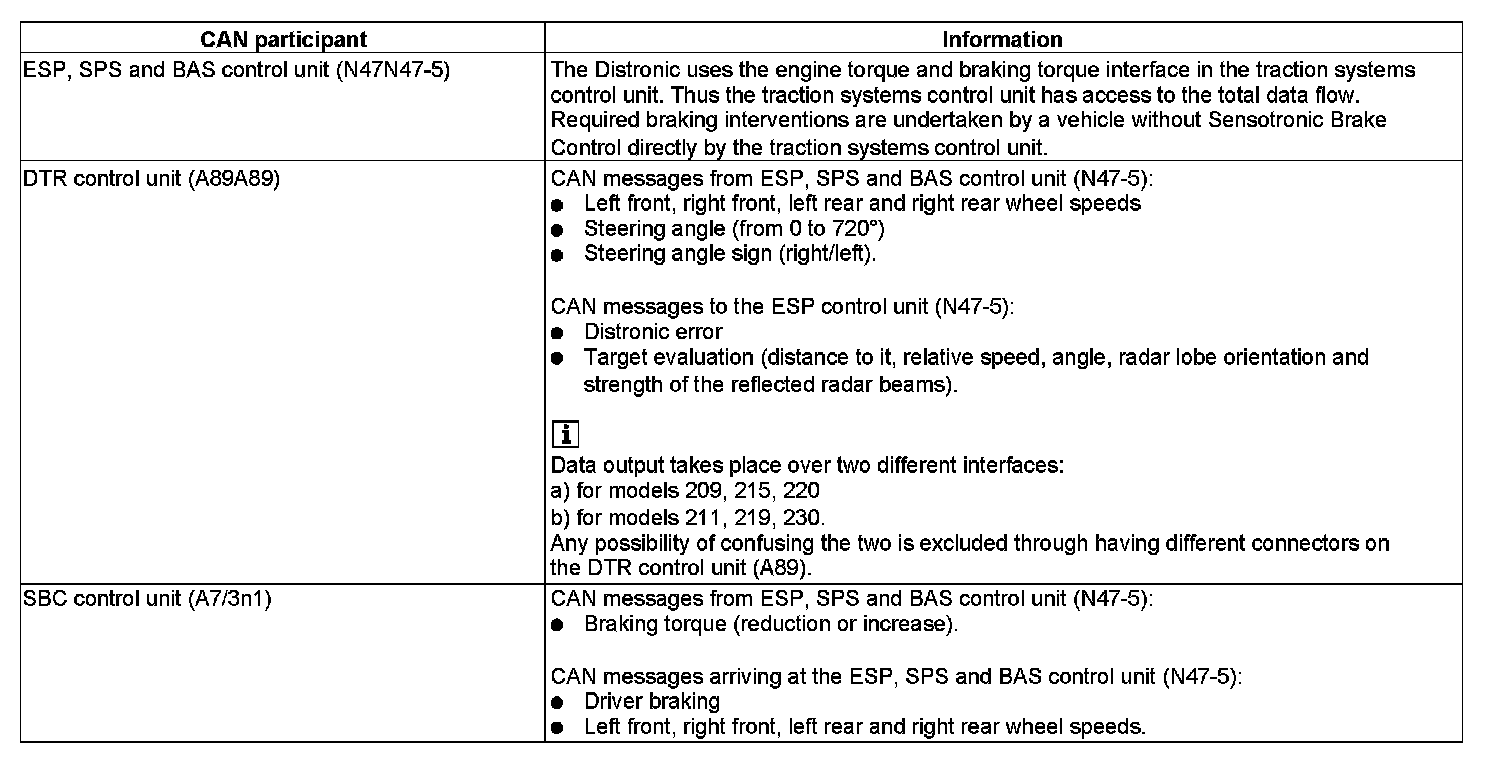

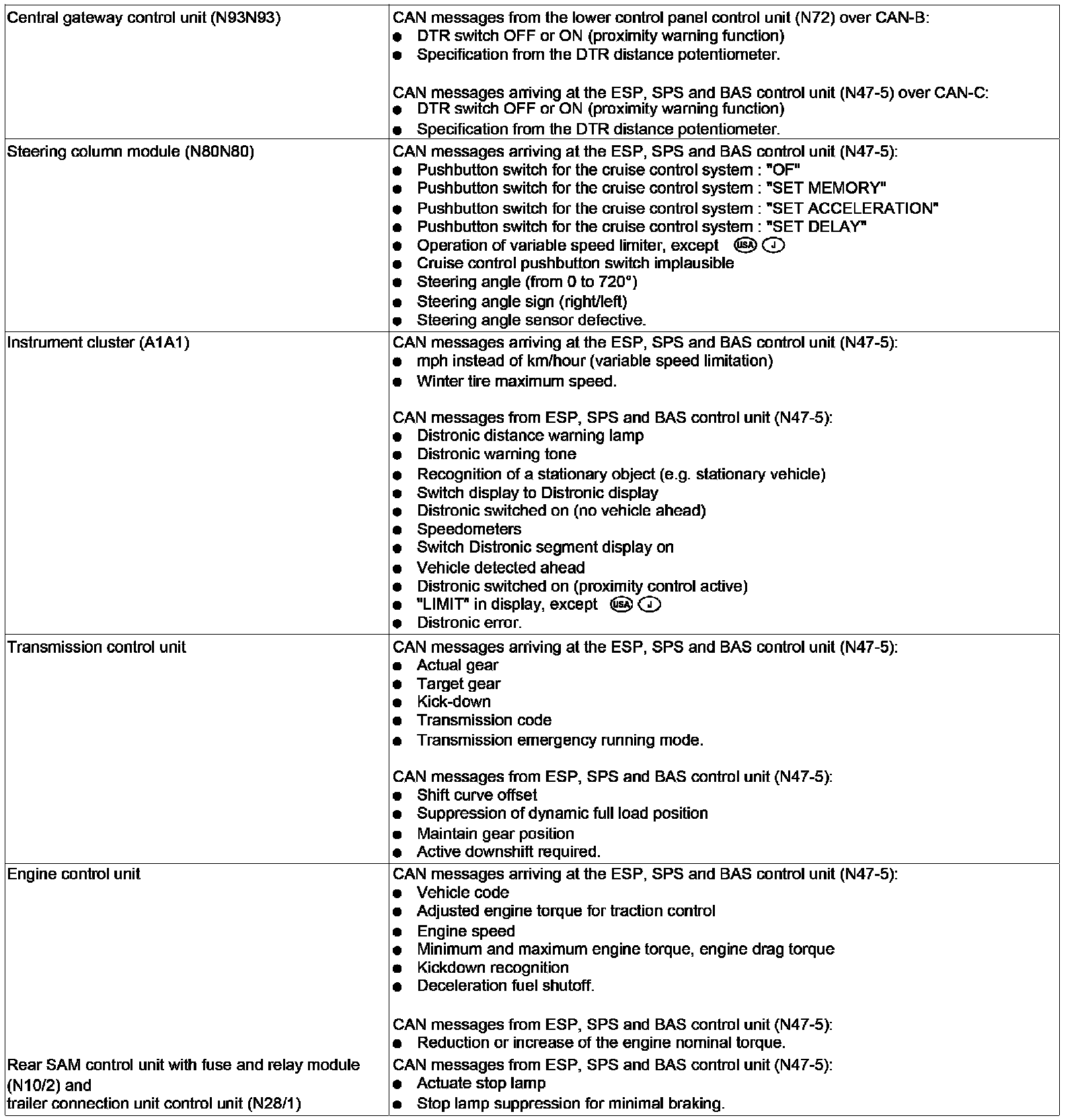

GF30.30-P-0002-02R Distronic (DTR) Input and Output Signals



GF30.30-P-0002-02R Distronic (DTR) Input And Output Signals
- with CODE (219) Distronic (DTR)
- as of 1.6.04

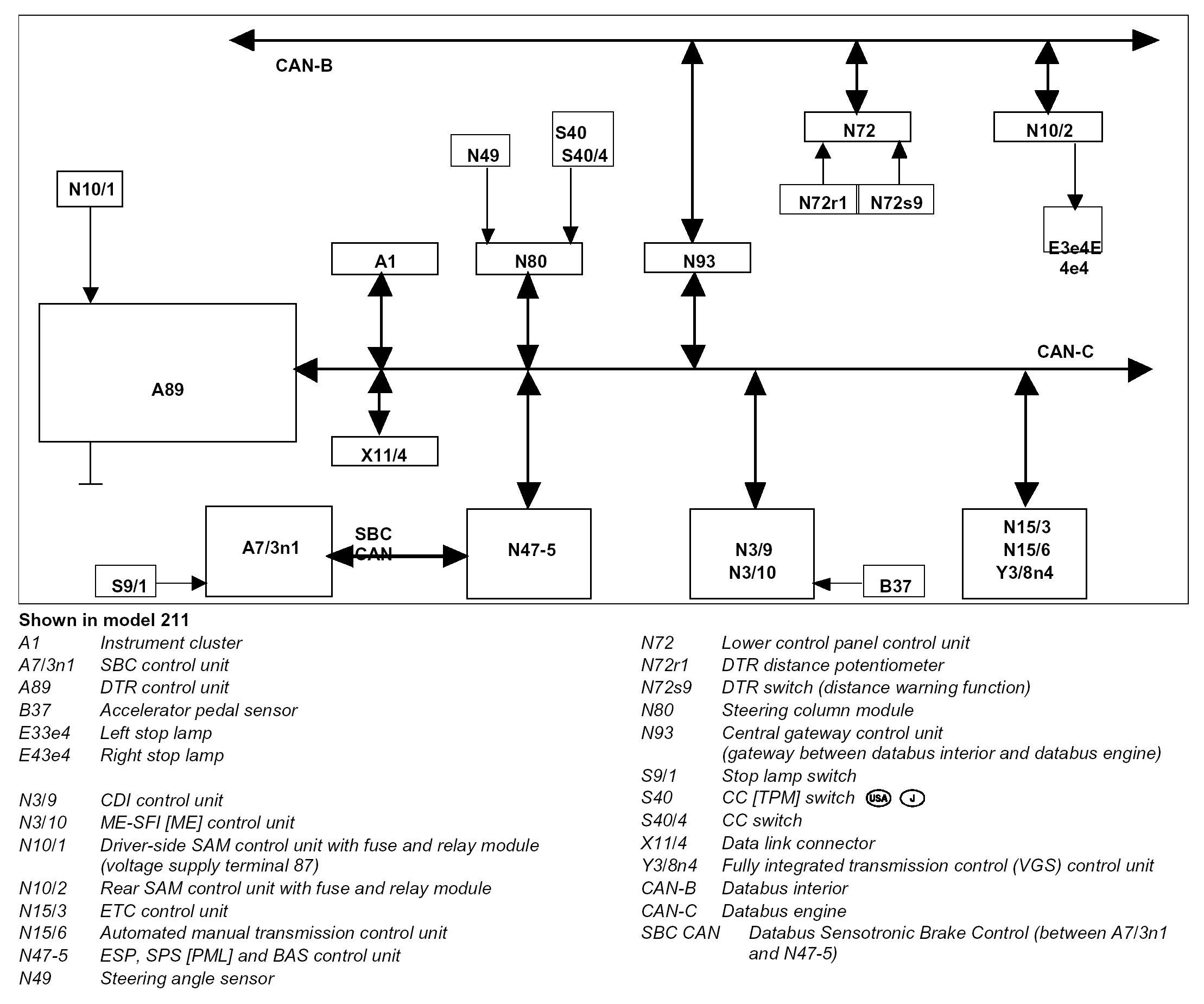

Component Identification:
