Splash Guard: Service and Repair
AR61.20-P-1105T Detach/Attach Lower Engine Compartment Paneling
- with gasoline engine

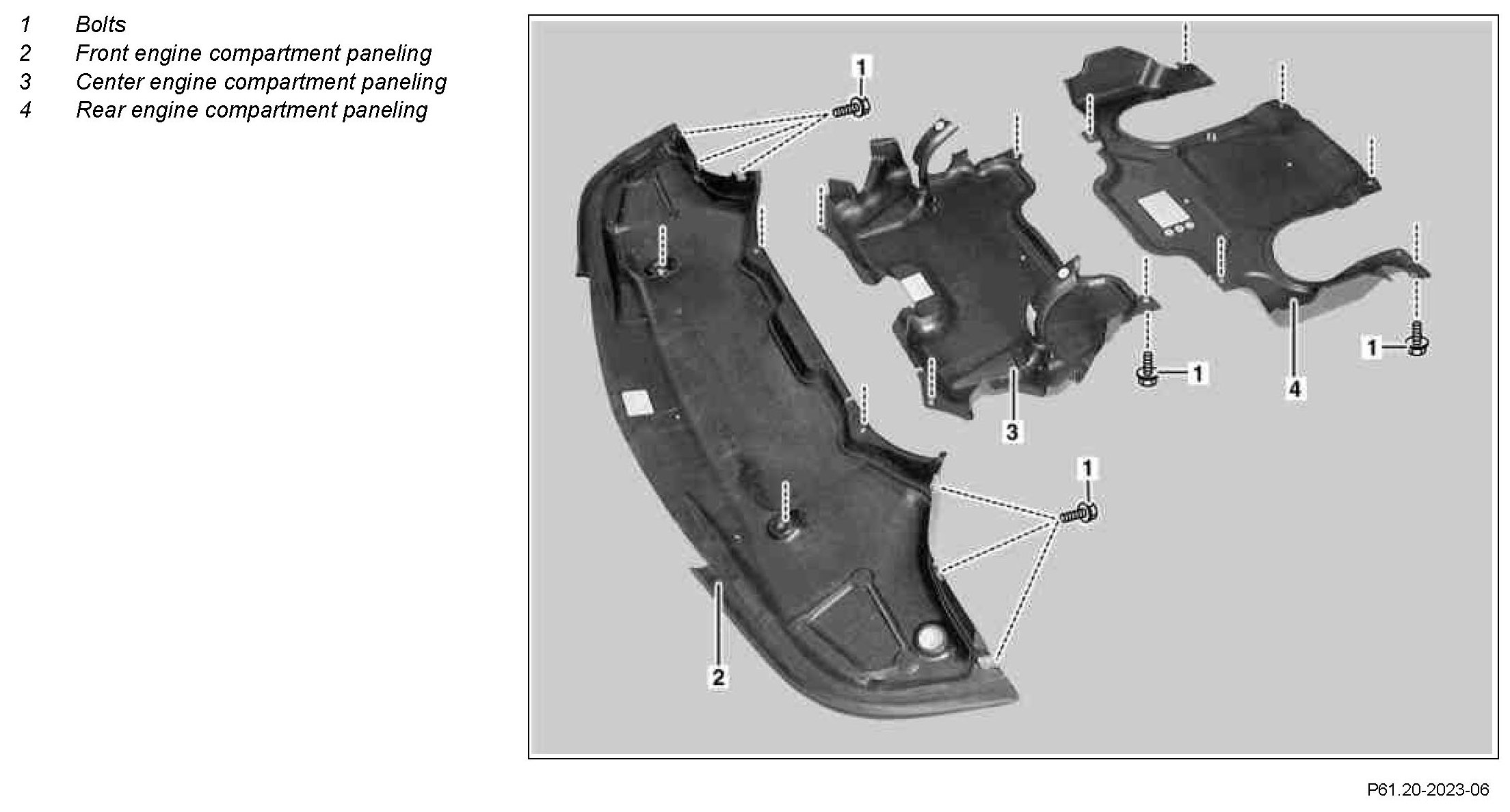

Component Identification:

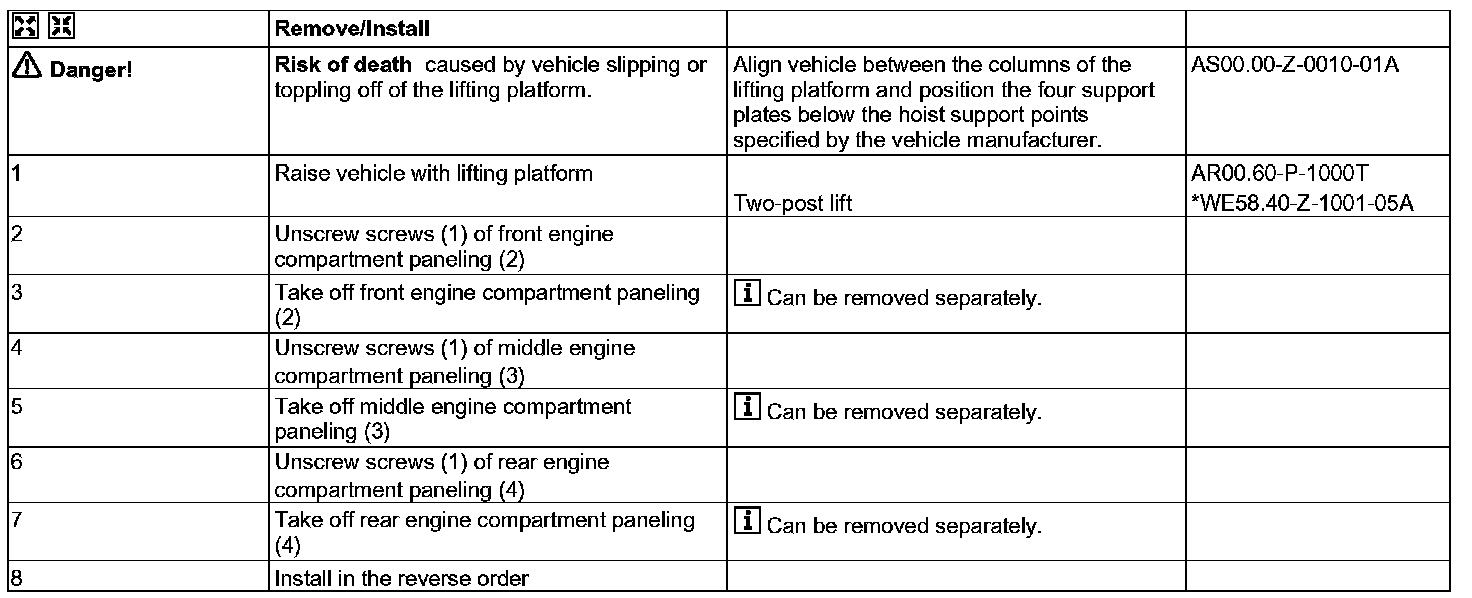

Steps 1 - 8:
Workshop Equipment:
AR61.20-P-1105T Detach/Attach Lower Engine Compartment Paneling
- with gasoline engine
