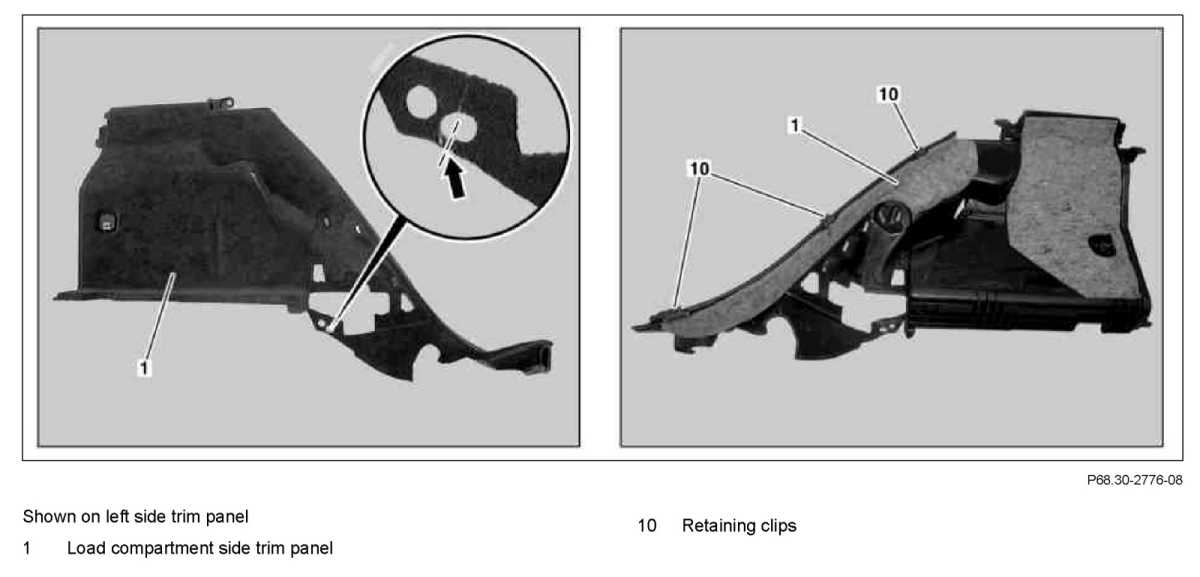

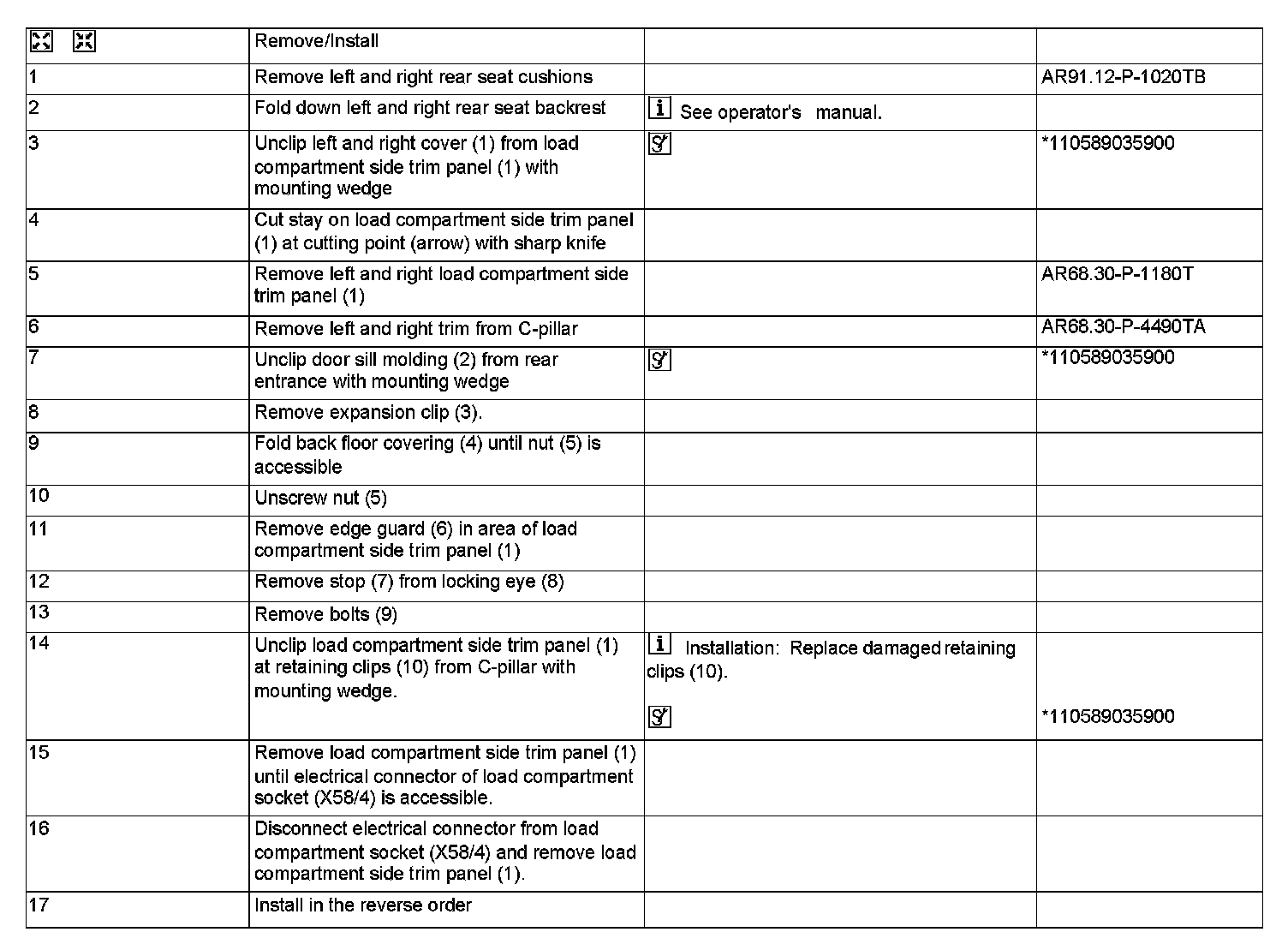

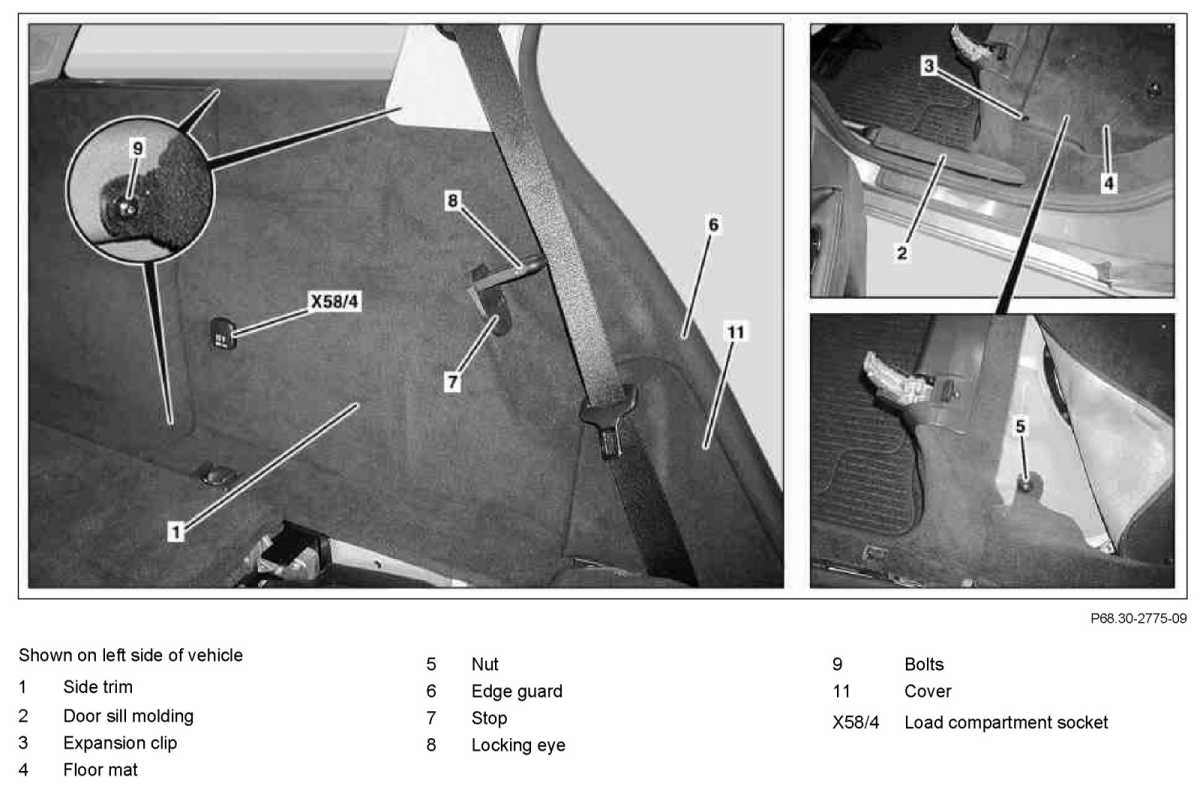

AR68.30-P-4780T Remove/Install Side Trim Panel In Rear
AR68.30-P-4780T Remove/Install Side Trim Panel In Rear
AR68.30-P-4780T Remove/Install Side
Trim Panel
In Rear
Modification Notes:
