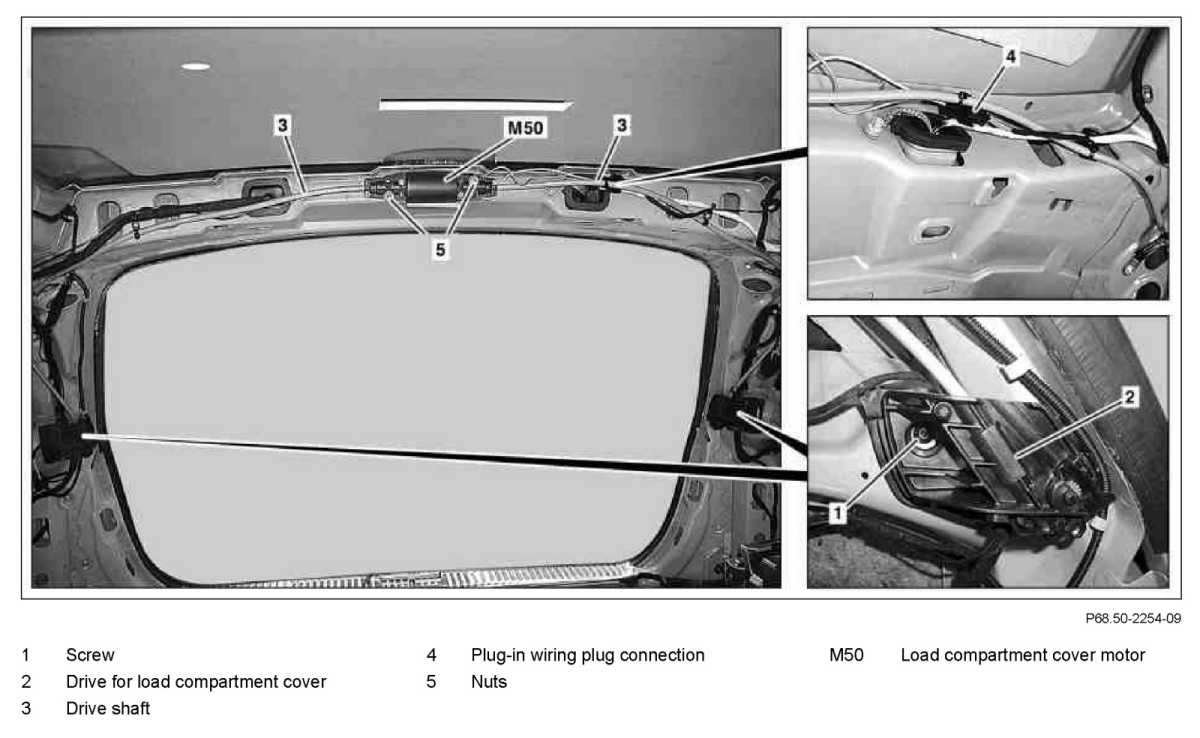

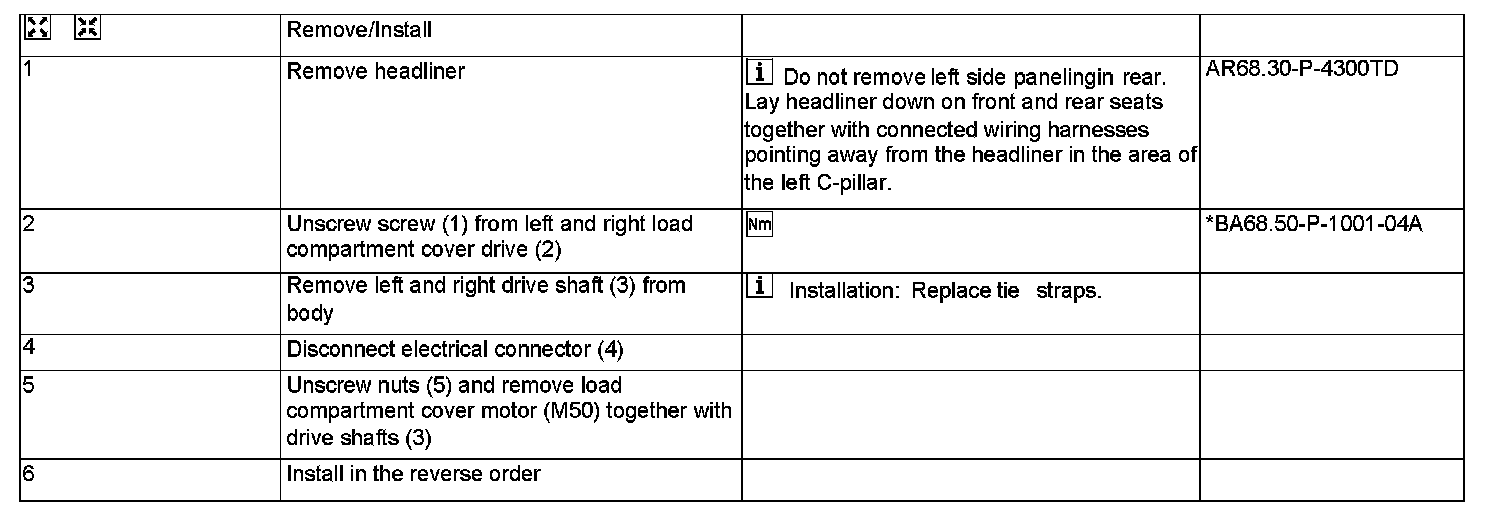

AR68.50-P-4950T Remove/Install Drive For Automatic Load Compartment Cover
AR68.50-P-4950T Remove/Install Drive For Automatic Load Compartment Cover
AR68.50-P-4950T Remove/Install Drive For Automatic Load Compartment Cover

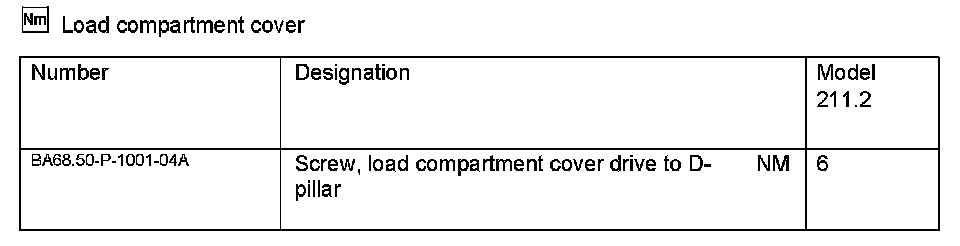

Load Compartment Cover:
