Transmission Mount: Service and Repair
AR22.10-P-1160TI Remove/install rear engine mount

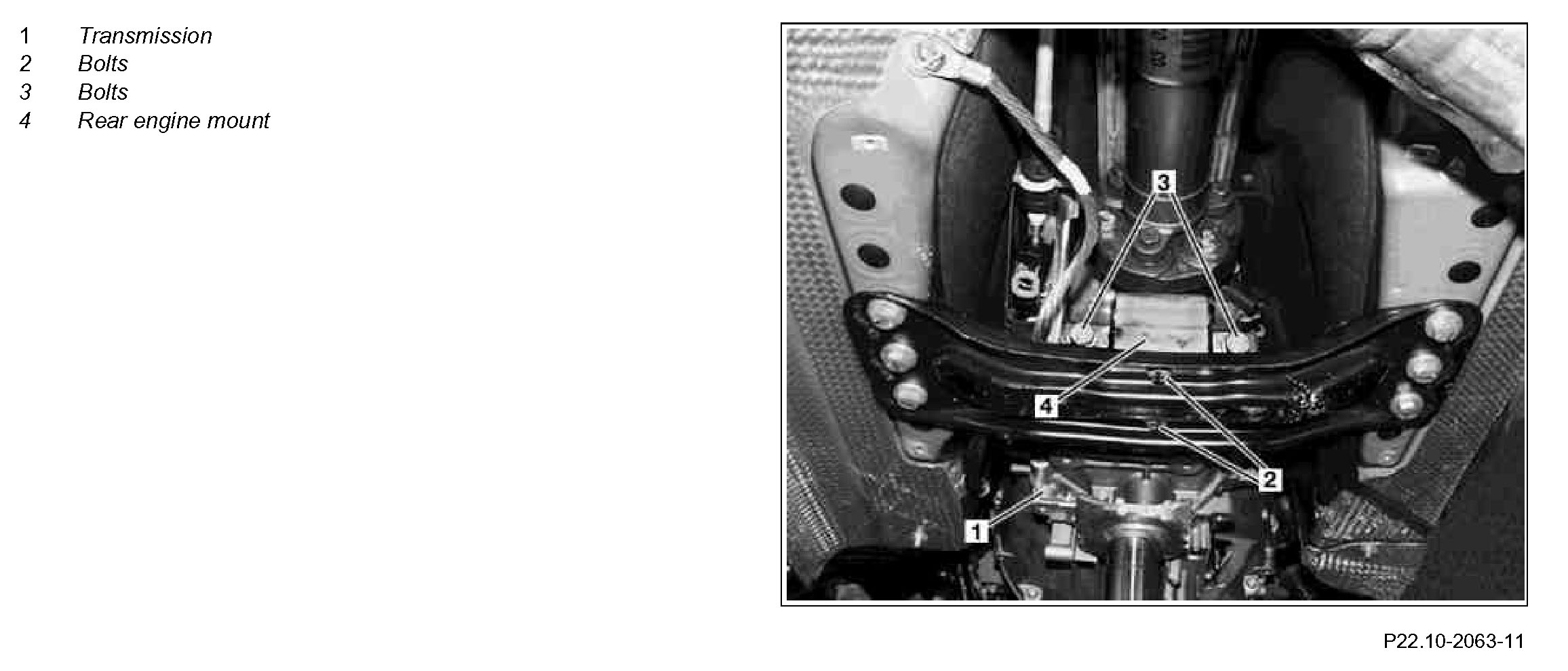

Component Identification:

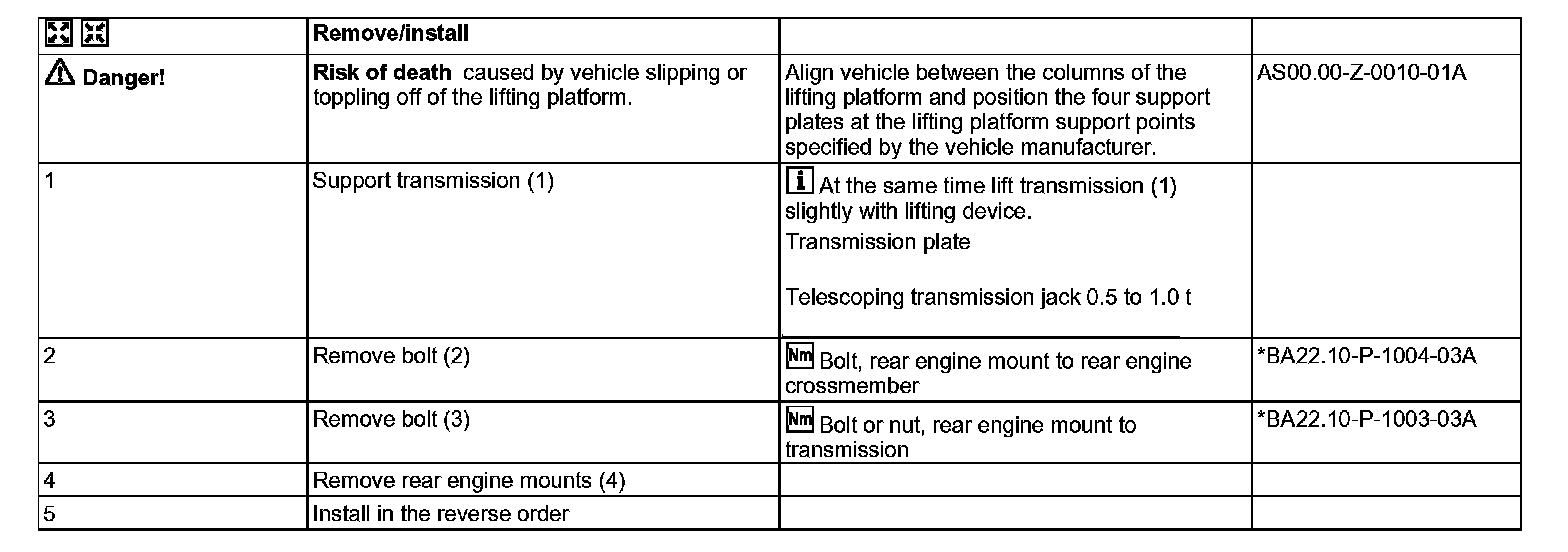

Steps 1-5:

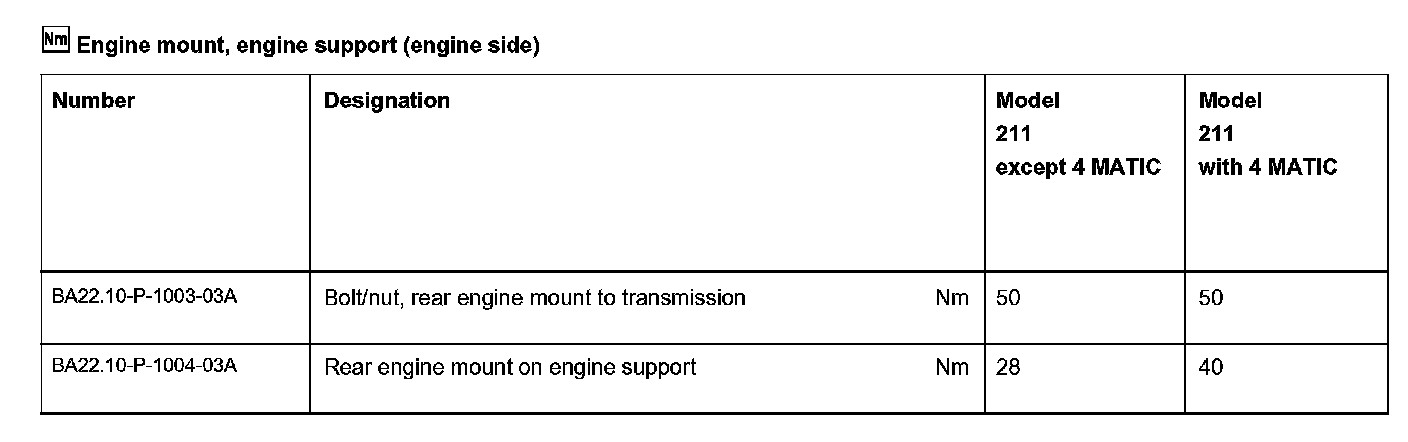

Engine mount, engine support (engine side):
